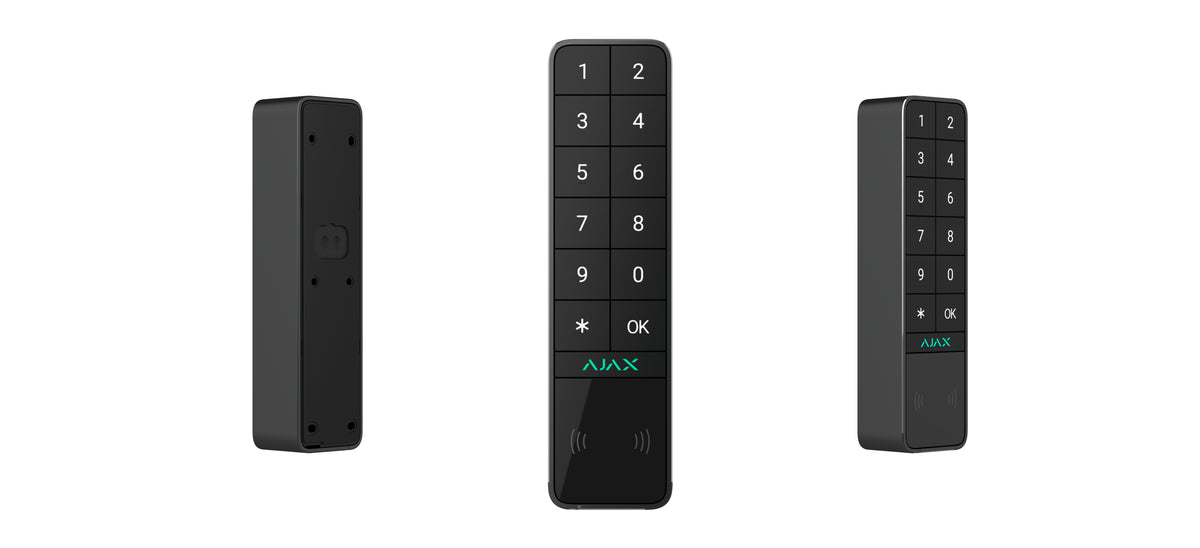

Ajax 99973.286.WH3 KeyPad Outdoor Jeweller (9NA) white
Product Details
KeyPad Outdoor Jeweller is a wireless keypad rated for outdoor use, so the system can be armed and disarmed at the gate or the external door rather than inside the protected area. It accepts codes, Pass cards, Tag key fobs and a smartphone over Bluetooth.
An IP66, IK08 enclosure handles dust, water and impact across −13 °F to 140 °F and up to 80% humidity. It holds one keypad code plus up to 50 user codes, 50 unregistered-user codes and 50 duress codes, and supports DESFire EV1/EV2/EV3 and ISO 14443-A credentials. Two pre-installed CR123A batteries last up to 2 years, or it can run from 10.5–14 V DC. Jeweller radio reaches 5,550 ft in open space.
Two operating modes — Security and Automation — switch with a long press of the OK button. Large mechanical buttons give clear feedback through gloves, and a homing bar helps users with visual impairments find the keys. It is EN 50131 Grade 2, environmental class IV. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the white finish. Also stocked in black as 99974.286.BL3, graphite as 99975.286.GP3.
Features
- Wireless keypad for outdoor and indoor use
- IP66 and IK08 enclosure, −13 °F to 140 °F, humidity up to 80%
- Authentication by codes, Pass cards, Tag key fobs and smartphone over Bluetooth
- Contactless access: DESFire EV1, EV2, EV3 | ISO 14443-A (13.56 MHz)
- Four code types: keypad, user, unregistered user and RRU codes
- Up to 50 user codes, 50 unregistered-user codes and 50 duress codes
- Two operating modes: Security and Automation, switched by a long press of OK
- Bypass mode with entry delay to confirm a security mode change
- Built-in panic button with large mechanical keys usable with gloves
- Homing bar to assist users with visual impairments
- Up to 2 years on two pre-installed CR123A batteries, or external 10.5–14 V DC
- Up to 5,550 ft radio range with an Ajax hub or range extender
- Tamper alarm on detachment attempts
- EN 50131 Grade 2, environmental class IV
- Available in white, black and graphite
Specifications
| Technical | |
|---|---|
| Keypad Functions | Switching security modes, managing automation devices, starting entry delays |
| Authentication Methods | Access codes, Tag key fobs, Pass cards, smartphone via Bluetooth |
| Access Codes | 1 keypad code | up to 50 user codes | up to 50 unregistered user codes | up to 50 duress codes per device |
| Contactless Access | DESFire EV1, EV2, EV3 | ISO 14443-A (13.56 MHz) |
| Function Button Modes | Panic, mute fire alarm, or disabled |
| Security Grade | Grade 2 (EN 50131) | Environmental class IV |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,550 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 2 × CR123A (pre-installed) |
| Operating Voltage | 2.0–3.3 V DC |
| Current Consumption | Quiescent: 115 μA | Maximum: 125 mA |
| External Power Supply | 10.5–14 V DC, up to 1 A |
| Calculated Battery Life | Up to 2 years |
| Dimensions | 6.69″ × 1.77″ × 1.22″ |
| Weight | 9.1 oz |
| Operating Temperature Range | −13 °F to 140 °F |
| Operating Humidity | Up to 80% |
| Protection Class | IP66, IK08 |
| Colors | White, Black, Graphite |
| Warranty | 24 months |
Specifications subject to change.
