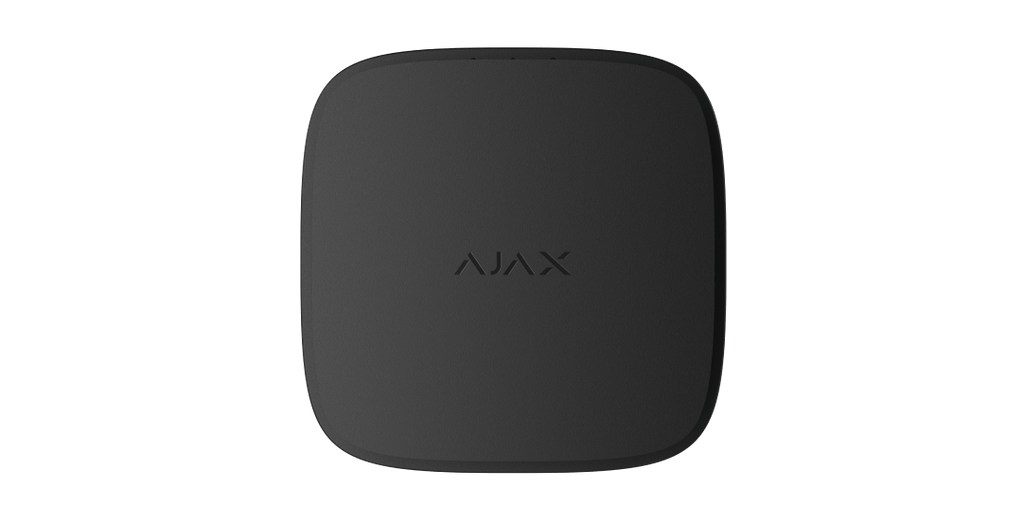

Ajax 95193.168.BL3 FireProtect 2 RB (Heat) UL (9NA) black
Product Details
FireProtect 2 RB (Heat) UL Jeweller detects fire by temperature alone, with two thermistors and no smoke chamber. That suits kitchens, garages, workshops and anywhere steam, dust or exhaust would give an optical detector false alarms.
The thermistors are mounted outside the enclosure so heat reaches them without the delay of warming the housing first, which is what makes it react quickly to burning synthetic materials. The high-temperature alarm triggers above 135 °F. With no smoke chamber the body is noticeably smaller than the smoke models. FireProtect 2 is a next-generation detector for residential fire safety. It sounds an 85 dB siren of its own and pushes a critical alert through the Ajax apps, and when interconnection is enabled every FireProtect 2 in the system sounds within 20 seconds — so an alarm in an empty back room is heard at the front of the building.
Two pre-installed CR123A batteries give up to 5 years of operation. They are replaceable, so at the end of that life an installer fits new cells rather than replacing the detector, and low-battery warnings arrive by push, sound and LED at least 30 days before discharge. The SmartBracket mounting panel fits without disassembling the detector and allows a 90° rotation adjustment, and the device pairs with the hub by QR code. Supplied in the black finish; the same detector in white is stocked as 95194.168.WH3.
Features
- Heat sensor with two thermistors mounted outside the enclosure
- High temperature alarm above 135 °F
- No smoke chamber — suited to kitchens, garages and dusty or steamy rooms
- Operates with or without pairing to an Ajax hub
- Compact body: 1.71″ × 3.39″ × 3.39″
- Interconnected alarm across all FireProtect 2 detectors in 20 seconds
- 85 dB built-in siren
- Up to 5 years on two pre-installed replaceable CR123A batteries
- Low battery warning at least 30 days before discharge
- Up to 5,500 ft Jeweller radio range with an Ajax hub or range extender
- Remote control and configuration from the Ajax apps
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel with adjustable rotation angle
- Available in white and black
Specifications
| Technical | |
|---|---|
| Sensitive Element | Heat sensor with two thermistors |
| Sensitive Element Type | For low temperature detectors (UL 521 requirements) |
| High Temperature Alarm Threshold | Above 135 °F |
| Radio Signal Range | Up to 5,500 ft (open space) |
| Communication Loss Detection | After 36 s (up to 200 s depending on settings) |
| Built-in Siren | 85 dB at 9 ft |
| Interconnected Fire Detector Alarms | All fire detectors in the system activate within one polling interval, max 20 seconds |
| LED Indication | Yellow: malfunctions | Red: fire alarms |
| Front Panel Button | Runs the detector test in normal mode; silences sound during an alarm or malfunction |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Band | 905.0–926.5 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent interference and jamming |
| Tamper Alarm | Detects attempts to detach or remove the device |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Batteries | 2 × CR123A (pre-installed), 3 V, 1,600 mAh |
| Battery Life | Up to 5 years |
| Dimensions | 1.71″ × 3.39″ × 3.39″ |
| Weight | 5.15 oz |
| Operating Temperature Range | 32 °F to 100.4 °F |
| Operating Humidity | Up to 80% |
| Protection Class | IP20 |
| Colors | White, Black |
| Complete Set | FireProtect 2 RB (Heat) UL Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide |
| Certification and Compliance | EN 54-5:2017+A1:2018 (except cl. 4.2.2.1) | UL 521:1999 Ed.7+R:26Jul2022 | CAN/ULC S530:1991 Ed.1+R:06May2021 | RED, RoHS, EMC, LVD | FCC ID: 2AX5VFIHTJ1 | IC ID: 26860-FIHTJ1 | PSTI UK Schedule 1 |
| Warranty | 24 months |
Specifications subject to change.
