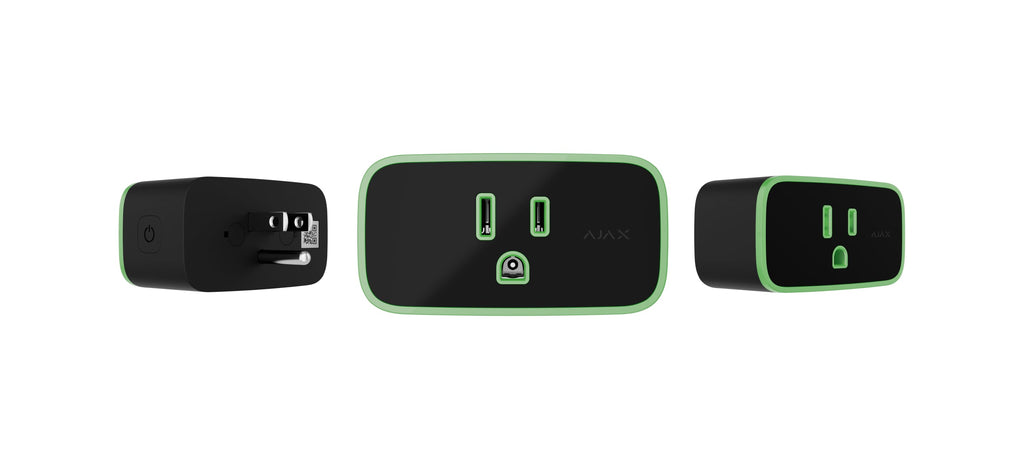

Ajax 88913.34. BL3 Socket type B (9NA) UPC black
Product Details
Socket (type B) Jeweller is a smart plug for the North American NEMA 5-15 outlet. It switches whatever is plugged into it from the Ajax apps, and reports how much power that load is drawing.
The consumption monitor is the part that earns its place. A circuit's usage becomes visible rather than guessed at, and an unexpected reading — a heater left on, a compressor cycling too often — shows up as data. Protections cut the load on overcurrent outside 1–15 A, on voltage outside 92–132 V~, and on internal temperature above 167 °F.
It runs in bistable or pulse mode, with pulse length adjustable from 1 to 255 seconds and the contact set normally open or normally closed. Automation scenarios drive it from arming and disarming, a schedule, an alarm or a button press. Rated 15 A and up to 1.8 kW, Class I with a grounding terminal. Jeweller is Ajax's own two-way radio protocol: encrypted with a dynamic key, frequency-hopping to ride out interference, and continuously polled so a lost device is flagged within 36 seconds rather than going quiet unnoticed. Supplied in the black finish; the same socket in white is stocked as 88912.34. WH3.
Features
- Smart plug for the NEMA 5-15 outlet, 120 V~ 50/60 Hz
- Maximum continuous load current 15 A, output up to 1.8 kW
- Built-in power consumption monitoring in the Ajax apps
- Overcurrent protection across a 1 to 15 A range
- Voltage protection — minimum 92 V~, maximum 132 V~
- Temperature protection above 167 °F
- Bistable and pulse operating modes
- Adjustable pulse duration from 1 to 255 seconds
- Normally open or normally closed contact state
- Automation scenarios by arming, schedule, alarm or button press
- Class I electric shock protection with grounding terminal
- Average consumption up to 1.5 W
- Jeweller range up to 3,600 ft
- Black and white finishes
Specifications
| Technical | |
|---|---|
| Device Type | Smart plug with power consumption monitoring |
| Enclosure Standard | NEMA 5-15 |
| Power Supply Voltage | 120 V~, 50/60 Hz |
| Maximum Continuous Load Current | 15 A |
| Output Power | Up to 1.8 kW |
| Average Consumption | Up to 1.5 W |
| Current Protection | 1–15 A |
| Voltage Protection | Minimum 92 V~ | maximum 132 V~ |
| Temperature Protection | More than 167 °F |
| Electric Shock Protection Class | Class I, with grounding terminal |
| Energy Consumption Monitor | Yes, reported in the Ajax apps |
| Operation Modes | Pulse | bistable |
| Contact State | Normally open | normally closed |
| Adjustable Pulse Duration | 1 to 255 s |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Bands | 905.0–926.5 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 3,600 ft |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 2.87″ × 1.5″ × 2.17″ |
| Weight | 2.96 oz |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Certification and Compliance | FCC ID 2AX5VSOCBJ1 | CAN/CSA C22.2 No. 62368-1:19 | ANSI/UL 62368-1:19 |
| Warranty | 24 months |
Specifications subject to change.
