Description
Ajax 88881.234.WH JunctionBox (118) ASP white
Product Details

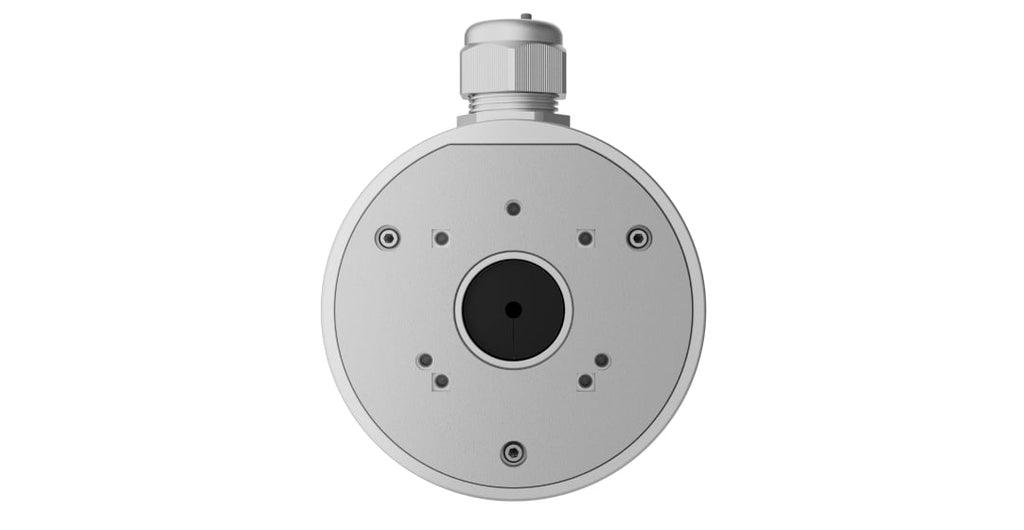

JunctionBox (118×59) is the mounting box for Ajax's wired IP cameras — BulletCam, DomeCam Mini and TurretCam. The camera sits on the box, and every cable termination happens inside it.
On an outdoor install this is what keeps the joint dry. A PG21 cable gland takes one or two cables through a sealing ring that closes against water and dust, and there is a grounding terminal for the earth bond. The alternative — a connector taped up behind a camera — is the thing that fails eighteen months later in a way nobody can diagnose from the ground.
Rated −40 °F to 140 °F, so it copes with a genuinely cold elevation. A mounting wire holds the lid while the installer works, which matters on a ladder. Supplied with an installation template. Supplied in the white finish; the same box in black is stocked as 88882.234.BL.
Features
- Mounting box for a wired security IP camera
- Fits BulletCam, DomeCam Mini and TurretCam
- PG21 cable gland for cable protection
- Sealing ring takes one or two cables, sealed against water and dust
- Grounding terminal included
- Mounting wire holds the lid during installation
- −40 °F to 140 °F operating range
- Humidity to 90%
- Installation template included
- Black and white finishes
Specifications
| Technical | |
|---|---|
| Device Type | Mounting box for a wired security IP camera |
| Compatible Ajax Devices | BulletCam | DomeCam Mini | TurretCam |
| Cable Gland | PG21 |
| Sealing Ring | Accommodates 1 or 2 cables, preventing water and dust ingress |
| Grounding Terminal | Included |
| Installation Aid | Mounting wire to secure the lid during installation |
| Physical | |
|---|---|
| Color | White |
| Dimensions | 5.98″ × 4.61″ × 2.32″ |
| Weight | 16.51 oz |
| Operating Temperature Range | −40 °F to 140 °F |
| Operating Humidity | 90% |
| Complete Set | JunctionBox (118×59), installation template, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
