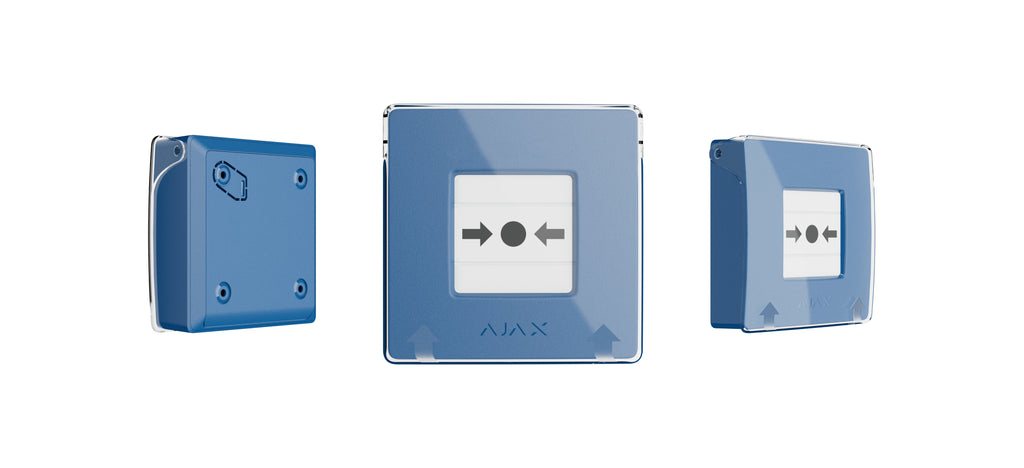

Ajax 84236.171.NC3 Manual Call Point (Blue) (9NA)
Product Details
ManualCallPoint (Blue) Jeweller is a wireless resettable call point with a programmable scenario. Pressing the frangible element fires whatever the system is configured to do — trigger an alarm, or run an automation scenario such as switching on emergency lighting, controlling ventilation, releasing electric locks, de-energizing a facility or sounding the buzzers in fire detectors.
The blue version is one of four programmable colors (blue, green, yellow and white), all functionally identical. It is not the fire call point: that is the red version, which defaults to fire alarm mode. Blue is chosen where a site needs a manual trigger that must not be mistaken for a fire alarm — which is precisely why the color matters on the wall.
The frangible element resets with the supplied key rather than needing a replacement pane, and a transparent lid shields it against accidental presses. The mechanism uses few parts by design, which is what keeps failure rates low on a device that may sit untouched for years. Two pre-installed CR123A batteries last up to 7 years at about one press per week, and Jeweller radio reaches up to 5,500 ft.
Features
- Wireless resettable call point with programmable scenario
- Operating modes: scenario trigger, fire alarm, auxiliary alarm, panic button, gas leak, malfunction, water leak
- Resettable frangible element — reset with the supplied key, no replacement pane
- Transparent lid protects against accidental presses
- Can trigger the built-in sirens of interconnected fire detectors
- Can activate intrusion sirens and send audible critical alerts
- LED status indication on activation and malfunction
- Up to 7 years on two pre-installed CR123A batteries (about one press per week)
- Up to 5,500 ft Jeweller radio range
- Tamper alarm via the SmartBracket mounting panel
- Remote control and configuration from the Ajax apps
- One of four programmable colors — blue, green, yellow and white
Specifications
| Technical | |
|---|---|
| Sensitive Element | Resettable frangible element, centrally pressed |
| Operating Modes | Scenario trigger, fire alarm, auxiliary alarm, panic button, gas leak alarm, malfunction alert, water leak alarm |
| Accidental Press Protection | Transparent lid shielding the frangible element |
| Reset | Manual, using the included key |
| LED Status Indication | Lights on activation and on detected malfunction |
| Interconnected Fire Detectors | Can trigger their built-in sirens |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Signal Range | Up to 5,500 ft |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, for interference prevention |
| Tamper Alarm | Detects detachment or removal attempts |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Batteries | 2 × CR123A (pre-installed) |
| Battery Life | Up to 7 years with typical use (about one press per week) |
| Dimensions | 4.02″ × 4.09″ × 1.53″ |
| Weight | 7.55 oz |
| Operating Temperature Range | 32 °F to 122 °F |
| Operating Humidity | Up to 80% |
| Colour | Blue |
| Certification | EU/UK CE, RoHS, RED, EMC, LVD | FCC ID: 2AX5VMCPRNA1 |
| Warranty | 24 months |
Specifications subject to change.
