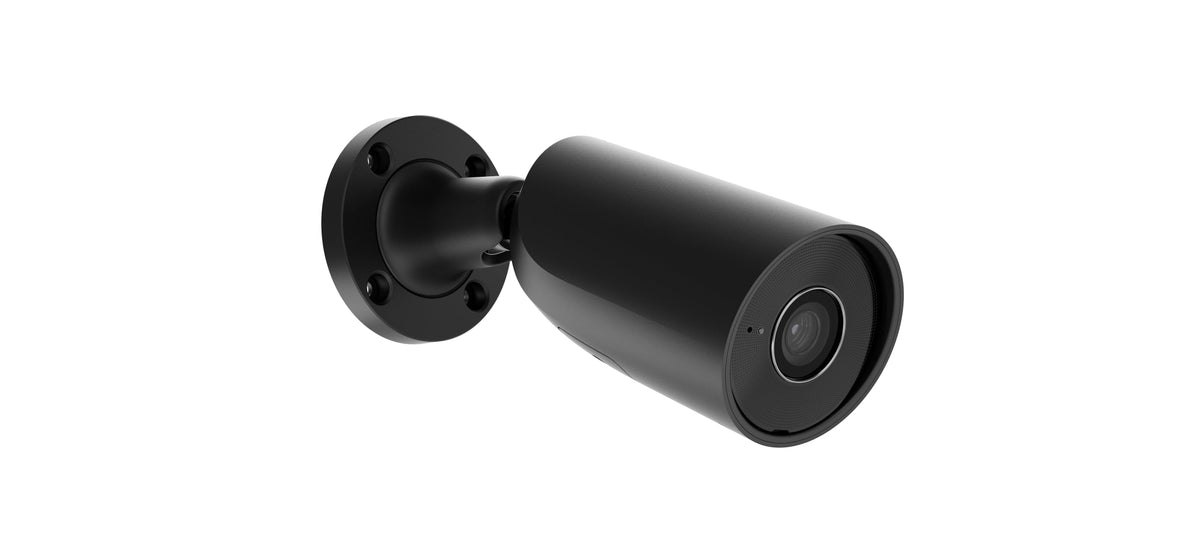

Ajax 79026.217.BL1 BulletCam (8 Mp/2.8 mm) (8EU) ASP black
Product Details
BulletCam (8 Mp/2.8 mm) is a wired AI-powered security IP camera in a bullet body with an integrated sun shield, for indoor and outdoor use. The long barrel houses a larger IR array than a dome or turret of the same generation, which is why its illumination reaches furthest of the three.
The sensor is 8 MP CMOS, 1/2.8" type behind a fixed 2.8 mm f/1.6 lens, giving a 100–110° horizontal field of view. DORI distances are detection: 295 ft, observation: 118 ft, recognition: 59 ft, identification: 29 ft. Frame rate is up to 20 fps, with resolution selectable down from the native maximum. IR illumination reaches up to 164 ft.
Authentication is passwordless over mTLS — there is no default password to be left unchanged, which is how most cheap IP cameras end up exposed. Privacy zones blank sensitive parts of the frame, access rights are set per user, and footage is encrypted in transit and on export. JetSparrow dual-stream technology keeps archive playback smooth and event filtering instant, and the recording archive is synchronised with security system events so an alarm can be reviewed as video in one step. The metal enclosure is rated IP66 and IK08 and operates from −22 °F to 140 °F. Supplied in the black finish; the same model in white is stocked as 79030.217.WH1.
Features & Benefits
- Wired AI-powered security IP camera in a bullet body
- On-camera AI recognition of people, vehicles and pets
- IR illumination up to 197 ft; smart IR up to 164 ft
- True WDR dynamic range of 120 dB
- Built-in digital microphone
- Customizable motion detection area and privacy zones
- Archive synchronization with security system events
- Customizable virtual video wall across multiple cameras
- Passwordless camera authentication over mTLS
- ONVIF Profile G and S conformance, with RTSP support
- H.265 and H.264 codec support
- microSD card support up to 256 GB, or Ajax NVR
- PoE 802.3at/af or 12 V DC power
- IP66 and IK08 metal enclosure, −22 °F to 140 °F
- Available in white and black
Specifications
| Technical | |
|---|---|
| Image Sensor | 8 MP CMOS, 1/2.8" type |
| Lens Focal Length | 2.8 mm |
| Maximum Aperture | f/1.6 |
| Lens Iris Type | Fixed |
| Lens Focal Type | Fixed |
| Signal-to-Noise Ratio | More than 52 dB |
| Smart IR Illumination | Up to 164 ft |
| Field of View | Horizontal: 100–110° | Vertical: 50–60° | Diagonal: 125–135° |
| DORI Distances | Detection: 295 ft | Observation: 118 ft | Recognition: 59 ft | Identification: 29 ft |
| Maximum IR Illumination Distance | Up to 164 ft |
| Resolution Options | 8 MP (3840 × 2160) | 5 MP (2880 × 1620) | 4 MP (2560 × 1440) | 3 MP (2304 × 1296) | 2 MP (1920 × 1080) | 0.6 MP (1024 × 576) |
| Frame Rate | Up to 20 fps |
| Image Rotation | 0°, 180° |
| Video Codec | H.265, H.264 |
| Dynamic Range | 120 dB (True WDR) |
| Storage | microSD up to 256 GB (Class V30 or faster), or Ajax NVR |
| Built-in Microphone | Yes |
| Audio Codec | G711-ULAW, G711-ALAW, G726, G722 |
| Network Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF | Conformant with ONVIF Profile G and S |
| Video Protocol | JetSparrow — peer-to-peer encrypted protocol |
| Intelligent Video Analytics | Motion detection by software image frame analysis | AI object detection: people, pets, vehicles |
| Sabotage Protection | mTLS encrypted connection | authentication via Ajax Cloud | Secure Boot against firmware spoofing | OTA signature verification |
| Physical | |
|---|---|
| PoE Standard | 802.3at/af, 36–57 V, Class 3 |
| Average Power Consumption | 12 W |
| Power Supply Unit | 12 V DC, 1 A |
| Dimensions | 7.8″ × 2.99″ × 2.99″ |
| Weight | 19.4 oz |
| Operating Temperature Range | −22 °F to 140 °F |
| Operating Humidity | Up to 90% |
| Protection Class | IP66, IK08 |
| Colors | White, Black |
| Complete Set | BulletCam, installation template, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
