Description

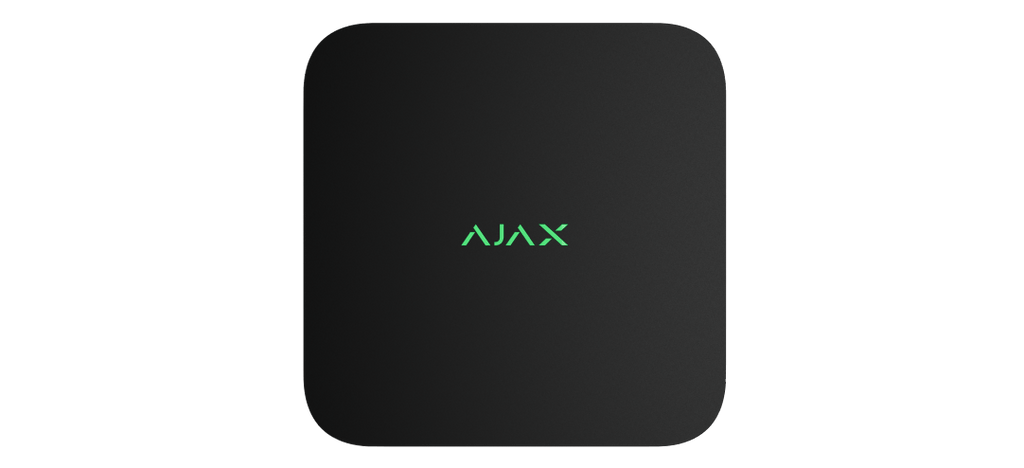

Ajax 78269.122.BL NVR (16ch) (9NA) UPC black
Product Details
NVR (16-ch) is a network video recorder that ties video surveillance into an Ajax security system, so an alarm and the footage that explains it arrive together rather than in two separate places.
It records 16 channels from Ajax cameras and third-party IP cameras over ONVIF and RTSP. One SATA bay takes a 2.5″ or 3.5″ drive up to 16 TB (not included). Power is mains 110–240 V~. JetSparrow dual-stream technology keeps archive navigation fast and the transfer encrypted, and the recording archive is synchronized with security system events, so an alarm can be reviewed as footage in one step rather than by hunting through a timeline.
Access rights are set per user, footage export carries a digital signature verified by Ajax Media Player, and account security covers two-factor authentication, session control and biometric login. The SmartBracket mounting panel installs the recorder without disassembling the enclosure and carries a tamper that reports removal. Firmware updates arrive over the air. Supplied in the black finish; the same recorder in white is stocked as 78270.122.WH.
Features
- Records from Ajax cameras and third-party IP cameras via ONVIF and RTSP
- 16-channel network video recorder
- Single SATA bay for a 2.5″ or 3.5″ drive up to 16 TB (not included)
- Mains powered: 110–240 V~, 50/60 Hz
- ONVIF Profile G and S conformance, with RTSP support
- Instant alarm verification in high resolution
- Archive synchronization with Ajax security system events
- Customizable virtual video wall across multiple cameras
- Configurable motion detection zones per camera
- Fast archive navigation with JetSparrow dual-stream technology
- Automatic network search for third-party IP cameras
- HDD status notifications in the Ajax apps
- Multi-tiered account security: 2FA, session control, biometric login
- SmartBracket mounting panel with tamper detection
- Over-the-air firmware updates
- Available in white and black
Specifications
| Technical | |
|---|---|
| NVR Models | 16-channel |
| Resolution | Up to 4K (25/30 FPS) |
| IP Cameras | Ajax cameras, ONVIF Profile conformant IP cameras, RTSP |
| Storage | 1 × drive up to 16 TB (SATA, 2.5″ or 3.5″) — HDD/SSD not included, max 7 W consumption |
| Decoding Formats | H.265, H.264 |
| Bandwidth | Up to 100 Mbps |
| Ethernet | Up to 100 Mbps |
| Bluetooth | BLE 2.400–2.4835 GHz (setup only) |
| Radio Signal Power | 2.5 mW (100 mW limit) |
| Motion Detection | By NVR or camera algorithms |
| ONVIF | Conformant with ONVIF Profile G and S |
| Tamper Alarm | Yes |
| Physical | |
|---|---|
| Main Power Supply | 110–240 V~, 50/60 Hz, 0.6 A — up to 24 W consumption |
| Clock Battery | CR2032, 3 V (clock only) |
| Dimensions | 7.60″ × 7.60″ × 1.85″ |
| Weight | 21.68 oz (without drive) |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Installation | Indoor only |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
