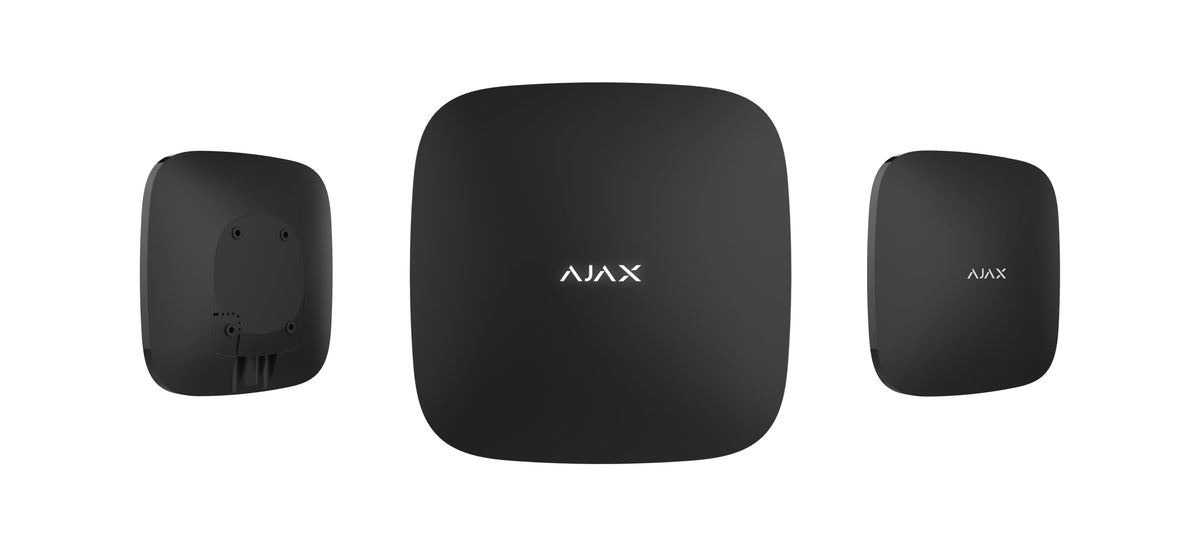

Ajax 72010.40.BL3 Hub 2 Plus (9NA/AFA) UPC with SIM black
Product Details
Hub 2 Plus Jeweller is the control panel at the centre of an Ajax system. It manages every connected device, talks to the user and the monitoring station, and supports alarm photo verification from up to 200 MotionCam detectors — delivering the first image in about 9 seconds.
Four communication channels are what set this hub apart: Ethernet, Wi-Fi (802.11 b/g/n) and two micro-SIM slots supporting 2G, 3G and LTE. The hub switches between them automatically by priority, so a cut cable or a failed provider does not take the alarm path down with it. Capacity is up to 200 wireless devices, 200 users, 25 security groups, 50 rooms and 64 automation scenarios, with Jeweller radio reaching 6,500 ft in open space.
It runs OS Malevich, Ajax's own real-time operating system, with a processor 4.5× faster than Hub 2 and eight times the flash memory, and receives over-the-air updates several times a year. A Li-ion backup battery holds the system up for around 15 hours of a blackout on SIM alone. The SmartBracket panel mounts the hub without disassembling the enclosure, and setup is plugging in power and the network, inserting the SIM and scanning a QR code. Everything after that — devices, users, groups, scenarios — is configured from the Ajax apps for iOS, Android, macOS and Windows. Supplied in the black finish. The same device in white is stocked as 72011.40.WH3.
Features
- Security system control panel with alarm photo verification
- Four communication channels: Ethernet, Wi-Fi, and two micro-SIM slots (2G/3G/LTE)
- Automatic switching between channels with prioritization
- Up to 200 wireless Ajax devices and up to 200 MotionCam detectors
- Up to 200 users, 25 security groups, 50 rooms and 64 automation scenarios
- Photo verification delivered in about 9 seconds, up to 640 × 480 px, 1–5 pictures
- Photo by alarm, by scenario, on demand and by schedule
- Up to 6,500 ft Jeweller radio range; Wings up to 5,500 ft
- Runs OS Malevich with over-the-air updates
- Li-ion backup battery: up to 15 hours on SIM only
- Tamper alarm, jamming detection and device authentication
- Automatic data transfer from an older hub in under 15 minutes
- SmartBracket mounting panel — no enclosure disassembly
- Available in white and black
Specifications
| Technical | |
|---|---|
| Wireless Ajax Devices | Up to 200 |
| Users | Up to 200 |
| Automation Scenarios | Up to 64 |
| Security Groups | Up to 25 |
| Rooms | Up to 50 |
| Ethernet | 1 × 8P8C socket, up to 100 Mbps |
| Cellular | 2 × micro-SIM slots (2G/3G/LTE) |
| Wi-Fi | 802.11 b/g/n, up to 600 Mbps |
| Channel Switching | Automatic, with prioritization |
| Photo Verification | Photo by alarm, by scenario, on demand and by schedule |
| Photo Delivery Time | Up to 9 s |
| Photo Resolution | Up to 640 × 480 px, 1 to 5 pictures in series |
| Polling Interval | 12 to 300 s |
| Wings Communication Technology | Proprietary wireless technology for photo verification, range up to 5,500 ft |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 6,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Main Power Supply | 110–240 V~, 50/60 Hz, up to 10 W consumption |
| Backup Battery | Li-ion Polymer 3.7 V, 3 Ah — up to 15 hours on SIM only |
| Alternative Power | 6 V or 12–24 V PSU options available |
| Dimensions | 6.42″ × 6.42″ × 1.42″ |
| Weight | 12.94 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Colors | White, Black |
| Complete Set | Hub unit, SmartBracket mounting panel, power cable, Ethernet cable, installation kit, SIM card, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
