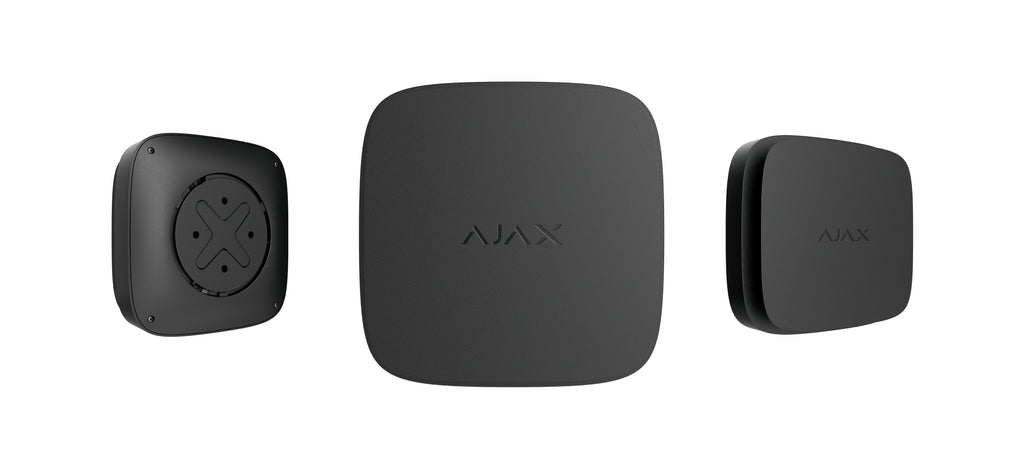

Ajax 68695.136.WH3 FireProtect 2 RB (Heat/Smoke) UL (9NA) white
Product Details
FireProtect 2 RB (Heat/Smoke) UL Jeweller combines a dual-spectrum optical smoke sensor with a heat sensor. The dual-spectrum optics tell smoke from steam and dust instantly, and the patented smoke chamber is sealed against insects and needs no regular cleaning — which is what removes the maintenance visit that conventional optical detectors require.
Two thermistors sit outside the enclosure so a fast, smokeless fire in synthetic materials is caught without the delay of heat reaching an internal sensor. The high-temperature alarm triggers above 135 °F. FireProtect 2 is a next-generation detector for residential fire safety. It sounds an 85 dB siren of its own and pushes a critical alert through the Ajax apps, and when interconnection is enabled every FireProtect 2 in the system sounds within 20 seconds — so an alarm in an empty back room is heard at the front of the building.
Two pre-installed CR123A batteries give up to 5 years of operation. They are replaceable, so at the end of that life an installer fits new cells rather than replacing the detector, and low-battery warnings arrive by push, sound and LED at least 30 days before discharge. The SmartBracket mounting panel fits without disassembling the detector and allows a 90° rotation adjustment, and the device pairs with the hub by QR code. Supplied in the white finish; the same detector in black is stocked as 68696.136.BL3.
Features
- Dual-spectrum optical smoke sensor
- Dustproof smoke chamber, impenetrable to insects, no cleaning required
- Heat sensor with two thermistors mounted outside the enclosure
- High temperature alarm above 135 °F
- Self-test diagnostics of the smoke chamber
- Interconnected alarm across all FireProtect 2 detectors in 20 seconds
- 85 dB built-in siren
- Up to 5 years on two pre-installed replaceable CR123A batteries
- Low battery warning at least 30 days before discharge
- Up to 5,500 ft Jeweller radio range with an Ajax hub or range extender
- Remote control and configuration from the Ajax apps
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel with adjustable rotation angle
- Available in white and black
Specifications
| Technical | |
|---|---|
| Smoke Detection Sensitive Element | Double-spectrum optical sensor in a patented smoke chamber |
| Heat Detection Sensitive Element | Low temperature detector (UL 521 requirements) |
| High Temperature Alarm Threshold | Above 135 °F |
| Radio Signal Range | Up to 5,550 ft (open space) |
| Built-in Siren | 85 dB at 9 ft |
| Interconnected Fire Detector Alarms | All fire detectors in the system activate within one polling interval, max 20 seconds |
| LED Indication | Yellow: malfunctions | Red: fire alarms |
| Front Panel Button | Runs the detector test in normal mode; silences sound during an alarm or malfunction |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Band | 905.0–926.5 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent interference and jamming |
| Tamper Alarm | Detects attempts to detach or remove the device |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Batteries | 2 × CR123A (pre-installed), 3 V, 1,600 mAh |
| Battery Life | Up to 5 years |
| Dimensions | 4.88″ × 4.88″ × 1.77″ |
| Weight | 9.59 oz |
| Operating Temperature Range | 32 °F to 100.4 °F |
| Operating Humidity | Up to 80% |
| Protection Class | IP20 |
| Colors | White, Black |
| Certification and Compliance | UL 268:2023 Ed.8 | CAN/ULC S529:2023 Ed.5 | ANSI/UL 62368-1 Ed.3 | CSA C22.2 No. 62368-1:19 Ed.3 | PSTI UK Schedule 1 | FCC ID: 2AX5VFISMHTJ1UL | IC ID: 26860-FISMHTJ1UL |
| Warranty | 24 months |
Specifications subject to change.
