Product Details

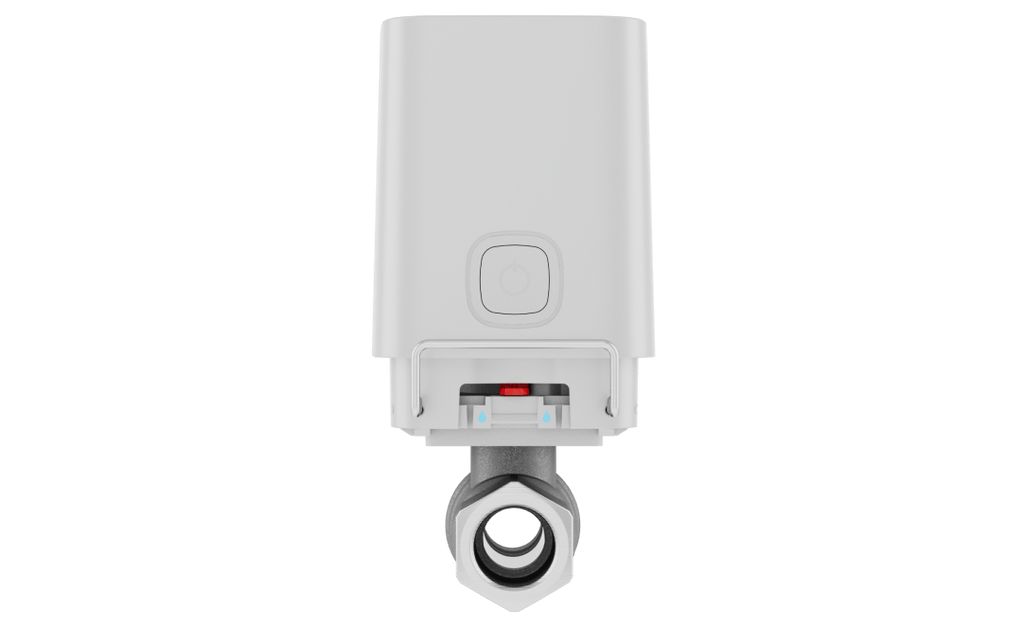

Ajax WaterStop 1" (DN 25) Jeweller is a wireless shutoff valve with an electric actuator that closes the water supply on command or automatically. Paired with LeaksProtect or a third-party leak detector it shuts the water within about 7 seconds of a leak being found — which is the difference between a wet floor and a flooded building.

The actuator delivers up to 8.5 N·m, enough to close a valve that has stiffened from disuse without damaging it, and works at up to 145 psi. A scenario can exercise the valve periodically to stop it sticking in the first place. Four mounting positions suit different pipe runs, and a manual emergency lever on the ISO 5211 platform closes it by hand if needed.

Four pre-installed CR123A batteries give up to 3 years, or it can run from a 7.5–14 V DC supply (9–12 V DC at 2 A recommended). The electrical section is IP66-rated against dust and humidity, and an anti-sabotage locker resists dismantling of the actuator. Jeweller radio reaches up to 3,600 ft in open space. Supplied in the white finish; the same valve in black is stocked as 65148.154.BL3.

Features

• 1" (DN 25) brass ball valve with electric actuator
• Wireless shutoff valve with electric actuator for remote water control
• Shuts the water supply in about 7 seconds
• Triggered automatically by LeaksProtect or third-party leak detectors
• Up to 8.5 N·m torque — closes stiff valves without damage
• Operating pressure up to 145 psi
• Four mounting positions for different pipe layouts
• Manual emergency lever on an ISO 5211 platform
• Automatic valve sticking prevention via scenarios
• Works with hot and cold water and non-aggressive liquids
• Valve temperature range −4 °F to 350 °F
• IP66-rated electrical section
• Anti-sabotage locker against actuator removal
• Up to 3 years on four pre-installed CR123A batteries
• Optional external supply: 7.5–14 V DC, from 1.8 A
• Up to 3,600 ft Jeweller radio range
• Available in white and black

Specifications

Technical
Valve Type and Size	1" (DN 25) RuB valve
Valve Material	Brass
Connection	NPT taper (ANSI B.1.20.1), female-to-female threads
Valve Temperature Range	−4 °F to 350 °F
Operating Fluid	Hot and cold water, non-aggressive liquids
Mounting	ISO 5211 compliant platform with manual emergency lever
Actuator Torque	Up to 8.5 N·m
Operating Pressure	Up to 145 psi
Shut-off Speed	Up to 7 seconds (longer if the valve is clogged)
Control	Remote via Ajax apps, and a manual button on the enclosure
Communication Technology	Jeweller — proprietary two-way wireless protocol
Frequency Bands	866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz
Maximum Effective Radiated Power (ERP)	Up to 20 mW
Radio Signal Modulation	GFSK
Radio Communication Range	Up to 3,600 ft (without obstacles)
Encrypted Communication	Block encryption with floating key
Frequency Hopping	Yes, to prevent interference
Sabotage Protection	Device spoofing prevention, tampering alarm, optional anti-sabotage locker
Communication Loss Detection	After 36 s

Physical
Assembled Dimensions	4.11″ × 6.26″ × 2.76″
Valve Dimensions	3.54″ × 1.61″
Assembled Weight	47.13 oz
Valve Weight	28.22 oz
Power Supply	4 × CR123A batteries (pre-installed) — up to 3 years
Optional External Supply	7.5–14 V DC, from 1.8 A (9–12 V DC at 2 A recommended)
Electric Actuator Dimensions	3.66″ × 2.76″ × 3.74″
Electric Actuator Weight	18.9 oz
Operating Temperature Range	32 °F to 140 °F
Operating Humidity	Up to 95%
Protection Class	IP66
Installation	Indoor only
Colors	White, Black
Warranty	24 months

Specifications subject to change.
