Description
Ajax 62964.132.BL DIN Holder UPC black
Product Details

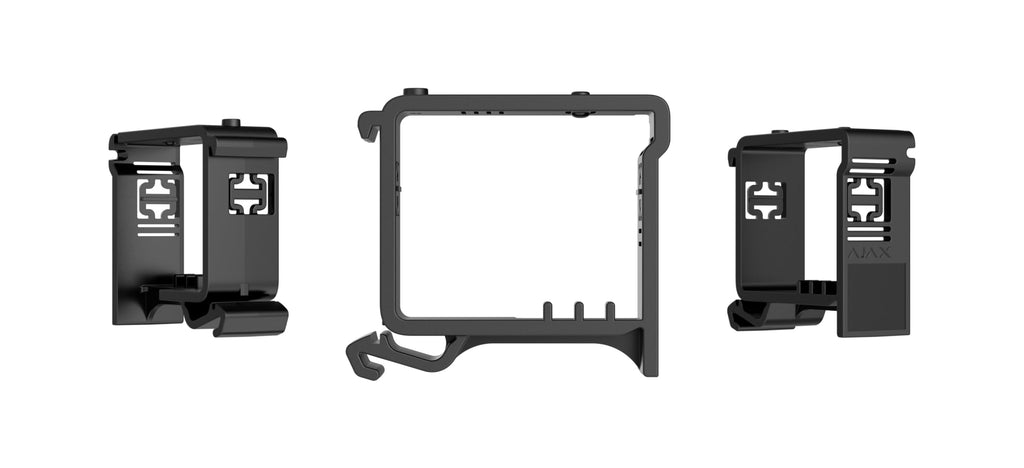

The DIN Holder is a polycarbonate bracket that clips an Ajax Relay or WallSwitch onto a standard 35 mm DIN rail. It fits by side hinges on the casing and needs no tools.
It matters for one reason: it makes the difference between a relay tucked loose in a consumer unit and a relay mounted the way an electrician and an inspector expect to find it. A module on a rail is labelled, identifiable and serviceable; a module floating in the enclosure is none of those things.
Rated −13 °F to 149 °F, so it is comfortable in a warm distribution board. Supplied with a sticker set for labelling the circuit.
Features
- Bracket to fix an Ajax Relay or WallSwitch on a DIN rail
- Fits a standard 35 mm DIN rail
- Mounts by side hinges on the casing — no tools required
- Polycarbonate construction
- Sticker set included for labelling
- Puts modules in a distribution board the way an inspector expects
- −13 °F to 149 °F, humidity to 75%
- Black
Specifications
| Technical | |
|---|---|
| Device Type | Bracket to fix a relay on a DIN rail |
| Compatible Ajax Devices | Relay | WallSwitch |
| DIN Rail | Standard 35 mm |
| Mounting | Side hinges on the casing — no tools required |
| Material | Polycarbonate |
| Physical | |
|---|---|
| Dimensions | 2.05″ × 1.61″ × 0.71″ |
| Weight | 0.32 oz |
| Operating Temperature Range | −13 °F to 149 °F |
| Operating Humidity | Up to 75% |
| Color | Black |
| Complete Set | DIN Holder, sticker set, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
