Ajax 59580.94.NC 12-24V PSU for Hub 2/Hub 2 Plus/ReX 2 UPC
Product Details

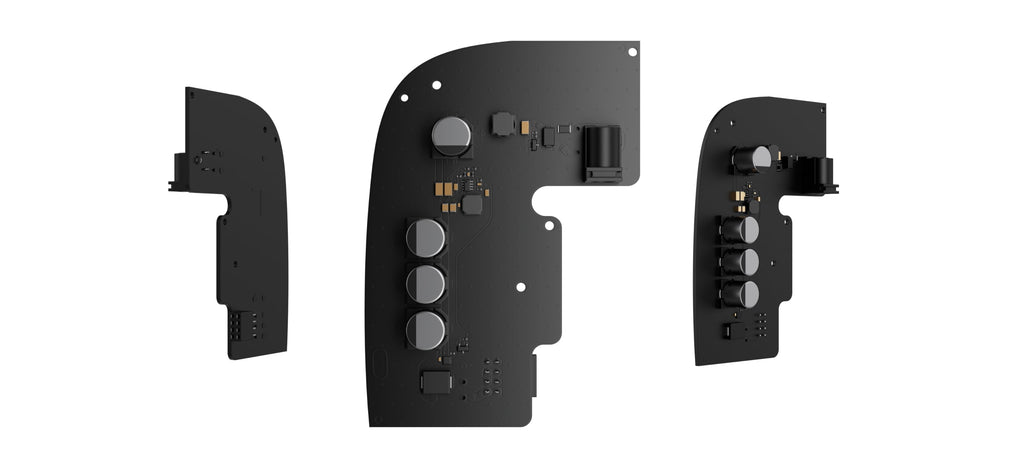

The 12-24V PSU (type A) is a replacement power board that runs an Ajax hub or range extender from a 12 or 24 V supply instead of mains. Its input spans 8 to 32 V, and it delivers a regulated 4.8 V at up to 1.5 A.
That input range is what makes it the one to fit on vehicles, boats, and any site already wired for low-voltage DC — a 12 V leisure battery sagging to 11 V or a 24 V truck system peaking at 30 V both stay inside it. The board goes inside the enclosure in place of the bundled mains supply, so the hub looks unchanged from outside.
Note the type: this is the type A board, for Hub 2, Hub 2 Plus and ReX 2. The type B board of the same name is for the earlier Hub, Hub Plus and ReX, and the two are not interchangeable. For an input below 8 V — a portable battery pack — the 6V PSU (type A) is the right board instead.
Features
- Replacement power board for Hub 2, Hub 2 Plus and ReX 2
- Wide input 8–32 V⎓ covers both 12 V and 24 V systems
- Regulated output 4.8 V⎓ ±5% at up to 1.5 A
- Input current up to 1 A
- Fits inside the hub or range extender enclosure
- Replaces the bundled mains power supply board
- For vehicles, boats and low-voltage DC sites
- Type A — for Hub 2 generation, not the earlier Hub / Hub Plus / ReX
- Terminal adapter included
- Security Grade 2, Environmental Class II
Specifications
| Technical | |
|---|---|
| Device Type | Power supply unit for the device operation on a low-voltage power source |
| Type | Type A — for Hub 2, Hub 2 Plus and ReX 2 |
| Input Voltage Range | 8–32 V⎓ |
| Input Current | Up to 1 A |
| Output Voltage | 4.8 V⎓ ± 5% |
| Output Current | Up to 1.5 A |
| Installation | Into the hub or range extender enclosure, replacing the bundled power supply board |
| Not Compatible With | Hub, Hub Plus and ReX — those take the 12-24V PSU (type B) |
| Physical | |
|---|---|
| Dimensions | 3.9″ × 2.8″ × 0.67″ |
| Weight | 0.917 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Complete Set | 12-24V PSU (type A), terminal adapter, quick start guide |
| Certification and Compliance | EN 50131 Security Grade 2, Environmental Class II | EN IEC 63000:2018 (RoHS) | EN 55032, EN 55035 (EMC) |
| Warranty | 24 months |
Specifications subject to change.
