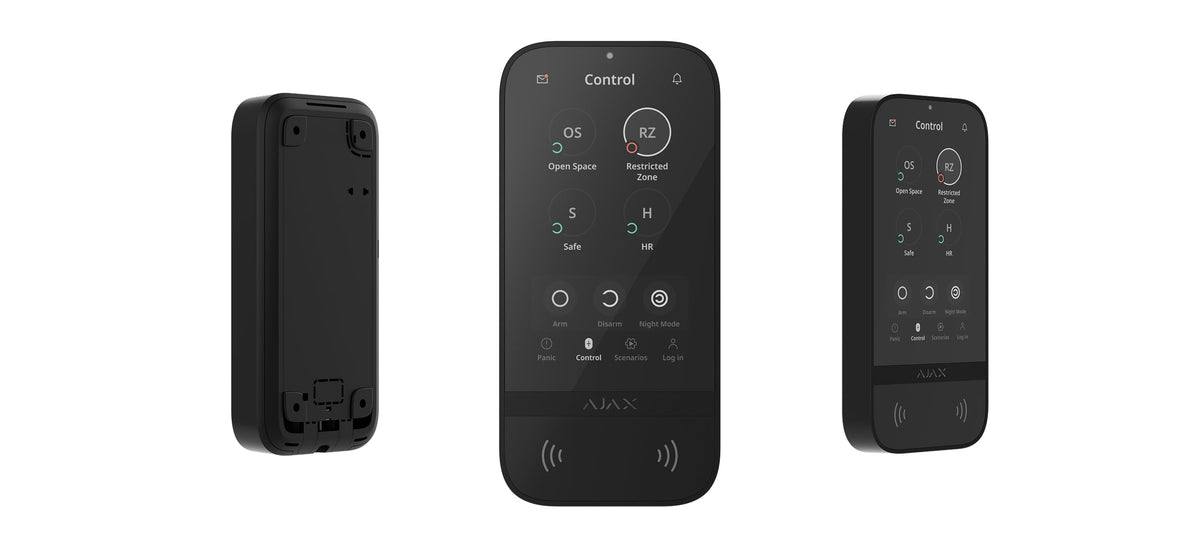

Ajax 58472.148.BL3 KeyPad TouchScreen (9NA) UPC black
Product Details
KeyPad TouchScreen Jeweller is a wireless keypad built around a 5-inch IPS touch display. Alongside codes it accepts Pass cards, Tag key fobs and a smartphone over Bluetooth, and the screen shows the last events without anyone having to open the app.
The 480 × 854 px capacitive display runs in dark or light theme with automatic or manual brightness and a 30,000-hour backlight. It holds up to 200 personal access codes, a keypad code, up to 200 duress codes and up to 99 unregistered-user codes, supports DESFire EV1/EV2 and ISO14443-A credentials, and acknowledges up to 100 events. Six pre-installed AA lithium batteries last up to 1.5 years, or it can run from 12 V DC.
Three panic buttons — alarm, fire and auxiliary — sit on the screen, and an automation tab controls switches, relays and sockets. Sound notifications cover delays, door openings and alarms. Three incorrect attempts in a minute lock the keypad, and a holding screw secures it to the SmartBracket. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 58473.148.WH3.
Features
- Wireless keypad with a 5-inch IPS touch display (480 × 854 px)
- Dark and light interface themes, automatic or manual brightness
- Event log readable directly from the keypad screen
- Control by codes, Pass cards, Tag key fobs and smartphone over Bluetooth
- Contactless access: DESFire EV1, EV2 and ISO14443-A (13.56 MHz)
- Up to 200 personal access codes plus 1 keypad code
- Up to 200 duress codes and up to 99 unregistered-user codes
- Three panic buttons: alarm, fire and auxiliary
- Automation tab for switches, relays and sockets
- Sound notifications for delays, door openings and alarms
- Auto-lock after 3 incorrect attempts within 1 minute
- Up to 1.5 years on six pre-installed AA lithium batteries, or external 12 V DC
- Up to 5,500 ft radio range with an Ajax hub or range extender
- Holding screw included for SmartBracket security
- Security Grade 2, available in white and black
Specifications
| Technical | |
|---|---|
| Display Diagonal | 5″ |
| Matrix Type | IPS |
| Resolution | 480 × 854 px |
| Sensor | Capacitive |
| Brightness Settings | Automatic, manual |
| Backlight Lifetime | 30,000 hours |
| User Interface | Dark and light modes |
| Panic Buttons | Panic, fire, auxiliary help |
| Control Methods | Codes, Tag key fobs, Pass cards, smartphone (Bluetooth) |
| Contactless Access | DESFire EV1, EV2 | ISO14443-A (13.56 MHz) |
| Access Codes | Up to 200 personal codes, 1 keypad code |
| Duress Codes | Up to 200 personal codes, 1 keypad code |
| Codes for Unregistered People | Up to 99 personal codes |
| Event Acknowledgment | Up to 100 events |
| ACE Type | Type B |
| Unauthorized Access Auto-Lock | After 3 incorrect attempts within 1 minute |
| Holding Screw | Included for SmartBracket security |
| Wings Communication Technology | Proprietary wireless technology for large data packets, with block encryption |
| Security Grade | Grade 2 |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 6 × AA lithium (pre-installed), type C |
| External Power Supply | 10.5–14 V DC, up to 0.4 A | Nominal: 12 V DC |
| Current Consumption | Quiescent: 46 μA | Maximum: 1.5 mA |
| Full Battery Capacity | 2,650 mAh |
| Low / End-of-Life Battery Voltage | 6.6 V DC / 4.92 V DC |
| Calculated Battery Life | Up to 1.5 years |
| Dimensions | 6.77″ × 3.23″ × 1.02″ |
| Weight | 11.61 oz (white) | 11.46 oz (black) |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
