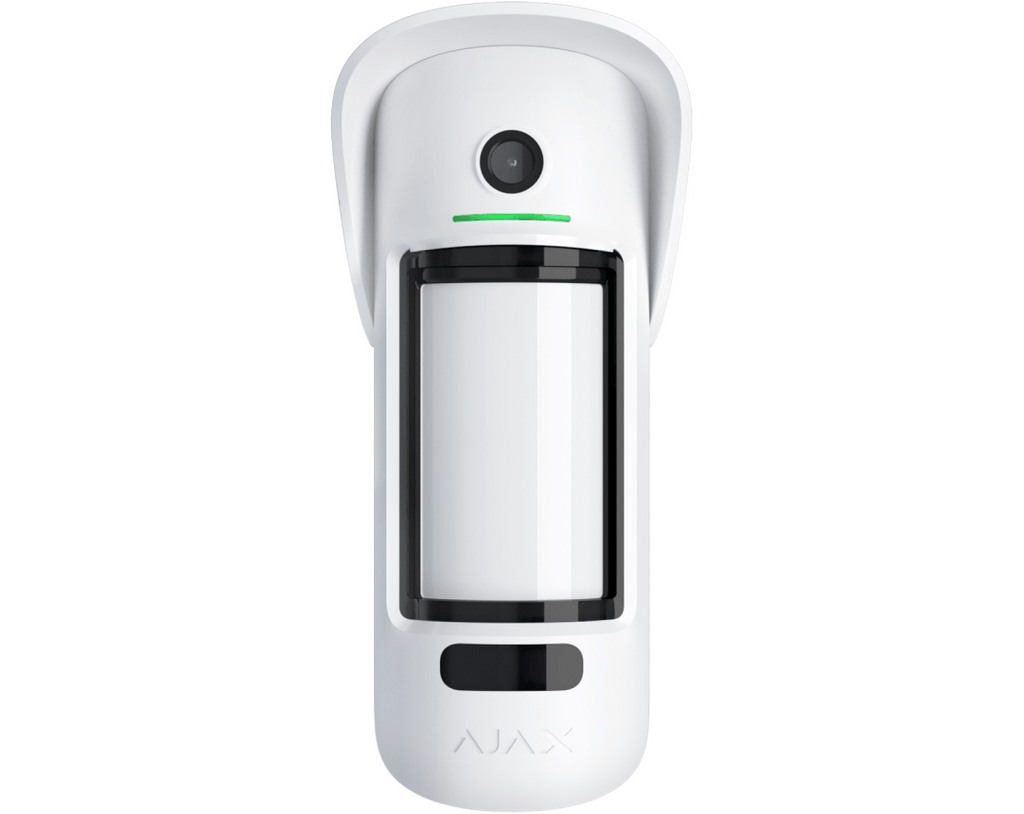

Ajax 57540.121.WH3 MotionCam Outdoor (PhOD) Jeweller (9NA) UPC white
Product Details
MotionCam Outdoor (PhOD) Jeweller is the photo-on-demand version of the outdoor detector. It does everything the standard MotionCam Outdoor does — two PIR sensors, 90° coverage to 49 ft, photo series on alarm — and adds the ability to request a picture whenever you want one.
PhOD stands for Photo on Demand. Rather than waiting for an alarm, the camera can be triggered from the app, by a scenario, on a schedule, or on arming and disarming. That turns a perimeter detector into a way of checking a yard, a loading bay or a side gate at will, without adding a separate camera. Access is permission-based, so who may request a photo is controlled rather than assumed.
The detector carries the full anti-sabotage set for outdoor duty: masking sensors that react to hindering, covering and painting the lens, a tamper alarm, and an IP56 housing rated from −13 °F to 140 °F. Photos travel on Wings, a second radio channel dedicated to image transfer, so pictures never delay an alarm and an alarm never delays a picture.
Features
- Photo on demand — request an image from the app at any time
- Photo also by alarm, by scenario, by schedule, and on arming or disarming
- Permission-based access controls who may request a photo
- Two PIR sensors, 90° horizontal coverage, detection up to 49 ft
- Photo series — 1 to 5 images at 320 × 176 px, 1 to 3 at 640 × 352 px
- Camera field of view 105° horizontal, 50° vertical
- IR backlight for night and low-light photography
- Anti-masking reacts to hindering, covering and painting the lens
- Pet immunity for animals up to 2.6 ft tall
- LISA and SmartDetect algorithms to suppress false alarms
- IP56 outdoor housing, −13 °F to 140 °F
- Up to 3 years on four pre-installed CR123A batteries
- Jeweller range up to 5,600 ft in open space
- Grade 2, Environmental Class IV
Specifications
| Technical | |
|---|---|
| Device Type | Wireless PIR motion detector with extended photo verification possibilities, for outdoor and indoor use |
| Sensitive Elements | 2 × PIR sensor |
| Motion Detection Distance | Up to 10 ft to 49 ft at an installation height of 2.6–4.3 ft |
| Motion Detection Angle | 90° horizontal |
| Motion Detection Speed | 1 to 6.6 ft/s |
| Sensitivity | 3 adjustable levels |
| Pet Immunity | Weight not relevant | height up to 2.6 ft |
| Anti-Masking | Masking sensors reacting to hindering, covering and painting the lens |
| False Alarm Prevention | LISA, SmartDetect and software algorithms |
| Temperature Compensation | −13 °F to 140 °F |
| Photo Scenarios | By alarm | on demand | by scenario | by schedule | by arming and disarming |
| Camera Viewing Angles | 105° horizontal | 50° vertical |
| Photo Resolution | 640 × 352 px | 320 × 176 px (default) |
| Series of Pictures | 1 to 5 images at 320 × 176 px | 1 to 3 images at 640 × 352 px |
| IR Backlight | Yes |
| Photo Delivery Time | Up to 9 s (320 × 176 px) | up to 20 s (640 × 352 px) |
| Battery Type | 4 × CR123A (pre-installed) |
| Calculated Battery Life | Up to 3 years |
| Full Battery Capacity | 3,200 mAh |
| Operating Voltage Range | 4−6.4 V⎓ |
| Quiescent Current Consumption | 50 μA |
| Communication Technology | Jeweller for alarms and events | Wings for photo verification |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,600 ft in open space |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 8.11″ × 4.25″ × 3.66″ |
| Weight | 16.58 oz |
| Operating Temperature Range | −13 °F to 140 °F |
| Operating Humidity | Up to 95% |
| Protection Class | IP56 |
| Color | White |
| Complete Set | Detector, hood, SmartBracket mounting panel, installation kit, 4 × CR123A batteries (pre-installed), quick start guide |
| Certification and Compliance | EN 50131 Grade 2, Environmental Class IV | RED, RoHS, EMC, LVD | FCC, IC |
| Warranty | 24 months |
Specifications subject to change.
