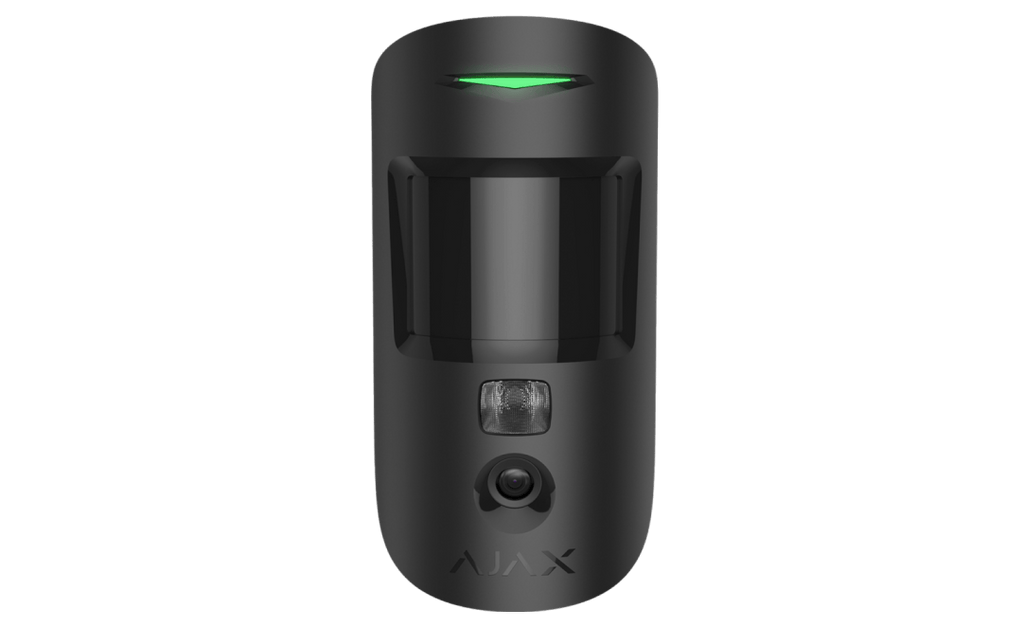

Ajax 57539.120.BL3 MotionCam (PhOD) Jeweller (9NA) UPC black
Product Details
MotionCam (PhOD) Jeweller is the indoor photo-verification detector: a single PIR sensor covering 88.5° out to 39 ft, with a camera that photographs the room the instant an alarm is raised — and whenever else you ask it to.
PhOD stands for Photo on Demand. Alongside photos by alarm, the camera can be triggered from the app, by a scenario such as a fire detector going off, on a schedule, or on arming and disarming. Pictures arrive in as little as 7 seconds, in HDR, with IR backlight for a dark room, and access to them is governed by user permissions rather than being open to everyone on the account.
Pet immunity covers animals up to 44 lb and 1.6 ft tall, so a dog moving through a protected room does not raise an alarm. Two pre-installed CR123A cells last up to four years with photo on demand switched off, or about three with it enabled. Photos travel on Wings, a second radio channel dedicated to image transfer, so pictures never delay an alarm and an alarm never delays a picture. Supplied in the black finish; the same detector in white is stocked as 57538.120.WH3.
Features
- Photo on demand — request an image from the app at any time
- Photo also by alarm, by scenario, by schedule, and on arming or disarming
- Permission-based access controls who may request a photo
- PIR detection to 39 ft across an 88.5° field
- Photo resolution up to 640 × 480 px, delivered in as little as 7 s
- HDR imaging and IR backlight for dark rooms
- Pet immunity — animals up to 44 lb and 1.6 ft tall
- SmartDetect algorithm to suppress false alarms
- Three adjustable sensitivity levels
- Tamper alarm on removal from the wall or the SmartBracket
- Up to 4 years on two pre-installed CR123A batteries
- Jeweller range up to 5,550 ft in open space
- Grade 2, UL 639 and ULC S306 listed
Specifications
| Technical | |
|---|---|
| Device Type | Wireless PIR motion detector with extended photo verification possibilities |
| Sensitive Element | 1 × PIR sensor |
| Motion Detection Distance | Up to 39 ft at an installation height of 8 ft |
| Motion Detection Angle | 88.5° horizontal |
| Motion Detection Speed | 1 to 6.6 ft/s |
| Sensitivity | 3 adjustable levels |
| Pet Immunity | Animals up to 44 lb in weight and 1.6 ft in height |
| False Alarm Prevention | SmartDetect software algorithm |
| Temperature Compensation | 14 °F to 104 °F |
| Photo Scenarios | By alarm | on demand | by scenario (fire detector trigger) | by schedule | by arming and disarming |
| Photo Resolution | 640 × 480 px | 320 × 240 px (default) | 160 × 120 px |
| Series of Pictures | 1 to 5 images at 320 × 240 px and 160 × 120 px | 1 to 3 images at 640 × 480 px |
| HDR Image | Yes (firmware 16.59.36.5 and later) |
| IR Backlight | Yes |
| Photo Delivery Time | 7 s (160 × 120 px) | 9 s (320 × 240 px) | 20 s (640 × 480 px) |
| Battery Type | 2 × CR123A (pre-installed), 1,550 mAh each |
| Calculated Battery Life | Up to 4 years with Photo on Demand disabled | up to 3 years enabled |
| Nominal Operating Voltage | 6 V⎓ |
| Quiescent Current Consumption | 30 μA |
| Communication Technology | Jeweller for alarms and events | Wings for photo verification |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,550 ft in open space |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 5.31″ × 2.75″ × 2.36″ |
| Weight | 6 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Complete Set | Detector, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide |
| Certification and Compliance | EN 50131 Grade 2 | UL 639, ULC S306 | FCC, IC |
| Warranty | 24 months |
Specifications subject to change.
