Ajax 42855.13. BL3 WallSwitch (9NA) UPC black
Product Details

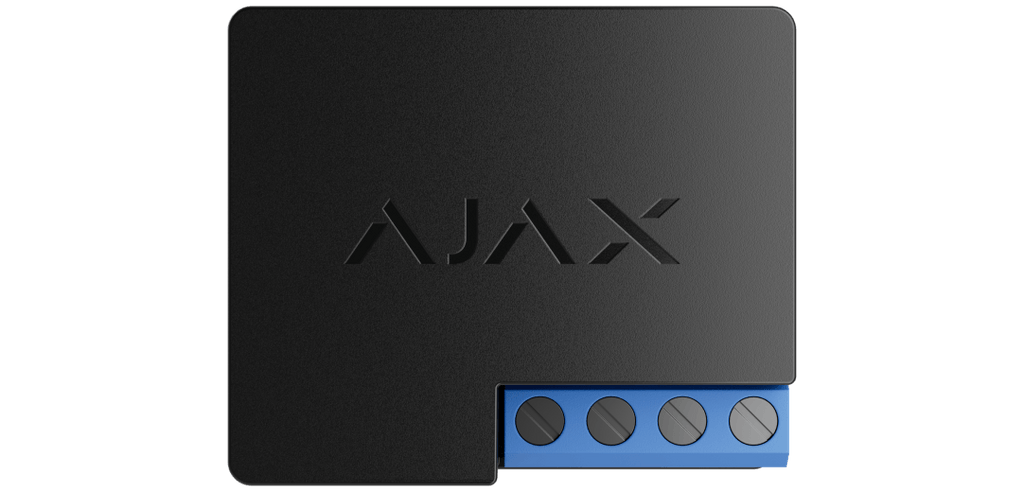

WallSwitch Jeweller is a wireless power relay that switches a 110/230 V~ supply on command, handling loads up to 3 kW. Unlike the LightSwitch parts it is not a wall plate — it is a compact module that goes behind an existing switch, in a back box or on a DIN rail, and takes over whatever it is wired to.
It reports energy consumption back to the Ajax app, so a circuit's usage is visible rather than guessed at. Automation scenarios can drive it from arming and disarming, a schedule, an alarm, or temperature, humidity and CO₂ readings — which is what turns it into site lighting on a timetable, presence simulation while a property is empty, underfloor heating, irrigation, or power to a gate or camera.
Built-in protection cuts the load on overcurrent above 11 A, on voltage outside 184–253 V~ (or 92–132 V~ on a 110 V supply), and on internal temperature above 149 °F. It runs in bistable or pulse mode with an adjustable pulse of 1 to 255 seconds, and Jeweller radio reaches up to 3,250 ft.
Features
- Wireless power relay for 110/230 V~ supplies
- Maximum continuous load current 13 A
- Output up to 3.0 kW at 230 V~ or 1.5 kW at 110 V~ (resistive)
- Built-in energy consumption monitor visible in the Ajax apps
- Overcurrent protection above 11 A (13 A with protection disabled)
- Voltage protection: 184–253 V~ | 92–132 V~ on a 110 V supply
- Temperature protection above 149 °F
- Bistable and pulse operating modes
- Adjustable pulse duration from 1 to 255 seconds
- Normally open or normally closed contact state
- Scenarios by arming/disarming, schedule, alarm, temperature, humidity, CO₂ and button press
- Compact 39 × 33 × 18 mm body with flexible external antenna
- Mounts in a wall plate or on a DIN rail with the included bracket
- Up to 3,250 ft Jeweller radio range
- Class II electric shock protection
Specifications
| Technical | |
|---|---|
| Power Supply Voltage | 110–230 V~ ± 10%, 50/60 Hz |
| Maximum Continuous Load Current | 13 A |
| Output Power | Up to 3.0 kW (resistive at 230 V~) | up to 1.5 kW (resistive at 110 V~) |
| Average Consumption | Up to 1 W |
| Current Protection | More than 11 A with overcurrent protection enabled | more than 13 A disabled |
| Voltage Protection (230 V~) | Minimum 184 V~ | maximum 253 V~ |
| Voltage Protection (110 V~) | Minimum 92 V~ | maximum 132 V~ |
| Temperature Protection | Over 149 °F |
| Electric Shock Protection Class | Class II |
| Operation Modes | Pulse | bistable |
| Contact State | Normally open | normally closed |
| Adjustable Pulse Duration | 1 to 255 seconds |
| Energy Consumption Monitor | Yes, reported in the Ajax apps |
| Automation Scenarios | By arming/disarming, schedule, alarm, temperature, humidity, CO₂, touch or button |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 3,250 ft |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 1.54″ × 1.3″ × 0.71″ (39 × 33 × 18 mm) |
| Weight | 1.06 oz |
| Operating Temperature Range | 32 °F to 147 °F |
| Operating Humidity | Up to 75%, no condensation |
| Protection Class | IP20 |
| Mounting | Wall plate or DIN rail with the included bracket |
| Colour | Black |
| Certification | FCC, IC, EU compliance, RoHS |
| Warranty | 24 months |
Specifications subject to change.
