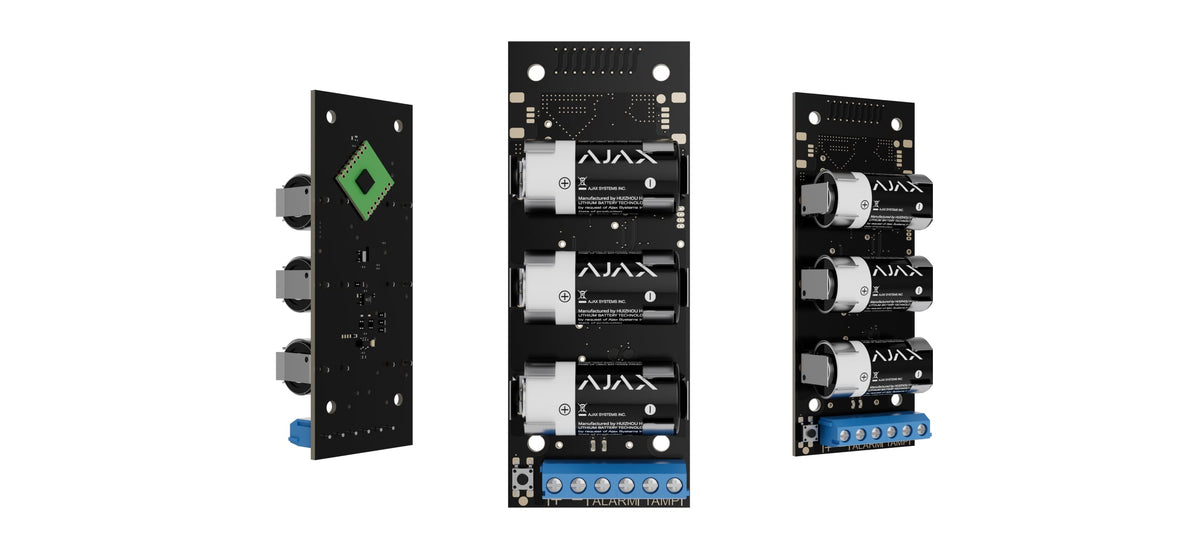

Ajax 42854.18.NC3 Transmitter (9NA) UPC
Product Details
Transmitter Jeweller is a module for bringing a single third-party wired device onto an Ajax system — an IR barrier, a liquid level detector, a gas leak detector, a keypad, a panic button, or anything else with an NC or NO contact. It takes the alarm on a wire and relays it to the hub over Jeweller.
Two pairs of terminal inputs handle the alarm sensor and its tamper, over cable runs up to 425 ft of 24 AWG twisted pair, in pulse or bistable mode. The module supplies 3.3 V DC at up to 125 mA to power the connected device. Three pre-installed CR123A batteries run the module itself, and Jeweller radio reaches 5,200 ft in open space.
Fourteen event types can be assigned — intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, glass break, high and low temperature, masking, duress code, vibration and custom — so the alarm arrives labelled correctly at the monitoring station. A built-in accelerometer reports the module being moved.
Features
- Module to integrate one third-party wired device into an Ajax system
- Two pairs of terminal inputs for the alarm sensor and its tamper
- Supports NO and NC contact states for both device and tamper
- 3.3 V DC power output for the connected device, up to 125 mA
- Cable runs up to 425 ft of 24 AWG twisted pair
- Pulse and bistable operating modes
- Sensor modes: notify of alarms, or switch arming modes
- 14 assignable event types for correct alarm labelling
- Accelerometer alerts when the module is moved
- Up to 5,200 ft Jeweller radio range
- Jeweller encrypted two-way radio with frequency hopping
- Integration module authentication against spoofing
- Powered by three pre-installed CR123A batteries
Specifications
| Technical | |
|---|---|
| Supported Configurations | Two pairs of terminal inputs for tamper and alarm sensor connection |
| Power Supply Output | 3.3 V DC for the connected wired device, up to 125 mA |
| Third-Party Device Contact States | NO, NC |
| Tamper Contact States | NO, NC |
| Cable Length | Up to 425 ft (24 AWG twisted pair) |
| Operating Modes | Pulse, bistable |
| Sensor Modes | Notify of alarms | Switch arming modes |
| Event Types | 14 types: intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, glass break, high temperature, low temperature, masking, duress code, vibration, custom |
| Accelerometer | Alert when the module is moved |
| Protection Against Spoofing | Integration module authentication |
| Communication Loss Detection | After 36 s |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,200 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent interference and jamming |
| Physical | |
|---|---|
| Battery | 3 × CR123A (pre-installed) |
| Output to Connected Device | 3.3 V DC, up to 125 mA |
| Dimensions | 3.94″ × 1.54″ × 0.87″ |
| Weight | 2.61 oz |
| Operating Temperature Range | −13 °F to 122 °F |
| Operating Humidity | Up to 75% |
| Electric Shock Protection | Class III |
| Warranty | 24 months |
Specifications subject to change.
