Description

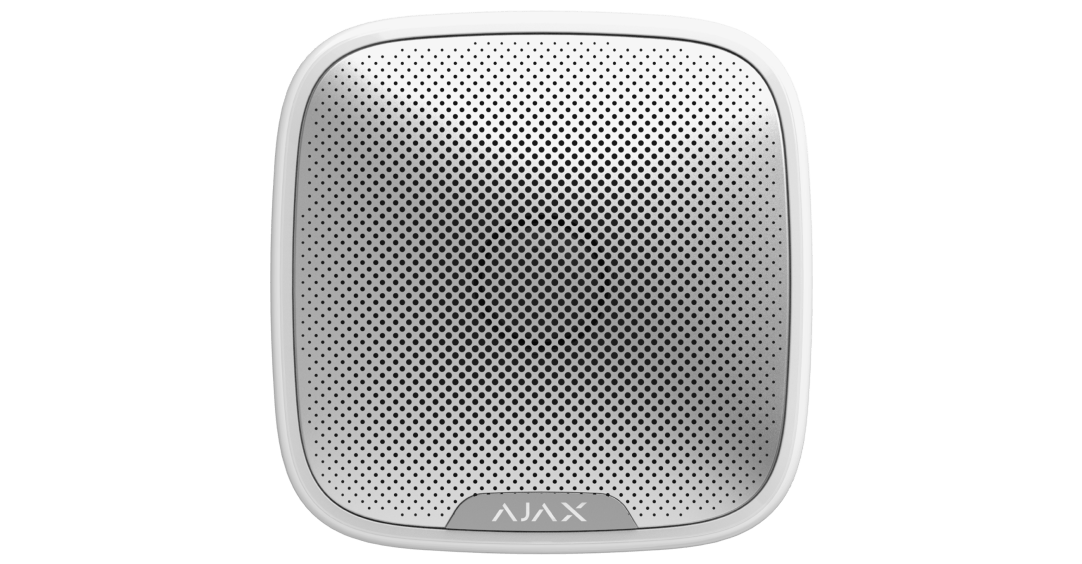

Ajax 42845.07.WH3 StreetSiren (9NA) UPC white
Product Details
StreetSiren Jeweller is a wireless siren for outdoor and indoor use that combines a loud buzzer with a bright LED frame, so an alarm is both heard and seen. It signals alarms, shows system status, marks arming and disarming delays, and leaves an after-alarm indication a patrol can read from the street.
Alarm volume is adjustable from 85 to 113 dB at 3.3 ft across a 1.60–4.5 kHz band, with a duration from 3 seconds to 3 minutes. The IP54 enclosure works from −13 °F to 140 °F. Jeweller radio reaches up to 4,500 ft in open space and four pre-installed CR123A batteries last up to 5 years; a 6–20 V DC supply can power it instead where mains is available.
Both a tamper button and an accelerometer guard the housing: the first reports the enclosure being opened, the second any attempt to move or prise it off the wall. A holding screw resists a quick grab-and-pull. Firmware updates arrive over the air on Wings, Ajax's second radio channel. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the white finish. The same device in black is stocked as 42844.07.BL3.
Features
- Wireless siren for outdoor and indoor use
- Adjustable alarm volume: 85–113 dB at 3.3 ft
- Adjustable alarm duration: 3 seconds to 3 minutes
- Bright LED frame for visual alerts and after-alarm indication
- Chime feature when an opening detector triggers while disarmed
- Tamper button plus accelerometer against movement and dismounting
- Holding screw for protection against quick dismantling
- IP54 waterproof and dust-resistant enclosure, −13 °F to 140 °F
- Up to 5 years on four pre-installed CR123A batteries
- Optional 6–20 V DC external power supply
- Up to 4,500 ft radio range with an Ajax hub or range extender
- Over-the-air firmware updates via Wings
- Jeweller encrypted two-way radio with frequency hopping
- SmartBracket mounting panel — no enclosure disassembly
- Available in white and black finishes
Specifications
| Technical | |
|---|---|
| Alarm Type | Acoustic and LED (buzzer and LED frame) |
| Warning Device Type | Type X (external, self-powered, remote power source per EN 50131-6) |
| Alarm Volume | 85–113 dB at 3.3 ft, adjustable |
| Alarm Duration | From 3 seconds to 3 minutes (up to 15 minutes with firmware NA 5.60.4.14 or later on Quiet and Loud volumes) |
| Siren Sound Frequency | 1.60–4.5 kHz |
| Acoustic Output | Tone |
| Events Indication | Alarms, entry and exit delays, security mode status and changes, after-alarm indication |
| Chime | Yes, for opening detector notifications when disarmed |
| Accelerometer Alarm | Notifications on movement, shaking or detachment attempts |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 4,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Wings Communication Technology | Proprietary wireless technology for firmware updates, with block encryption, error correction and delivery verification |
| Wings Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Wings Communication Range | Up to 3,000 ft (open space) |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 4 × CR123A (pre-installed), type C |
| Battery Manufacturer | Huiderui or Panasonic (UL listed) |
| Operating Voltage | 3.65–6.2 V DC | Nominal: 6 V DC |
| Current Consumption | Quiescent: 71 μA | Average: 0.3 A (default volume) | Peak: 1 A (Very Loud) |
| Full Battery Capacity | 6,400 mAh (1,600 mAh per battery) |
| Low / Recovery / End-of-Life Battery Voltage | 4.25 V DC / 5.05 V DC / 3.65 V DC (device switches off) |
| Calculated Battery Life | Up to 5 years |
| External Power Supply (Optional) | 6–20 V DC | Nominal: 12 V DC | Quiescent: 25 mA | Average: 0.2 A | Peak: 0.7 A |
| Dimensions | 7.87″ × 7.87″ × 2.0″ |
| Weight | 18.63 oz |
| Operating Temperature Range | −13 °F to 140 °F (UL: −31 °F to 150 °F | ULC: −40 °F to 150 °F) |
| Operating Humidity | Up to 95% (UL/ULC: up to 93%) |
| Protection Class | IP54 |
| Colors | White, Black |
| Complete Set | StreetSiren Jeweller, SmartBracket mounting panel, installation kit, 4 × CR123A batteries (pre-installed), quick start guide |
| Warranty | 24 months |
Specifications subject to change.
