Description

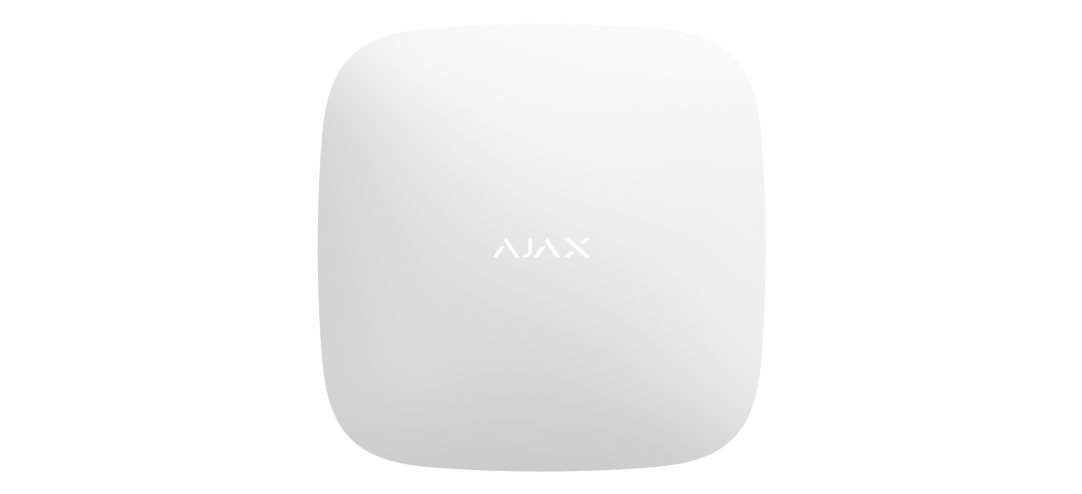

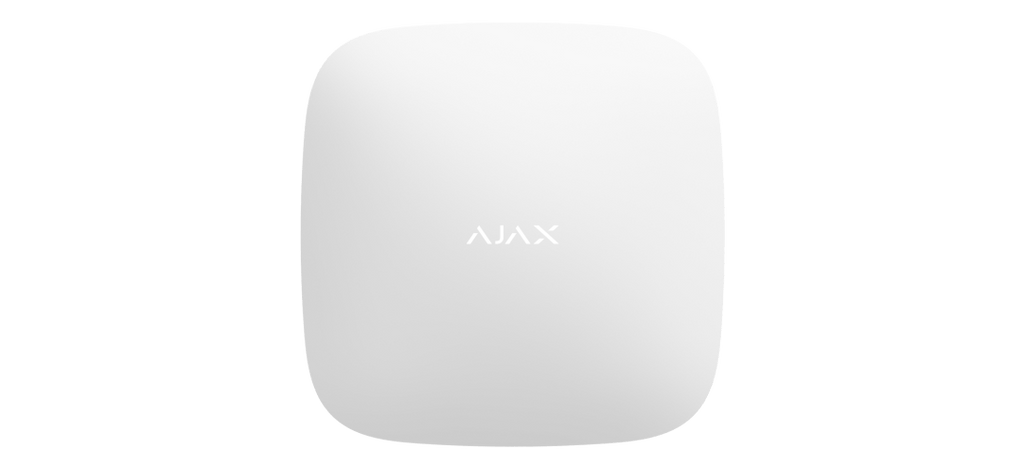

Ajax 42841.106.WH3 ReX 2 (9NA) UPC white
Product Details
ReX 2 Jeweller is a radio signal range extender that supports alarm photo verification and an Ethernet connection. It doubles the reach between devices and the control panel, and up to five of them on one hub extend a system across roughly 35 km².
Up to 199 devices connect through a single ReX 2. Jeweller radio reaches 5,550 ft and Wings 5,600 ft; alarms reach the hub in 0.3 s, and a photo arrives in 18 s over Wings or 10 s over Ethernet. That Ethernet port is what makes it work through steel and concrete, where radio alone will not carry.
It behaves as an intelligent secondary control panel: signal power adjusts automatically, and it keeps running autonomously if the link to the hub drops. A Li-ion backup battery gives up to 24 hours with Ethernet disabled, or 12 hours with it on. Firmware updates arrive over the air. A tamper button reports unmounting, all stored and transmitted data uses block encryption with a dynamic key, and the hub authenticates each device's unique parameters at every communication session. Supplied in the white finish. The same device in black is stocked as 42840.106.BL3.
Features
- Radio signal range extender with photo verification support
- Ethernet connection for communication through steel and concrete
- Up to 5 range extenders per hub, covering up to 35 km²
- Up to 199 devices connected to one ReX 2
- Alarm delivery to the hub in 0.3 s
- Photo delivery: 18 s via Wings, 10 s via Ethernet
- Up to 5,550 ft Jeweller range; up to 5,600 ft Wings range
- Automatic signal power adjustment
- Operates autonomously if the hub connection fails
- Backup battery: up to 24 hours (Ethernet off) or 12 hours (Ethernet on)
- Over-the-air OS updates
- IP30 / IK06 enclosure
- Tamper alarm and device authentication against spoofing
- Available in white and black
Specifications
| Technical | |
|---|---|
| ReX 2 Jeweller per Hub | 5 |
| Devices Connected to ReX 2 | Up to 199 |
| Jeweller Radio Communication Range | Up to 5,550 ft (open space) |
| Wings Radio Communication Range | Up to 5,600 ft (open space) |
| Ethernet | 1 × 8P8C socket, up to 100 Mbps |
| Alarm Delivery Time to Hub | 0.3 s |
| Photo Delivery Time via Wings | 18 s |
| Photo Delivery Time via Ethernet | 10 s |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Encrypted Communication | Block encryption with dynamic key |
| Tamper Alarm | Yes |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Main Power Supply | 110–240 V, 50/60 Hz, up to 10 W consumption |
| Backup Battery | Li-ion Polymer 3.7 V, 2 Ah |
| Backup Life | Up to 24 hours (Ethernet disabled) | Up to 12 hours (Ethernet enabled) |
| Current Consumption | Quiescent: 14.5 mA | Maximum: 95.8 mA |
| Dimensions | 6.42″ × 6.42″ × 1.42″ |
| Weight | 12.84 oz (white) | 11.85 oz (black) |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP30, IK06 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
