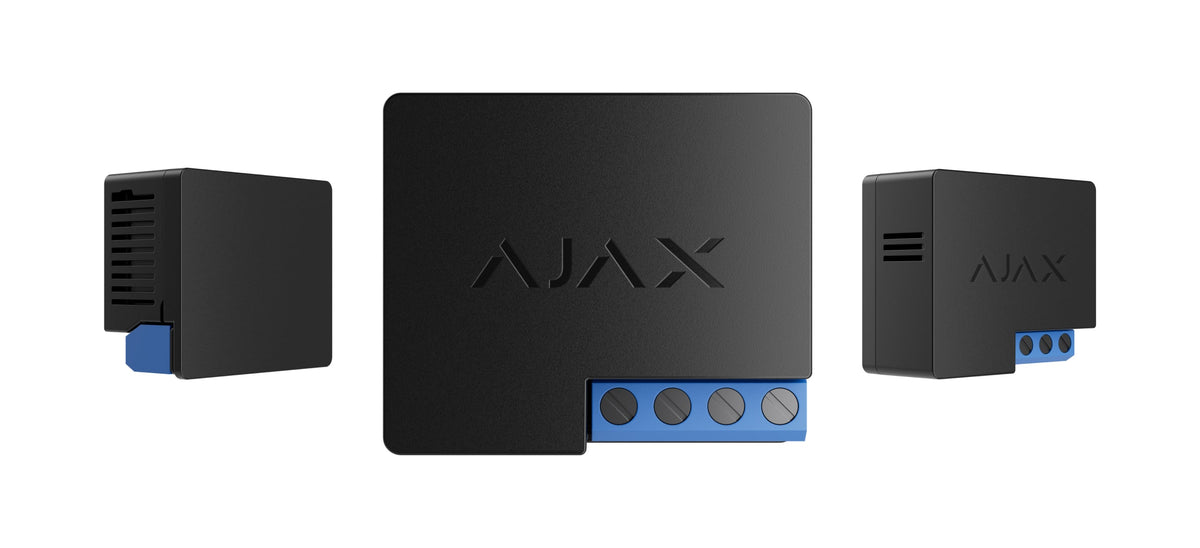

Ajax 42837.19.NC3 Relay (9NA) UPC
Product Details
Relay Jeweller is a dry contact relay that switches a power supply remotely from the Ajax system. It is how a security system stops being only a set of sensors: a gate opens, an electric lock releases, a water valve closes, blinds come down, a smoke cannon fires.
It switches up to 5 A at 24 V DC or 13 A at 110–230 V~ resistive, and up to 3 A / 8 A inductive or capacitive, from a 7–24 V DC supply drawing under 1 W. Pulse duration is adjustable from 0.5 to 255 seconds, in pulse or bistable mode, with normally open or normally closed contacts. Jeweller radio reaches 3,250 ft in open space.
Scenarios can fire it on arming and disarming, on a schedule, on an alarm, on temperature, humidity or CO₂, or on user input. Built-in protection cuts the relay if voltage falls below 6.5 V or rises above 36.5 V, or if the installation site exceeds 149 °F or the relay's own interior exceeds 185 °F. It fits a DIN rail with the separate DIN Holder bracket.
Features
- Dry contact relay for remote control of a 7–24 V DC power supply
- Switches up to 5 A at 24 V DC or 13 A at 110–230 V~ (resistive)
- Up to 3 A at 24 V DC or 8 A at 110–230 V~ (inductive/capacitive)
- Pulse and bistable operation modes
- Normally open or normally closed contact state
- Adjustable pulse duration from 0.5 to 255 s
- Scenarios by arming/disarming, schedule, alarm, temperature, humidity, CO₂ and user input
- Voltage protection below 6.5 V and above 36.5 V
- Temperature protection: over 149 °F at site, over 185 °F inside the relay
- Up to 3,250 ft Jeweller radio range
- Jeweller encrypted two-way radio with frequency hopping
- Device authentication against spoofing
- DIN rail mounting with the separate DIN Holder bracket
Specifications
| Technical | |
|---|---|
| Contact Type | Dry contact |
| Operation Modes | Pulse | Bistable |
| Contact State | Normally open | Normally closed |
| Adjustable Pulse Duration | 0.5 to 255 s |
| Maximum Resistive Load | Up to 5 A at 24 V DC | Up to 13 A at 110–230 V~ |
| Maximum Inductive / Capacitive Load | Up to 3 A at 24 V DC | Up to 8 A at 110–230 V~ |
| Voltage Protection | Minimum 6.5 V DC | Maximum 36.5 V DC |
| Temperature Protection | Over 149 °F at the installation site | over 185 °F inside the relay |
| Automation Scenarios | By arming/disarming, schedule, alarm, temperature, humidity, CO₂ and user input |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 3,250 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent interference and jamming |
| Physical | |
|---|---|
| External Power Supply | 7–24 V DC |
| Energy Consumption | Up to 1 W |
| Cable Cross-Section | 0.75–1.5 mm² (22–14 AWG) |
| Dimensions | 1.54″ × 1.3″ × 0.71″ |
| Weight | 0.88 oz |
| Operating Temperature Range | −4 °F to 147 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Color | Black |
| Certification | FCC ID: 2AX5VRELAY-NA, 2AX5VRELAYJ1 | IC ID: 26860-RELAYNA1, 26860-RELAYJ1 |
| Warranty | 24 months |
Specifications subject to change.
