Description
Ajax 42832.89. BL Pass (10pcs) UPC black
Product Details

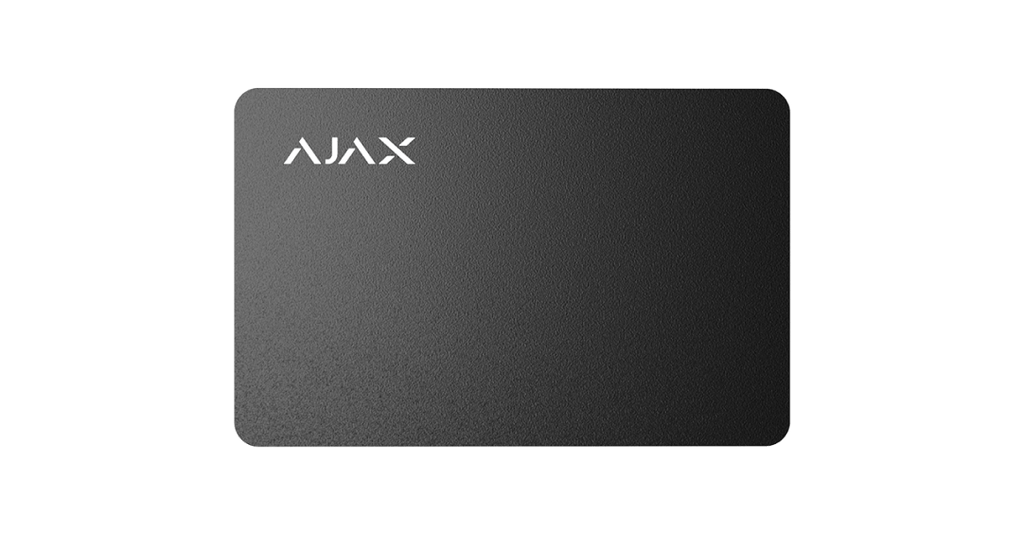

Ajax Pass is an encrypted contactless card. Presented to an Ajax keypad, it arms or disarms the system — the same job as the Tag key fob, in the format that fits a wallet or a lanyard badge holder rather than a keyring.
Is the only real difference between the two: identical DESFire chip, identical ISO 14443-A standard at 13.56 MHz, identical Triple DES and 128-bit AES hardware encryption. Pass is a card, 3.39 by 2.13 inches and 0.03 inches thick; Tag is a fob. Sites that already issue staff ID cards usually take Pass. These are contactless credentials, not standalone controls: they arm and disarm through an Ajax keypad that reads them. A system without a KeyPad Plus or KeyPad TouchScreen has nothing to present them to.
One Pass can be paired with up to 13 Ajax hubs at once. It needs no battery and never needs charging. This pack contains 10 in black. The same Pass is stocked in white as 42835.89. WH, and in the other pack sizes as 42833.89. BL (3 pcs) and 42831.89. BL (100 pcs).
Features
- Pack of 10 cards
- Card format, 3.39″ × 2.13″ × 0.03″, for a wallet or badge holder
- DESFire chip on ISO 14443-A at 13.56 MHz
- Triple DES and 128-bit AES hardware encryption
- Protected against signal interception and cloning
- Works with KeyPad Plus, Superior KeyPad Plus, KeyPad TouchScreen and Superior KeyPad TouchScreen Fibra
- One device pairs with up to 13 Ajax hubs at once
- No battery and no charging — passive device
- Black and white finishes
- Sold in packs of 3, 10 and 100
Specifications
| Technical | |
|---|---|
| Device Type | Contactless card for security control |
| Pack Quantity | 10 pcs |
| Communication Technology | DESFire® |
| Operating Standard | ISO 14443-A (13.56 MHz) |
| Encryption | Triple DES encryption and AES hardware encryption with a 128-bit key |
| Compatible Ajax Devices | KeyPad Plus Jeweller | Superior KeyPad Plus Jeweller | KeyPad TouchScreen Jeweller | Superior KeyPad TouchScreen Fibra |
| Simultaneous Hub Support | One device can be paired with up to 13 Ajax hubs at the same time |
| Power Supply | Not required |
| Security | Device authentication and protection against signal interception |
| Physical | |
|---|---|
| Dimensions | 3.39″ × 2.13″ × 0.03″ |
| Weight | 0.2 oz (per card) |
| Pack Quantity | 10 pcs |
| Color | Black |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Warranty | 24 months |
Specifications subject to change.
