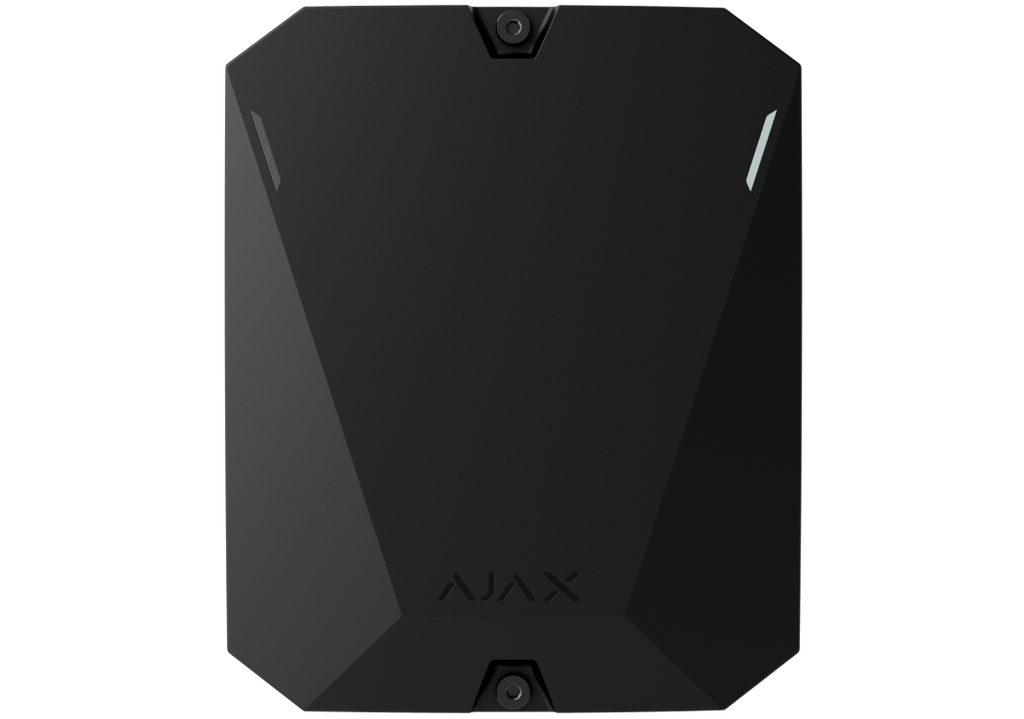

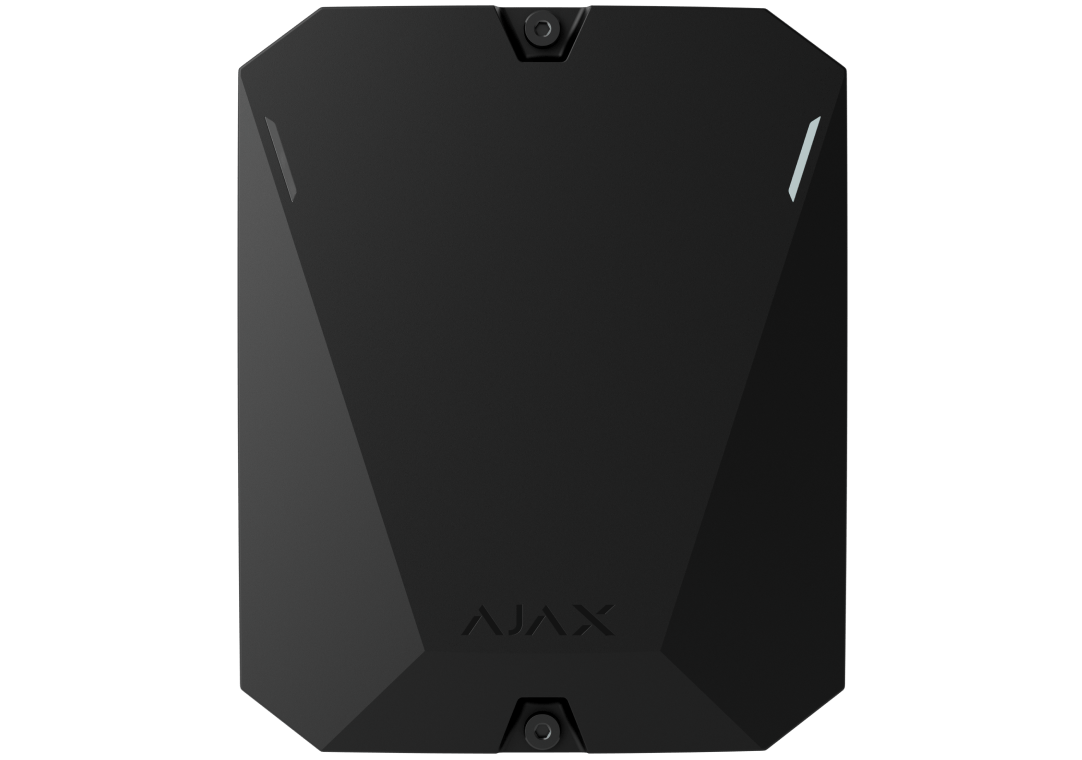

Ajax 42829.62.BL3 MultiTransmitter (9NA) UPC black
Product Details
MultiTransmitter Jeweller is an integration module that brings up to 18 third-party wired detectors onto an Ajax system. An existing wired alarm can be modernised without pulling out the detectors and rewiring the building — the panel and the app change, the field devices stay.
Eighteen zones accept NC, NO, EOL, 2EOL and 3EOL connections (2EOL and 3EOL from firmware 2.13), with EOL resistors from 1 kΩ to 15 kΩ each and 30 kΩ total, over cable runs up to 1,300 ft. Three power lines feed fire and intrusion detectors at 10.5–15 V DC up to 1 A total, and rails inside take a 4 or 7 Ah backup battery. Jeweller radio reaches 6,500 ft in open space.
Two tampers watch the casing — one for opening, one for detachment — and with EOL, 2EOL or 3EOL wiring the module detects a cut line, a short circuit or a fault instantly. Setup is by QR code, and the apps warn about connection errors rather than requiring the installer to know resistor values. A tamper button reports unmounting, all stored and transmitted data uses block encryption with a dynamic key, and the hub authenticates each device's unique parameters at every communication session. Supplied in the black finish. The same device in white is stocked as 42830.62.WH3.
Features
- Integration module for up to 18 third-party wired devices
- 18 zones supporting NC, NO, EOL, 2EOL and 3EOL connection types
- EOL resistance 1 kΩ to 15 kΩ per resistor, 30 kΩ total (firmware 2.13+)
- Cable runs up to 1,300 ft
- 3 power lines for fire and intrusion detectors, 10.5–15 V DC up to 1 A total
- Rails for a 4 or 7 Ah backup battery
- 15 event types supported; pulse and bistable operation modes
- Two tampers for casing opening and detachment detection
- Instant detection of wired connection loss, short circuits and malfunctions
- Up to 6,500 ft Jeweller radio range
- IP40, IK06 casing
- QR code setup with connection error warnings in the apps
- Available in white and black
Specifications
| Technical | |
|---|---|
| Number of Zones | 18 wired zones |
| Type of Connection | NC, NO, EOL (firmware below 2.13) | NC, NO, EOL, 2EOL, 3EOL (firmware 2.13 and later) |
| EOL Resistance | 1 kΩ to 7.5 kΩ (older firmware) | 1 kΩ to 15 kΩ per resistor, 30 kΩ total (firmware 2.13+) |
| Cable Length | Up to 1,300 ft |
| Operation Mode | Pulse, bistable |
| Event Types | 15 types supported |
| Tamper Alarm | Two tampers for casing opening and detachment detection |
| Instant Detection | Wired connection loss, short circuits and malfunctions (with EOL/2EOL/3EOL) |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | Within 36 s |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Signal Range | Up to 6,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Physical | |
|---|---|
| Main Power Supply | 100–240 V~, 50/60 Hz (type A) |
| Current Consumption | Quiescent: 14.6 mA | Maximum: 69.6 mA |
| Backup Power | 12 V DC, up to 7 Ah capacity |
| Low Battery Voltage | 11.4 V DC |
| Connected Devices Supply | 10.5–15 V DC, up to 1 A total |
| Dimensions | 7.55″ × 9.37″ × 3.94″ |
| Weight | 30.83 oz (white) | 28.29 oz (black) |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP40, IK06 |
| Colors | White, Black |
| Complete Set | Board, casing, power cable, adapter, battery cable, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
