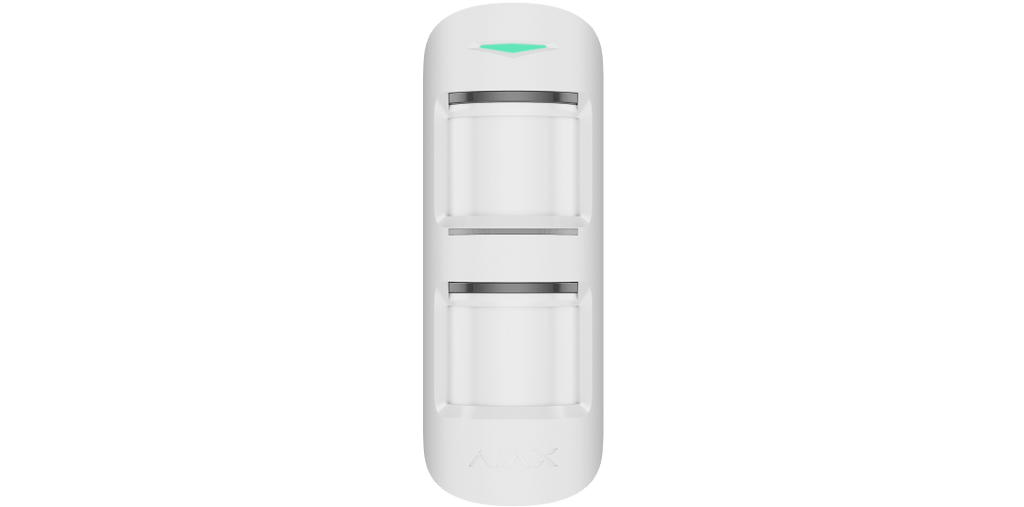

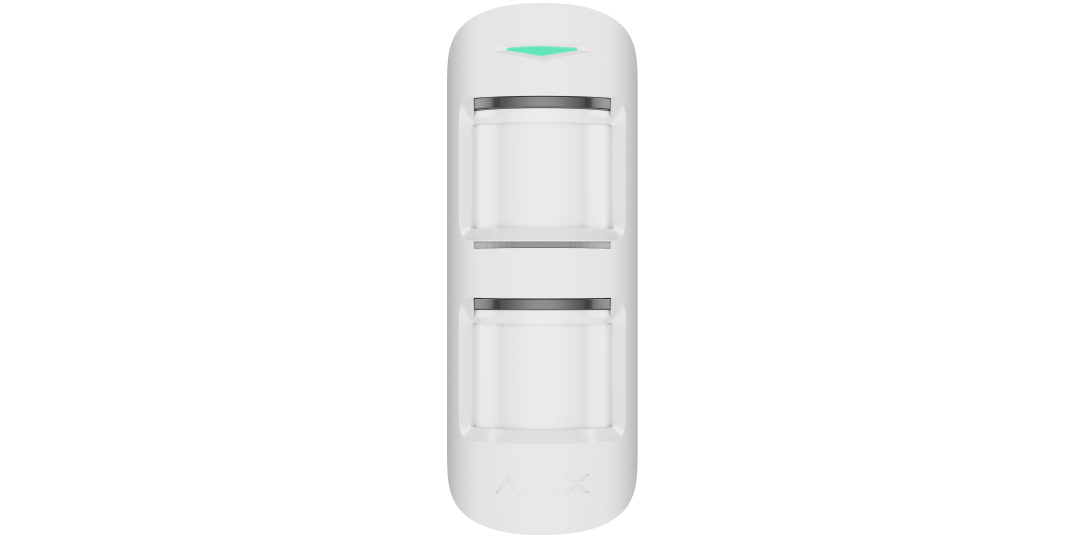

Ajax 42826.33.WH3 MotionProtect Outdoor (9NA) UPC white
Product Details
MotionProtect Outdoor Jeweller is a wireless outdoor motion detector with an advanced anti-masking system and pet immunity. Detecting an intruder in the yard rather than in the hallway is what turns an alarm into a deterrent, and outdoors is where false alarms have always been the hard problem.
Two PIR sensors cover 10–49 ft across a 90° horizontal angle at movement speeds from 1 to 6.6 ft/s, with three sensitivity levels. Pet immunity works by height rather than weight, ignoring animals up to 2.6 ft tall. The IP55 enclosure operates from −13 °F to 140 °F. Jeweller radio reaches up to 5,600 ft and two pre-installed CR123A batteries last up to 5 years.
The LISA algorithm compares the signals from both PIR sensors in real time using correlation and spectral analysis, which is what separates a person from swaying branches, headlights and sunlit walls. The anti-masking system calibrates itself and reports an obstacle, paint or tape over the sensors within about 2 to 2.5 minutes. An optional 5–28 V DC supply can power it where wiring is available. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit.
Features
- Wireless outdoor motion detector with two PIR sensors
- LISA two-step algorithm with correlation and spectral analysis
- Advanced anti-masking system detects obstacles, paint and tape in 2–2.5 minutes
- Motion detection distance: 10–49 ft across a 90° horizontal angle
- Pet immunity for animals up to 2.6 ft in height
- Temperature compensation from −13 °F to 140 °F
- 3 adjustable sensitivity levels
- IP55 dust and water protection, operating humidity up to 95%
- Up to 5 years on two pre-installed CR123A batteries
- Optional 5–28 V DC external power supply
- Up to 5,600 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel — no enclosure disassembly
Specifications
| Technical | |
|---|---|
| Sensitive Elements | 2 × PIR sensor |
| Motion Detection Distance | Up to 10–49 ft |
| Motion Detection Angle | Horizontal: 90° |
| Motion Detection Speed | From 1 to 6.6 ft/s |
| Sensitivity | 3 levels, adjustable |
| Pet Immunity | Height up to 2.6 ft (weight not relevant) |
| False Alarm Prevention | LISA and SmartDetect algorithms |
| Temperature Compensation | −13 °F to 140 °F |
| Anti-Masking System | Detects attempts to obstruct the field of view |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,600 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 2 × CR123A (pre-installed), type C |
| Operating Voltage | 2.1–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 79 μA | Maximum: 58.8 mA |
| Full Battery Capacity | 3,200 mAh |
| Low Battery Voltage | 2.5 V DC |
| External Power Supply (Optional) | 5–28 V DC, from 200 mA |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 7.2″ × 2.76″ × 2.56″ |
| Weight | 11.36 oz |
| Operating Temperature Range | −13 °F to 140 °F |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Colors | White |
| Complete Set | MotionProtect Outdoor Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide |
| Warranty | 24 months |
Specifications subject to change.
