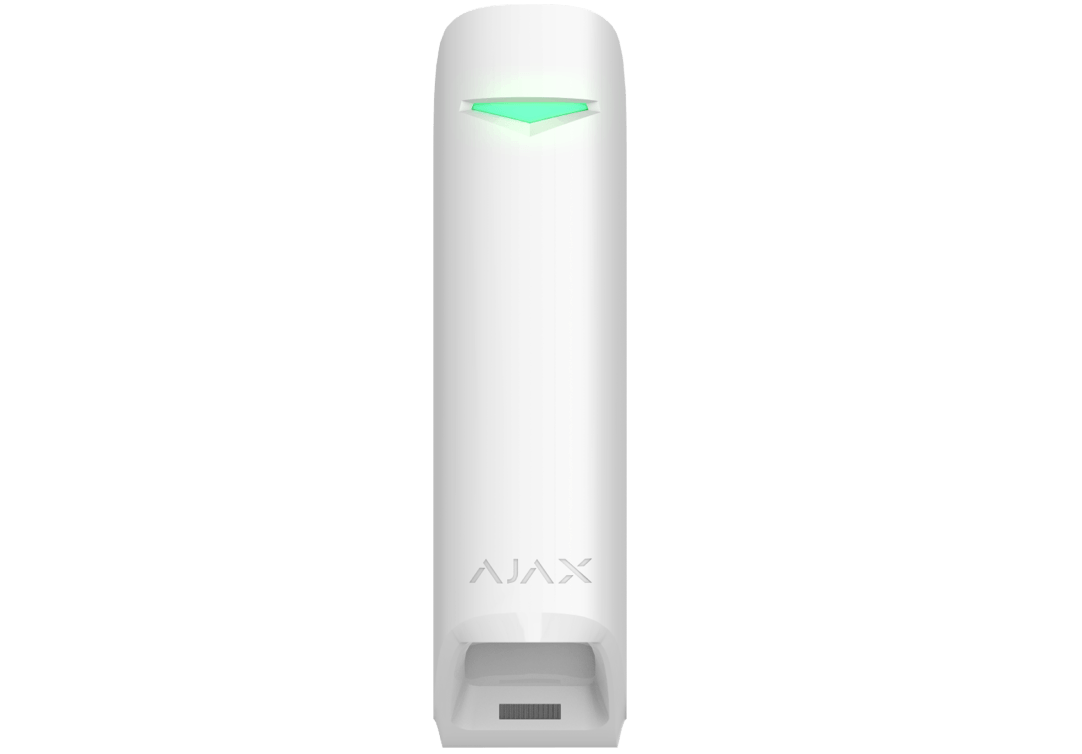

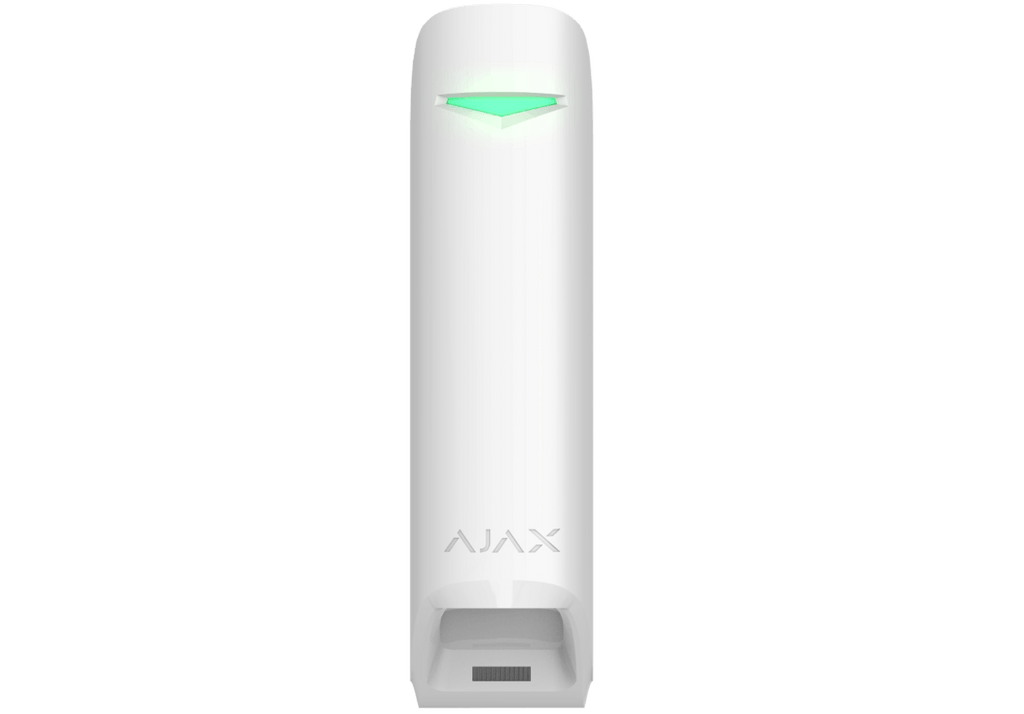

Ajax 42825.36.WH3 MotionProtect Curtain (9NA) UPC white
Product Details
MotionProtect Curtain Jeweller is a narrow-beam indoor motion detector that guards windows, doors and individual valuables rather than a whole room. The curtain-shaped detection zone is what lets people move freely inside a protected space while the perimeter stays armed.
An optical system of two PIR sensors and a multifaceted mirror gives a 6° horizontal by 90° vertical detection zone at 19.7–49 ft with Correlation Signal Processing disabled, or 19.7–26 ft with it enabled, at movement speeds from 1.0 to 6.6 ft/s across three sensitivity levels. The pre-installed CR123A battery gives up to 3 years of operation, and Jeweller radio reaches up to 5,550 ft in open space.
Two sensors gather twice the information of a single-element detector, so the device responds whether the intruder is running or moving slowly. Mounted upside down it ignores pets while still covering the opening. An IP54 enclosure suits unheated spaces such as garages. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the white finish. The same device in black is stocked as 42824.36.BL3.
Features
- Narrow-beam curtain motion detector for windows, doors and valuables
- Optical system of two PIR sensors and a multifaceted mirror
- Detection distance: 19.7–49 ft (Correlation Signal Processing disabled)
- Detection distance: 19.7–26 ft (Correlation Signal Processing enabled)
- Detection angles: 6° horizontal × 90° vertical
- Pet immunity when the detector is installed upside down
- Temperature compensation from 14 °F to 104 °F
- 3 adjustable sensitivity levels
- IP54 enclosure for unheated indoor spaces
- Up to 3 years on the pre-installed CR123A battery
- Up to 5,550 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel and optional angle mount
- Available in white and black finishes
Specifications
| Technical | |
|---|---|
| Sensitive Element | 2 × PIR sensor with multifaceted mirror |
| Motion Detection Distance | 19.7–49 ft (Correlation Signal Processing disabled) | 19.7–26 ft (enabled) |
| Motion Detection Angles | Horizontal: 6° | Vertical: 90° |
| Motion Detection Speed | From 1.0 to 6.6 ft/s |
| Sensitivity | 3 levels, adjustable |
| Pet Immunity | Install the detector upside down |
| Temperature Compensation | 14 °F to 104 °F |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,550 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR123A (pre-installed), type C |
| Battery Manufacturer | Huiderui (UL listed) |
| Operating Voltage | 2.1–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 41 μA | Maximum: 60.4 mA |
| Full Battery Capacity | 1,600 mAh |
| Low / End-of-Life Battery Voltage | 2.5 V DC / 2.1 V DC |
| Calculated Battery Life | Up to 3 years |
| Dimensions | 5.28" × 1.73" × 1.34" (without bracket) | 5.28" × 2.05" × 1.61" (with bracket) |
| Weight | 4.16 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP54 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
