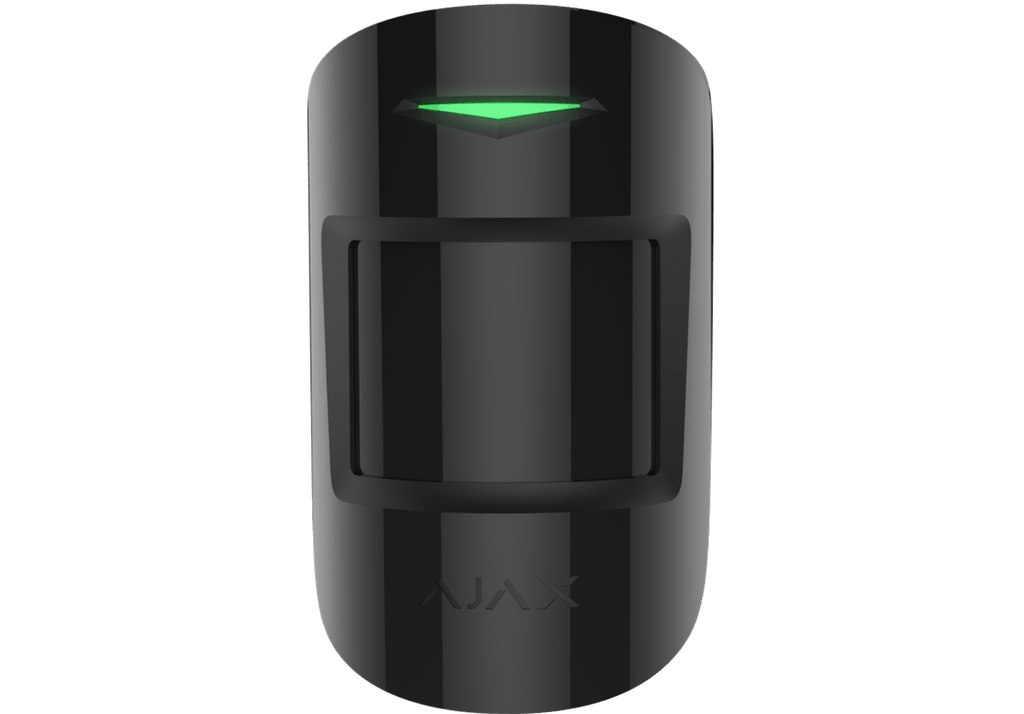

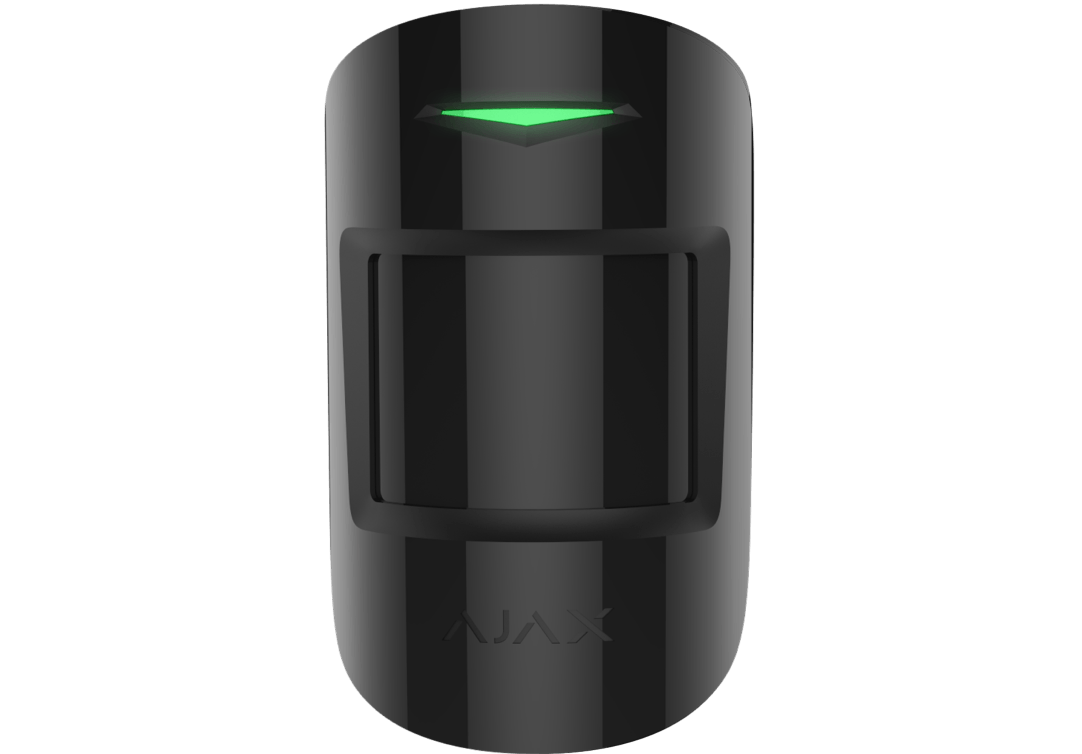

Ajax 42822.09.BL3 MotionProtect (9NA) UPC black
Product Details
MotionProtect Jeweller is a wireless indoor IR motion detector that notifies of an intrusion into a home or office. It detects a person by the temperature difference against background thermal radiation, and mounts on the wall in front of doors and other entry points.
Motion is detected at up to 39 ft with an 88.5° horizontal angle, at movement speeds from 1 to 6.6 ft/s, across three adjustable sensitivity levels. Pet immunity covers animals up to 44 lb in weight and 1.6 ft in height when the detector is installed correctly. The pre-installed CR123A battery gives up to 5 years of operation, and Jeweller radio reaches up to 5,600 ft in open space.
All Ajax motion detectors use PIR sensors by Excelitas Technologies, an American manufacturer specializing in optronic components since 1931. Ajax tests 100% of manufactured devices at the production stage. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 42823.09.WH3.
Features
- Wireless IR motion detector for indoor installation
- Motion detection distance: up to 39 ft at 7.9 ft installation height
- Horizontal detection angle: 88.5°
- Pet immunity: animals up to 44 lb and below 1.6 ft in height
- SmartDetect software algorithm filters thermal interference
- Temperature compensation keeps detection effective from 14 °F to 104 °F
- 3 adjustable sensitivity levels
- Up to 5 years on the pre-installed CR123A battery
- Up to 5,600 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel — no enclosure disassembly
- QR code pairing and remote configuration from the Ajax apps
- Available in white and black glossy finishes
Specifications
| Technical | |
|---|---|
| Sensitive Element | PIR sensor (Excelitas Technologies) |
| Motion Detection Distance | Up to 39 ft (at 7.9 ft installation height) |
| Motion Detection Angle | Horizontal: 88.5° |
| Motion Detection Speed | From 1 to 6.6 ft/s |
| Sensitivity | 3 levels, adjustable |
| Pet Immunity | Weight up to 44 lb, height up to 1.6 ft |
| False Alarm Prevention | SmartDetect software algorithm |
| Temperature Compensation | 14 °F to 104 °F |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,600 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR123A (pre-installed), type C |
| Operating Voltage | 2.1–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 34.5 μA | Maximum: 61 mA |
| Full Battery Capacity | 1,600 mAh |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 4.33" × 2.56" × 1.97" |
| Weight | 3.03 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colors | White, Black |
| Complete Set | MotionProtect Jeweller, SmartBracket mounting panel, CR123A battery (pre-installed), installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
