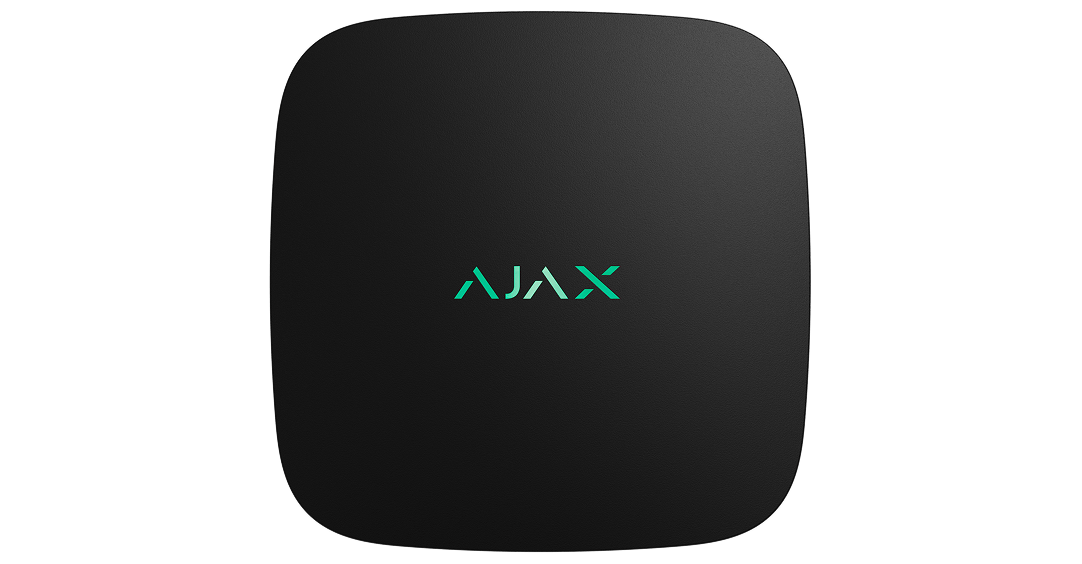

Ajax 42817.08.BL3 LeaksProtect (9NA) UPC black
Product Details
LeaksProtect Jeweller is a wireless water leak detector that monitors 24/7 and reports an escape of water before it becomes damage. It is small enough to sit behind a washing machine, under a sink or beside a boiler, which is where leaks actually start.
Contact pairs on all four sides detect water arriving from any direction, and detection takes 0.15 s. The IP65 enclosure tolerates up to 100% humidity and an operating range of 32 °F to 122 °F. Two pre-installed AAA batteries last up to 5 years, and Jeweller radio reaches up to 4,250 ft in open space.
Up to 250 detectors can run in a single Ajax system, so a whole building's wet areas are covered from one hub. A leak can trigger Ajax WaterStop Jeweller to close the supply automatically, which turns a notification into an actual stopped flood. No mounting or tools are needed: the detector sits on a horizontal surface wherever a leak would first appear. It pairs with the hub by scanning a QR code and is configured remotely from the Ajax apps. Supplied in the black finish. The same device in white is stocked as 42818.08.WH3.
Features
- Wireless water leak detector for 24/7 monitoring
- Contact pairs on all four sides detect water from any direction
- Detection time: within 0.15 s
- IP65 enclosure, operating humidity up to 100%
- No mounting or tools required — place it where a leak would appear
- Up to 250 detectors in a single Ajax system
- Triggers Ajax WaterStop Jeweller to shut off the water supply automatically
- Up to 5 years on two pre-installed AAA batteries
- Up to 4,250 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- Remote configuration from the Ajax apps
- Available in white and black finishes
Specifications
| Technical | |
|---|---|
| Detection Time | Within 0.15 s |
| Detection Method | Contact pairs on all four sides of the device |
| Monitoring | Always active, 24/7/365 |
| Tool-Free Installation | Yes |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 4,250 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 2 × AAA (pre-installed), type C |
| Battery Manufacturer | Huiderui, Energizer |
| Operating Voltage | 2.1–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 14 μA | Maximum: 33 mA |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 2.44″ × 2.44″ × 0.55″ |
| Weight | 1.45 oz |
| Operating Temperature Range | 32 °F to 122 °F |
| Operating Humidity | Up to 100% |
| Protection Class | IP65 |
| Colors | White, Black |
| Complete Set | LeaksProtect Jeweller, 2 × AAA batteries (pre-installed), quick start guide |
| Warranty | 24 months |
Specifications subject to change.
