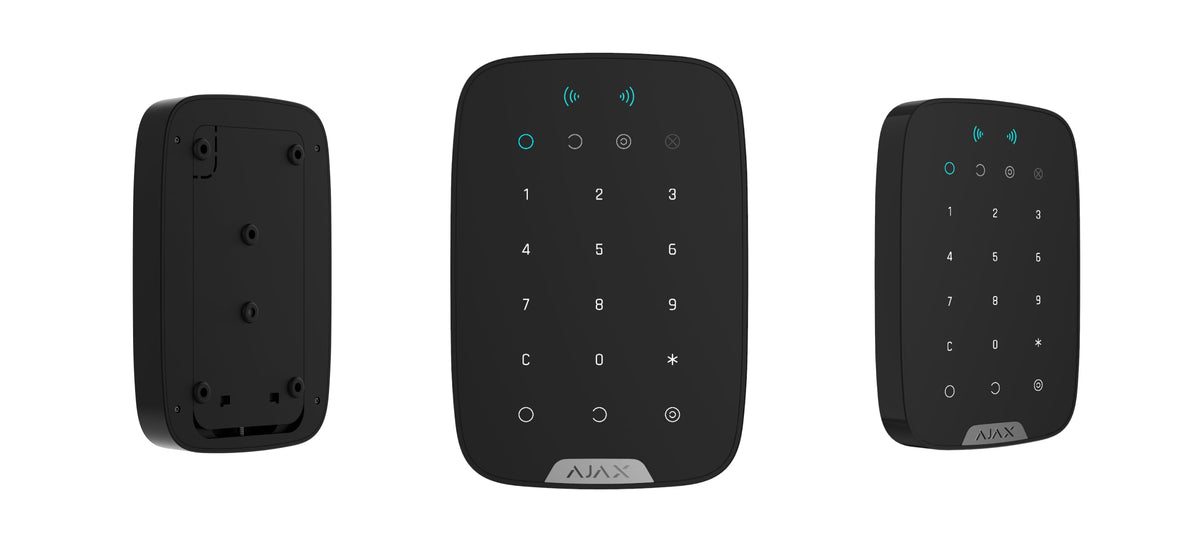

Ajax 42815.83.BL3 Keypad Plus (9NA) UPC black
Product Details
KeyPad Plus Jeweller is a wireless touch keypad that adds contactless credentials to code entry: Pass cards and Tag key fobs using DESFire technology with 128-bit encryption. A card on a lanyard is faster than a code and harder to shoulder-surf, which matters on a door staff use dozens of times a day.
It holds up to 200 personal access codes, a keypad code, up to 200 duress codes and up to 99 codes for unregistered people, and supports DESFire EV1 and EV2 credentials. Four pre-installed AA batteries last up to 3.5 years and Jeweller radio reaches 5,600 ft in open space.
A built-in panic button raises an alarm from the keypad itself, and a duress code disarms while silently signaling the monitoring station. Three or more wrong entries within a minute lock the keypad for 3 to 180 minutes. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 42816.83.WH3.
Features
- Wireless capacitive touch keypad with contactless credential support
- Authentication via Pass cards, Tag key fobs and codes
- DESFire EV1 and EV2 with 128-bit encryption
- Up to 200 personal access codes plus 1 keypad code
- Up to 200 duress codes and up to 99 unregistered-user codes
- Built-in panic button
- Auto-wake on entry delay (firmware 5.60.7.0 or later)
- Security group and Night Mode management
- Lockout of 3–180 minutes after 3 or more incorrect entries in one minute
- Up to 3.5 years on four pre-installed AA batteries
- Up to 5,600 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- Available in white and black
Specifications
| Technical | |
|---|---|
| Sensor Type | Capacitive |
| Control Methods | Codes, Pass cards, Tag key fobs |
| Contactless Access | DESFire EV1, EV2 |
| Access Codes | Up to 200 personal codes, 1 keypad code |
| Duress Codes | Up to 200 personal codes, 1 keypad code |
| Codes for Unregistered People | Up to 99 personal codes |
| Functional Button Modes | Alarm, mute fire alarm, off |
| Protection Against Code Guessing | 3–180 minute lockout after 3 or more incorrect entries within 1 minute |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,600 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 4 × AA (pre-installed), type C |
| Battery Manufacturer | Huiderui (UL listed) and Energizer |
| Operating Voltage | 2.25–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 0.064 mA | Maximum: 165 mA |
| Full Battery Capacity | 12,000 mAh |
| Low / Recovery / End-of-Life Battery Voltage | 2.5 V DC / 2.7 V DC / 2.25 V DC |
| Calculated Battery Life | Up to 3.5 years |
| Dimensions | 6.50″ × 4.45″ × 0.79″ |
| Weight | 9.42 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Colors | White, Black |
| Complete Set | KeyPad Plus Jeweller, SmartBracket mounting panel, 4 × AA batteries (pre-installed), installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
