Description

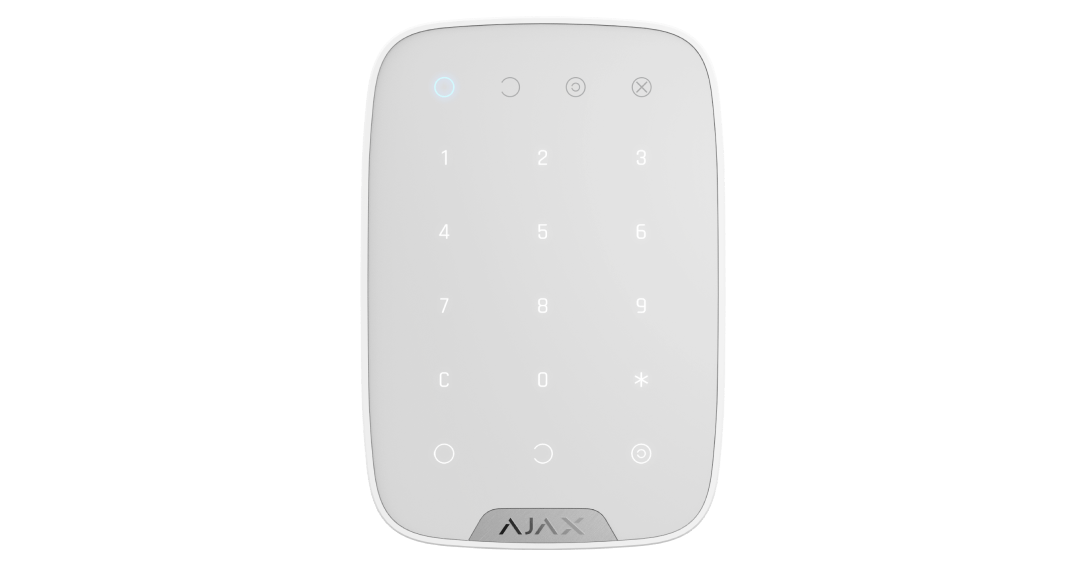

Ajax 42814.12.WH3 Keypad (9NA) UPC white
Product Details

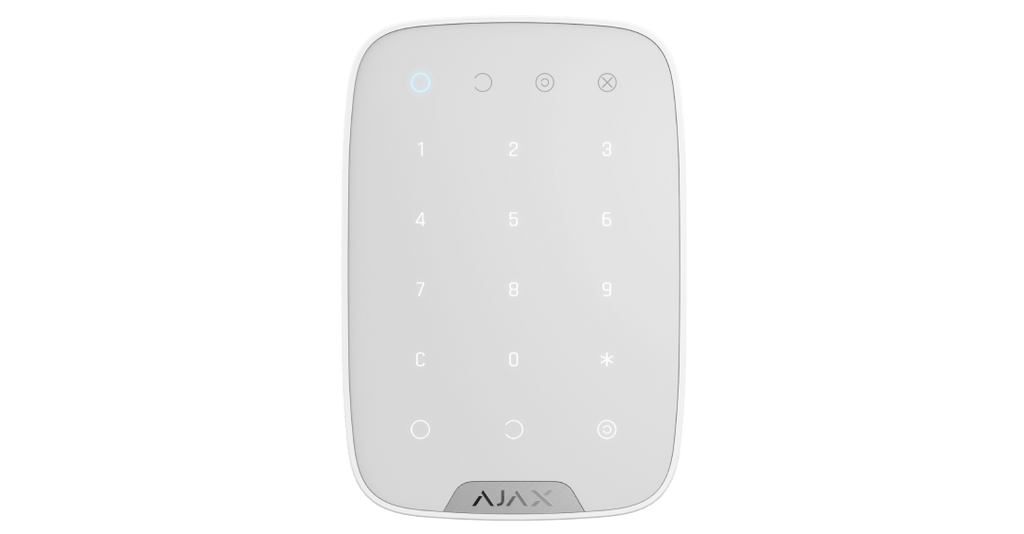

KeyPad Jeweller is a wireless touch keypad for arming and disarming an Ajax system. It mounts by the entrance door so the system can be operated without reaching for a phone, and its indication shows the current security mode, detector faults and loss of communication with the hub.
The capacitive keypad holds up to 200 personal access codes, a keypad code, up to 200 duress codes and up to 99 codes for people not registered in the Ajax system. A functional button can be set to raise an alarm, mute a fire alarm, or do nothing. Four pre-installed AAA batteries last up to 2 years and Jeweller radio reaches 5,500 ft in open space.
A duress code disarms the system while silently signalling the monitoring station — the answer to being forced to open up. Three or more wrong entries lock the keypad for 3 to 180 minutes, which is what stops code guessing. It is EN 50131 Grade 2 and UL/ULC certified. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the white finish. The same device in black is stocked as 42813.12.BL3.
Features
- Wireless capacitive touch keypad for arming and disarming
- Up to 200 personal access codes plus 1 keypad code
- Up to 200 duress codes for forced-disarm situations
- Up to 99 codes for people not registered in the Ajax system
- Functional button: alarm, mute fire alarm, or off
- Group security management
- Lockout of 3–180 minutes after 3 or more incorrect entries
- LED indication of security mode and malfunctions
- Up to 2 years on four pre-installed AAA batteries
- Up to 5,500 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- EN 50131 Grade 2, UL/ULC certified, ACE type B
- Available in white and black
Specifications
| Technical | |
|---|---|
| Sensor Type | Capacitive |
| Access Codes | Up to 200 personal codes, 1 keypad code |
| Duress Codes | Up to 200 personal codes, 1 keypad code |
| Codes for Unregistered People | Up to 99 personal codes |
| Functional Button Modes | Alarm, mute fire alarm, off |
| Group Security Management | Yes |
| Malfunction and Security Mode Indication | LED notification |
| ACE Type | Type B |
| Protection Against Code Guessing | 3–180 minute lockout after 3 or more incorrect entries |
| Security Grade | Grade 2 (EN 50131), UL/ULC certified |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 4 × AAA (pre-installed), type C |
| Battery Manufacturer | Huiderui (UL listed) |
| Operating Voltage | 1.9–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 86.5 μA | Maximum: 225 mA |
| Full Battery Capacity | 2,000 mAh |
| Low / End-of-Life Battery Voltage | 2.15 V DC / 1.9 V DC |
| Calculated Battery Life | Up to 2 years |
| Dimensions | 5.90″ × 4.05″ × 0.55″ |
| Weight | 6.95 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
