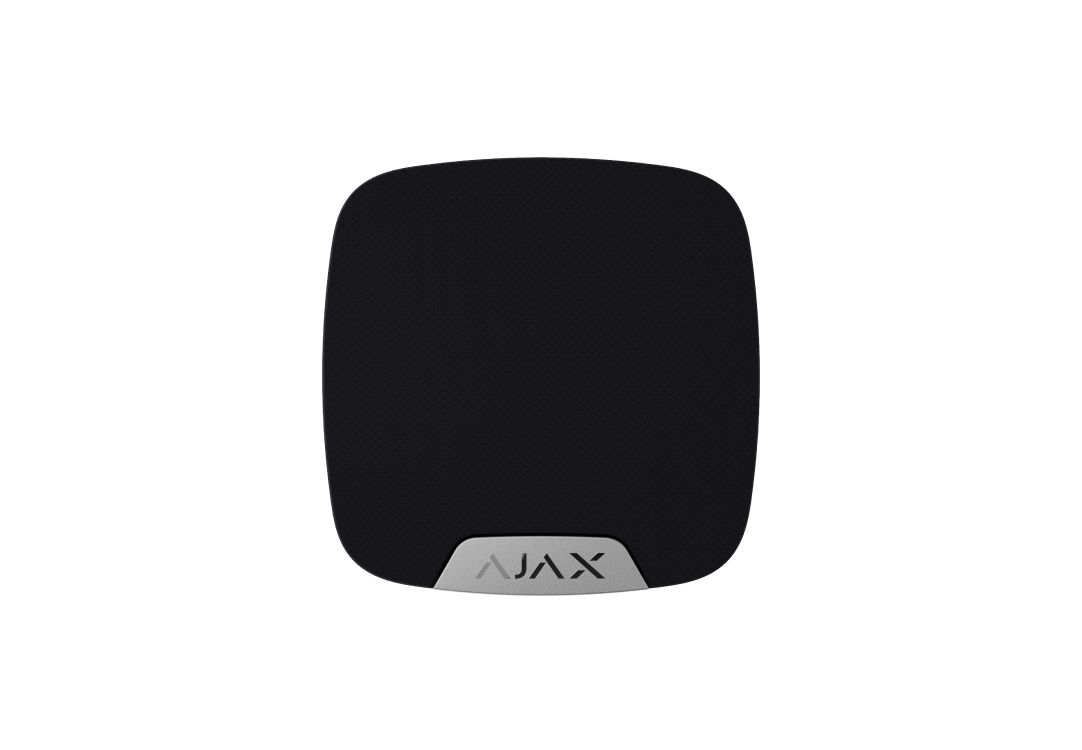

Ajax 42808.11.BL3 HomeSiren (9NA) UPC black
Product Details
HomeSiren Jeweller is an indoor wireless siren that does more than sound an alarm. It also works as a security status indicator, sounds a chime when a door opens while the system is disarmed, and shows entry and exit delays and after-alarm state on its LED.
Alarm volume is adjustable from 80 to 100 dB at 3.3 ft, defaulting to 93 dB, with a siren frequency of 3.4 ± 0.5 kHz and a duration from 3 seconds to 3 minutes. Jeweller radio reaches up to 6,500 ft in open space and two pre-installed CR123A batteries last up to 5 years.
A third-party LED can be wired in parallel at 3 V DC to put an indicator somewhere the siren itself is not — over a door, say, or behind a counter. Mount it indoors at 8.2 ft or higher, out of easy reach. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 42809.11.WH3.
Features
- Indoor wireless siren with acoustic and LED indication
- Adjustable alarm volume: 80–100 dB at 3.3 ft (93 dB default)
- Adjustable alarm duration: 3 seconds to 3 minutes
- Siren sound frequency: 3.4 ± 0.5 kHz
- Built-in LED indicator for security status and after-alarm state
- Connection for a third-party LED indicator (3 V DC, parallel)
- Chime feature when an opening detector triggers while disarmed
- Indicates alarms, entry/exit delays and security mode changes
- Up to 5 years on two pre-installed CR123A batteries
- Up to 6,500 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel — no enclosure disassembly
- Available in white and black finishes
Specifications
| Technical | |
|---|---|
| Alarm Type | Acoustic and LED indication |
| Warning Device Type | Type W (internal, self-powered) |
| Alarm Volume | 80–100 dB at 3.3 ft, adjustable | 93 dB default |
| Alarm Duration | From 3 seconds to 3 minutes |
| Siren Sound Frequency | 3.4 ± 0.5 kHz |
| Additional LED Connection | 3 V DC, parallel |
| Events Indication | Alarms, entry and exit delays, security mode changes |
| Chime | Yes, for opening detector notifications when disarmed |
| Installation | Indoor use only, recommended height 8.2 ft or higher |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 6,500 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 2 × CR123A (pre-installed) |
| Battery Manufacturer | Huiderui (UL listed) |
| Operating Voltage | 1.9–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 68 μA | Average: 50 mA (default volume) | Peak: 1.1 A (Very Loud) |
| Full Battery Capacity | 3,200 mAh (1,600 mAh per battery) |
| Low / End-of-Life Battery Voltage | 2.1 V DC / 1.9 V DC (device switches off) |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 2.95″ × 2.99″ × 1.06″ |
| Weight | 3.42 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colors | White, Black |
| Complete Set | HomeSiren Jeweller, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), LED connector, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
