Description

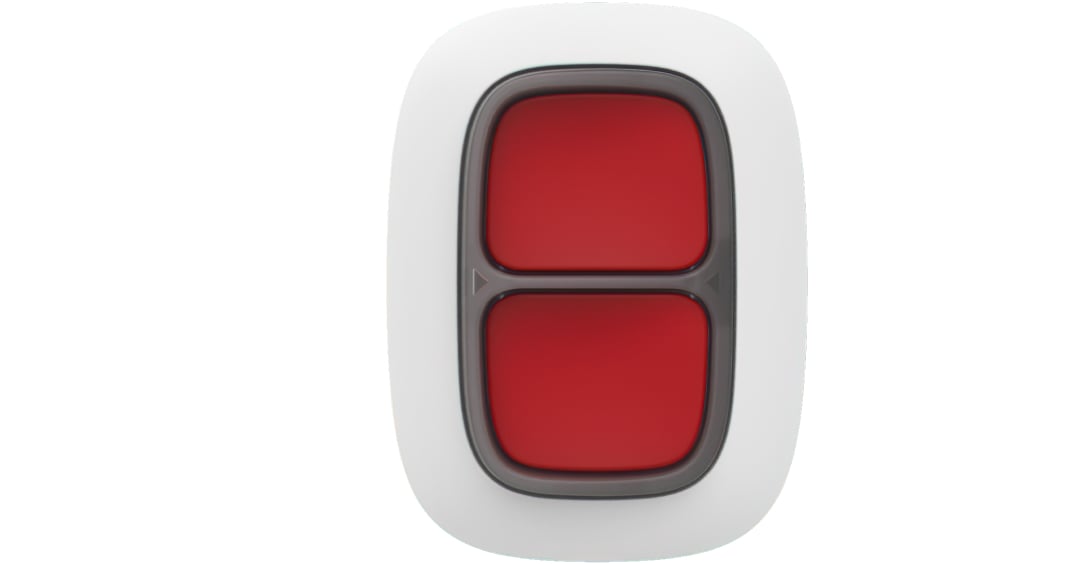

Ajax 42802.79.WH3 DoubleButton (9NA) UPC white
Product Details
DoubleButton Jeweller is a wireless hold-up device that requires both buttons to be pressed together before it raises an alarm. A plastic divider between them means a knock, a dropped bag or a sleeve cannot do it — which is why this, rather than a single button, is the device for a till, a pharmacy counter or a reception desk where a false hold-up alarm means an unnecessary dispatch.
An alarm can be confirmed by one DoubleButton or by several, and pressing it can trigger an automation scenario as well as the alarm. The LED backlight brightness is set in the Ajax apps. The pre-installed CR2032 battery lasts up to 5 years and Jeweller radio reaches 1,000 ft in open space.
The IP55 enclosure resists dust and splashes, and the buttons are built for thousands of presses. A tamper button reports unmounting, all stored and transmitted data uses block encryption with a dynamic key, and the hub authenticates each device's unique parameters at every communication session. Supplied in the white finish. The same device in black is stocked as 42801.79.BL3.
Features
- Wireless hold-up device requiring both buttons pressed together
- Protective plastic divider prevents accidental presses
- Alarm confirmation with one DoubleButton or several
- Alarm scenario triggered by pressing
- LED backlight with brightness adjustable in the Ajax apps
- Buttons rated for thousands of presses
- Up to 5 years on the pre-installed CR2032 battery
- Up to 1,000 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Jamming and connection loss notifications
- IP55 waterproof and dust-resistant enclosure
- Available in white and black
Specifications
| Technical | |
|---|---|
| Number of Buttons | 2 |
| Accidental Press Protection | Both buttons must be pressed, with a protective plastic divider |
| Alarm Confirmation | With one DoubleButton or several |
| LED Backlight | Adjustable brightness in the Ajax apps |
| Alarm Scenario | Triggered by DoubleButton press |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 1,000 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR2032 (pre-installed) |
| Battery Manufacturer | Panasonic |
| Operating Voltage | 1.8–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 0.54 μA | Maximum: 34.8 mA |
| Full Battery Capacity | 235 mAh |
| Low / End-of-Life Battery Voltage | 2.2 V DC / 1.8 V DC |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 1.85″ × 1.38″ × 0.63″ |
| Weight | 0.60 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP55 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
