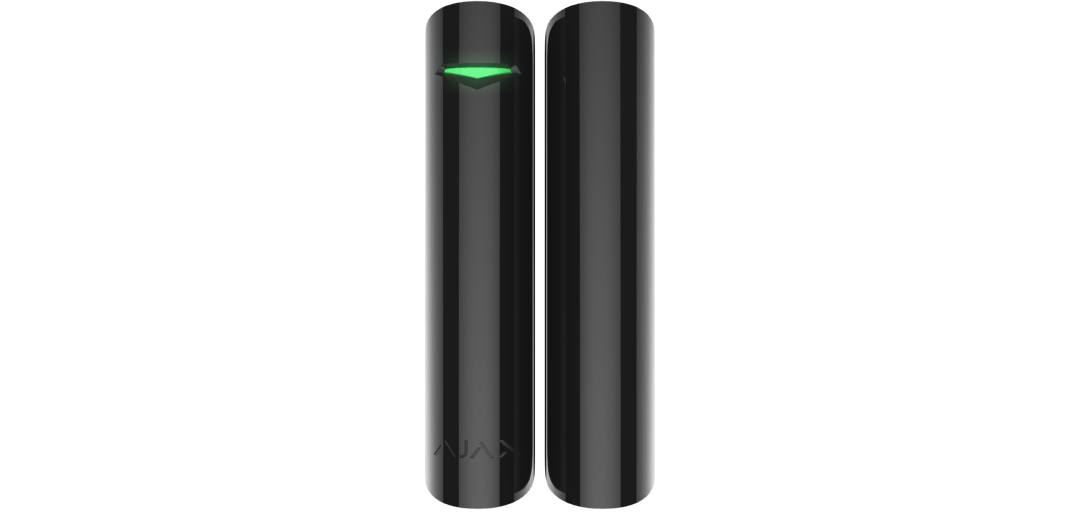

Ajax 42797.03.BL3 DoorProtect (9NA) UPC black
Product Details
DoorProtect Jeweller is a wireless reed-switch opening detector for doors, windows and skylights. It reports the moment a protected opening is separated from its magnet, which is the simplest and most reliable way to catch an intrusion at the point of entry.
The British-made reed switch is rated for more than 2 million openings and sits in a sealed plastic capsule. Two magnet sizes ship in the box so the detector fits narrow window and door frames as well as standard ones, and vibrations shorter than 0.15 s are ignored so contact chatter does not raise an alarm. Jeweller radio reaches up to 3,900 ft in open space and the pre-installed CR123A battery lasts up to 7 years.
Terminals accept a third-party wired detector with a normally closed (NC) contact, so an existing sensor can be brought onto the Ajax system through this device rather than replaced. The Chime feature turns it into a doorbell: with the system disarmed, an opening plays one of four short beep patterns through the hub and sirens. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 42798.03.WH3.
Features
- Wireless reed-switch opening detector for doors, windows and skylights
- British-made reed switch rated for over 2 million openings
- Two magnet sizes included for narrow and standard frames
- Protection against reed switch chattering: vibrations up to 0.15 s ignored
- Chime feature with four selectable beep patterns when disarmed
- Input for a third-party wired detector with NC contact type
- Up to 7 years on the pre-installed CR123A battery
- Up to 3,900 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel — no enclosure disassembly
- QR code pairing and remote configuration from the Ajax apps
- Available in white and black glossy finishes
Specifications
| Technical | |
|---|---|
| Sensitive Element | 1 × reed switch |
| Magnets | Small and big magnet included |
| Protection Against Reed Switch Chattering | Vibrations lasting up to 0.15 s are ignored |
| Input for Additional Detector | Wired detector with normally closed (NC) contact type |
| Chime | Yes, when the system is disarmed |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 3,900 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR123A (pre-installed), type C |
| Nominal Operating Voltage | 3 V DC |
| Current Consumption | Quiescent: 17.5 μA | Maximum: 21.4 mA |
| Low / End-of-Life Battery Voltage | 2.5 V DC / 2.1 V DC |
| Calculated Battery Life | Up to 7 years |
| Detector Dimensions | 3.54″ × 0.79″ × 0.79″ |
| Big Magnet Dimensions | 3.54″ × 0.79″ × 0.79″ |
| Small Magnet Dimensions | 2.16″ × 0.43″ × 0.24″ |
| Weight | 1.02 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colors | White, Black |
| Complete Set | DoorProtect Jeweller, SmartBracket mounting panel, CR123A battery (pre-installed), big magnet, small magnet, outside-mounted terminal clamp, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
