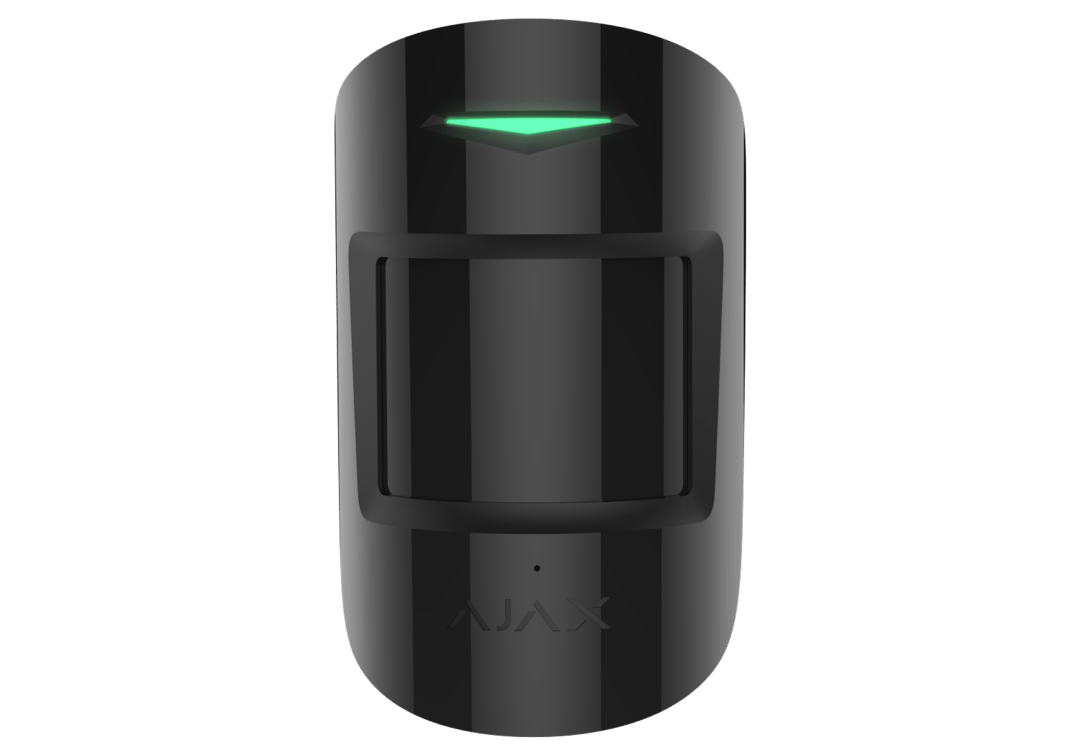

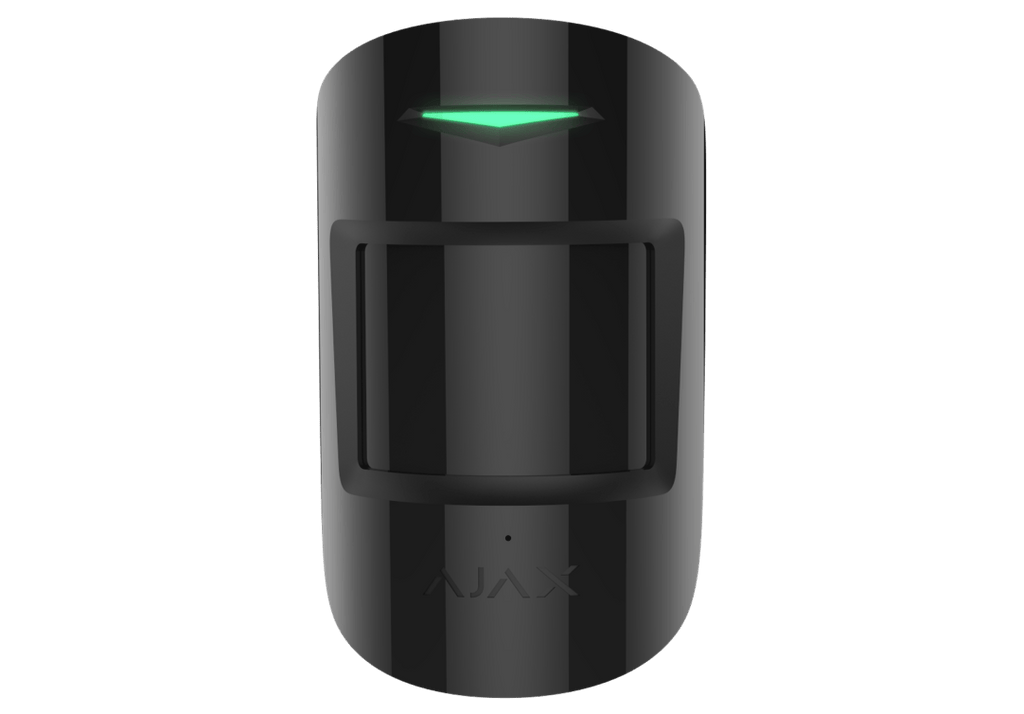

Ajax 42795.06.BL3 CombiProtect (9NA) UPC black
Product Details
CombiProtect Jeweller combines a wireless IR motion detector and a glass break detector in one enclosure. It reports intrusion through doors and windows and monitors the integrity of the glass at the same time, which covers an opening with one device and one battery instead of two.
Motion is detected at up to 39 ft with an 88.5° horizontal angle; glass break is detected from 1 to 30 ft across a 180° angle, on panes from 11″ × 11″ upward. Both sensors have three independent sensitivity levels, and pet immunity covers animals up to 44 lb and 1.6 ft in height. The pre-installed CR123A battery gives up to 5 years of operation, and Jeweller radio reaches up to 3,900 ft in open space.
Glass break uses a sensitive electret microphone and the DualTone digital algorithm: the device must hear the dull low-frequency sound of the impact followed by the ringing high-frequency sound of breaking glass within 1.5 seconds before it raises an alarm, which is what keeps dropped objects and slammed doors from triggering it. The SmartBracket panel lets an installer mount the device on the wall without disassembling the enclosure, and the detector pairs with the hub by scanning a QR code. Correct installation at a height of 2.4 m with the lens perpendicular to the likely intrusion path is what delivers the stated detection pattern and pet immunity. It can be reconfigured remotely from the Ajax apps without a site visit. Supplied in the black finish. The same device in white is stocked as 42796.06.WH3.
Features
- Wireless IR motion detector and glass break detector in one device
- Motion detection distance: up to 39 ft, horizontal angle 88.5°
- Glass break detection: 1 to 30 ft across a 180° angle
- Minimum glass size: 11″ × 11″; works with tempered, laminated, wired, insulated and annealed glass
- DualTone two-stage algorithm verifies impact and breakage within 1.5 seconds
- Pet immunity: animals up to 44 lb and below 1.6 ft in height
- SmartDetect software algorithm filters thermal interference
- Temperature compensation from 14 °F to 104 °F
- 3 independent sensitivity levels for motion and for glass break
- Up to 5 years on the pre-installed CR123A battery
- Up to 3,900 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Tamper alarm and device authentication against spoofing
- SmartBracket mounting panel — no enclosure disassembly
- Available in white and black glossy finishes
Specifications
| Technical | |
|---|---|
| Sensitive Element (Motion) | PIR sensor (Excelitas Technologies) |
| Motion Detection Distance | Up to 39 ft |
| Motion Detection Angle | Horizontal: 88.5° |
| Motion Detection Speed | From 1 to 6.6 ft/s |
| Motion Sensitivity | 3 levels, adjustable |
| Pet Immunity | Weight up to 44 lb, height up to 1.6 ft |
| False Alarm Prevention (Motion) | SmartDetect software algorithm |
| Temperature Compensation | 14 °F to 104 °F |
| Sensitive Element (Glass Break) | Electret microphone |
| Glass Break Detection Distance | From 1 to 30 ft |
| Glass Break Detection Angle | Horizontal: 180° |
| Glass Break Sensitivity | 3 levels, adjustable |
| False Alarm Prevention (Glass Break) | DualTone two-factor software algorithm |
| Minimum Glass Size | 11″ × 11″ |
| Glass Types Supported | Standard pane, tempered, laminated, wired, insulated and annealed glass |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 3,900 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR123A (pre-installed), type C |
| Battery Manufacturer | Huiderui or Duracell |
| Operating Voltage | 2.1–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 38 μA | Maximum: 60 mA |
| Full Battery Capacity | 1,600 mAh |
| Low / End-of-Life Battery Voltage | 2.5 V DC / 2.1 V DC |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 4.33″ × 2.56″ × 1.97″ |
| Weight | 3.44 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP50 |
| Colors | White, Black |
| Complete Set | CombiProtect Jeweller, SmartBracket mounting panel, CR123A battery (pre-installed), installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
