Description

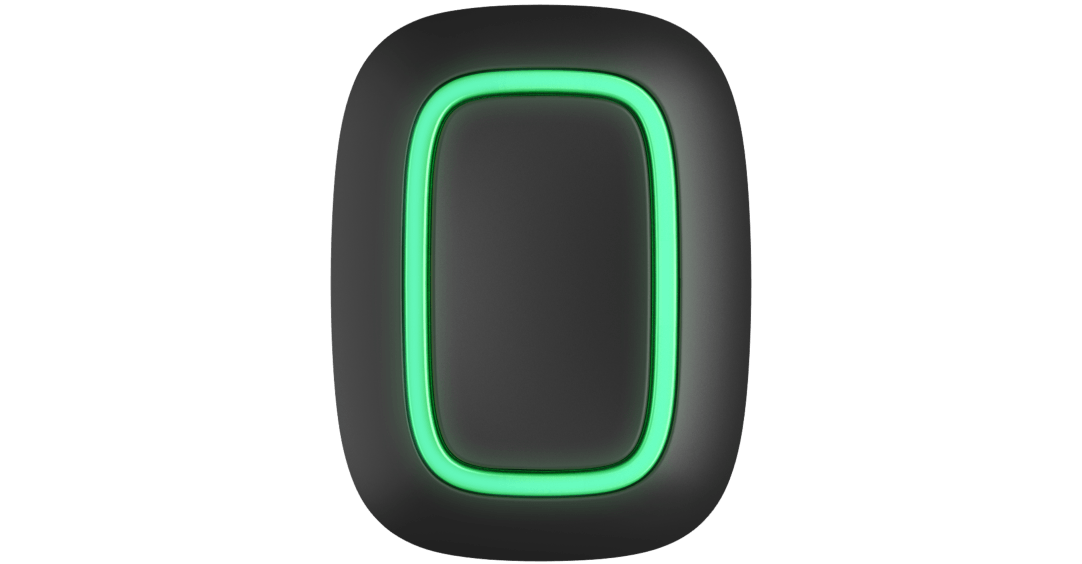

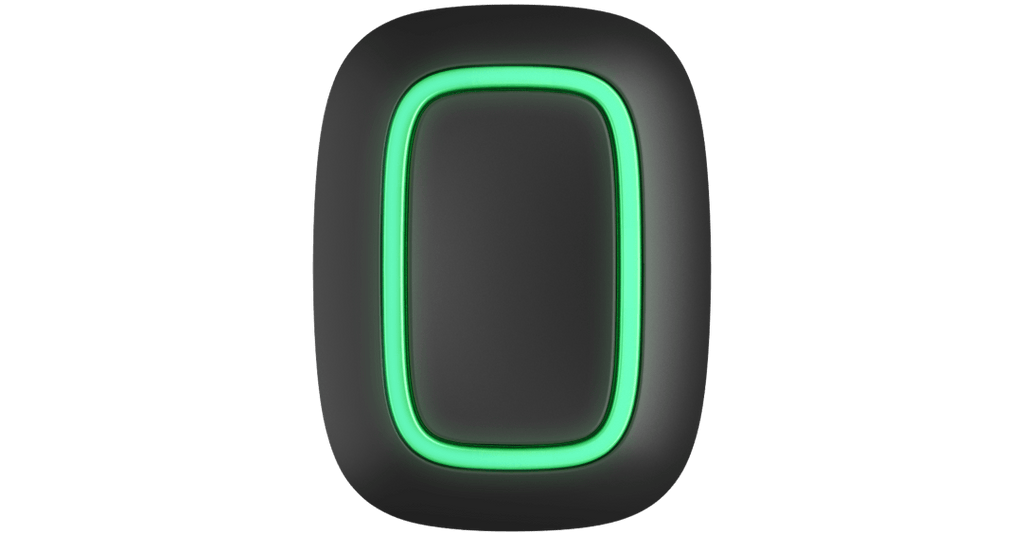

Ajax 42793.26.BL3 Button (9NA) UPC black
Product Details
Button Jeweller is a wireless panic button that also works as a smart button. It runs in three modes: panic, control of automation devices, or muting a fire alarm — so the same hardware is a hold-up button behind a counter or a one-press light switch, depending on how it is configured.
The alarm type is selectable from intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage and custom. An adjustable-brightness LED confirms the press. The pre-installed CR2032 battery lasts up to 5 years, with a daily automatic battery check that needs no button press, and Jeweller radio reaches 1,000 ft in open space.
Accidental-press protection requires a long or double press. The IP55 enclosure resists dust and splashes, and the button can be carried loose or fixed in place with the Holder accessory, sold separately. Supplied in the black finish. The same device in white is stocked as 42794.26.WH3.
Features
- Wireless panic button with three operating modes
- Modes: panic, automation control, mute fire alarm
- Selectable event type: intrusion, fire, auxiliary, panic, gas, malfunction, leakage or custom
- Accidental press protection by long or double press
- LED backlight with adjustable brightness
- Daily automatic battery check without pressing the button
- Up to 5 years on the pre-installed CR2032 battery
- Up to 1,000 ft radio range with an Ajax hub or range extender
- Jeweller encrypted two-way radio with frequency hopping
- Device authentication against spoofing
- IP55 waterproof and dust-resistant enclosure
- Portable, or mountable with the Holder accessory (sold separately)
- Available in white and black
Specifications
| Technical | |
|---|---|
| Number of Buttons | 1 |
| Adjustable Event Types | Intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, custom |
| LED Backlight | Yes, adjustable brightness |
| Protection Against Accidental Pressing | Long or double press required |
| Supervising Feature | Daily battery status updates (OS Malevich 2.16 or later) |
| Communication Technology | Jeweller — proprietary two-way wireless protocol for commands, alarms and events |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz (region-dependent) |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 1,000 ft (open space) |
| Encrypted Communication | Block encryption with dynamic key |
| Frequency Hopping | Yes, to prevent radio interference and jamming |
| Tamper Alarm | Notifications on detachment or removal attempts |
| Protection Against Spoofing | Device authentication at each communication session |
| Communication Loss Detection | After 36 s (3 data packages in 12 seconds) |
| Physical | |
|---|---|
| Battery | 1 × CR2032 (pre-installed), type C |
| Battery Manufacturer | Panasonic or Renata (UL listed) |
| Operating Voltage | 1.8–3.3 V DC | Nominal: 3 V DC |
| Current Consumption | Quiescent: 0.5 μA (auto-check off) / 2.02 μA (auto-check on) | Maximum: 27.8 mA |
| Full Battery Capacity | 235 mAh |
| Low / Recovery / End-of-Life Battery Voltage | 2.2 V DC / 2.3 V DC / 1.8 V DC |
| Calculated Battery Life | Up to 5 years |
| Dimensions | 1.85″ × 1.38″ × 0.51″ |
| Weight | 0.56 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP55 |
| Colors | White, Black |
| Complete Set | Button Jeweller, CR2032 battery (pre-installed), quick start guide |
| Warranty | 24 months |
Specifications subject to change.
