Ajax 42790.78.NC 6V PSU for Hub 2 UPC
Product Details

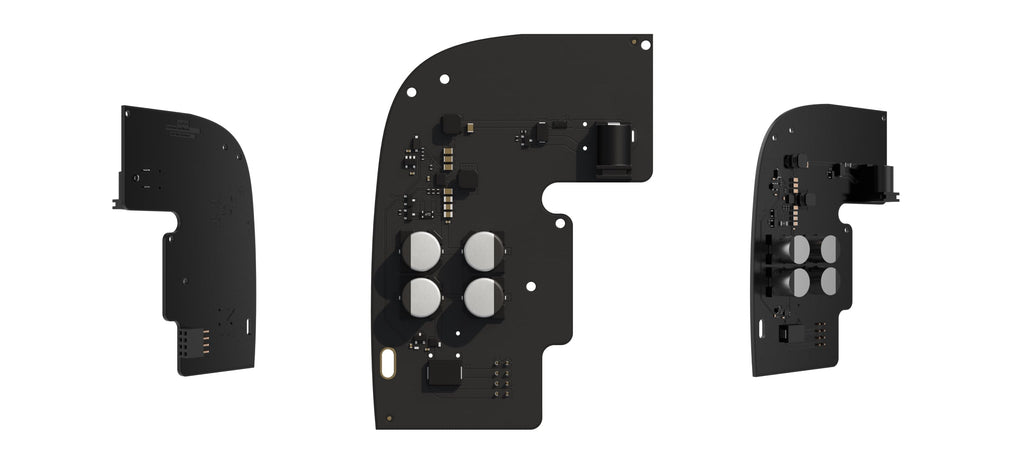

The 6V PSU (type A) is a replacement power board that lets an Ajax hub or range extender run from a low-voltage DC source instead of mains. It takes 4.2 to 10 V and delivers a regulated 4.8 V at up to 1.5 A to the hub.
It fits inside the hub or range extender enclosure in place of the standard 110/230 V board, so nothing hangs outside the case. The usual reasons to fit one are a site running on a battery bank or solar, a vehicle installation, or a location where a mains socket is not available where the hub has to go.
It is an electronic board and Ajax is explicit that it should be installed by a qualified electrician only. Compatible with Hub 2, Hub 2 Plus and ReX 2; the higher-voltage 12-24V PSU (type A) covers 8 to 32 V inputs if the source is a 12 or 24 V supply rather than a low-voltage battery.
Features
- Replacement power board for Hub 2, Hub 2 Plus and ReX 2
- Input 4.2–10 V⎓ from a portable battery or other low-voltage source
- Regulated output 4.8 V⎓ ±3% at up to 1.5 A
- Fits inside the hub or range extender enclosure
- Replaces the standard 110/230 V power supply board
- Switch-on at 4.2 V⎓, switch-off at 3–3.4 V⎓ depending on load
- For battery, solar and vehicle installations
- Qualified electrician installation only
- Terminal adapter included
Specifications
| Technical | |
|---|---|
| Device Type | Power supply unit for operation of the device from a portable battery |
| Compatible Ajax Devices | Hub 2 | Hub 2 Plus | ReX 2 |
| Input Voltage Range | 4.2–10 V⎓ |
| Input Current | 2.2 A at 4.2 V⎓ | 0.8 A at 10 V⎓ |
| Output Voltage | 4.8 V⎓ ± 3% |
| Output Current | Up to 1.5 A |
| Switch-on Voltage | 4.2 V⎓ ± 0.5% |
| Switch-off Voltage | 3–3.4 V⎓, depending on load |
| Installation | Into the hub or range extender enclosure, replacing the bundled power supply board |
| Installation Requirement | Qualified electrician only |
| Connector | 0.26″ × 0.079″ slot | 0.23″ × 0.083″ plug |
| Physical | |
|---|---|
| Dimensions | 3.9″ × 2.8″ × 0.67″ |
| Weight | 0.917 oz |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Complete Set | 6V PSU (type A), terminal adapter, quick start guide |
| Certification and Compliance | EN IEC 63000:2018 (RoHS) | EN 55032:2015 | EN 55035:2017 | EN 62368-1:2014 | FIPS 197 |
| Warranty | 24 months |
Specifications subject to change.
