Ajax 172155.388. WH3 LifeQuality Lite Jeweller (9NA) white
Product Details
LifeQuality Lite Jeweller measures temperature and humidity. It does not measure CO₂ — that is the difference between it and the full LifeQuality, and it is what separates the two models.
What it gives up in CO₂ it gains in range and endurance. The temperature span runs from −22 °F to 122 °F, well below the full model's 32 °F floor, with stated accuracy at every band down to the bottom — so it reads a cold store, an unheated warehouse or an outbuilding, not just a room. Battery life reaches five years at room temperature, or about two and a half in sub-zero conditions.
Readings update at least once a minute, appear live in the Ajax apps and can drive automation scenarios or raise a notification when a threshold is crossed. That combination — wireless, long-lived, accurate below freezing — is what makes it a monitoring device for compliance records rather than comfort. Jeweller is Ajax's own two-way radio protocol: encrypted with a dynamic key, frequency-hopping to ride out interference, and continuously polled so a lost device is flagged within 36 seconds rather than going quiet unnoticed. Supplied in the white finish; the same monitor in black is stocked as 172156.388. BL3.
Features
- Measures temperature and humidity — no CO₂ sensor
- Temperature range −22 °F to 122 °F, including sub-zero
- Temperature accuracy ±0.36 °F from 32 to 122 °F, stated at every band to −22 °F
- Humidity range 0% to 100%, accuracy ±1.8% above 32 °F
- Readings update at least once per minute
- Live readings and charts in the Ajax apps
- Threshold notifications and automation scenarios
- Up to 5 years on two CR123A batteries at room temperature
- Up to 2.5 years in sub-zero conditions
- Suits cold stores, unheated warehouses and outbuildings
- Jeweller range up to 5,550 ft in open space

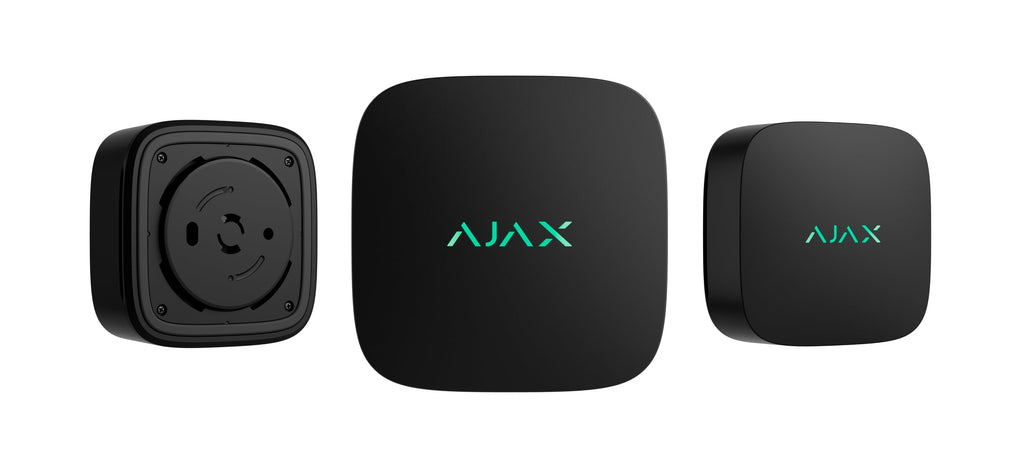

- Black and white finishes
Specifications
| Technical | |
|---|---|
| Device Type | Wireless temperature and humidity monitor |
| CO₂ Measurement | Not available — see LifeQuality Jeweller for CO₂ |
| Temperature Measurement Range | −22 °F to 122 °F |
| Temperature Accuracy | ±0.36 °F (32–122 °F) | ±0.54 °F (14–32 °F) | ±0.72 °F (−4–14 °F) | ±0.90 °F (−22 to −4 °F) |
| Temperature Pitch | 0.18 °F |
| Humidity Measurement Range | 0% to 100% |
| Humidity Accuracy | ±1.8% above 32 °F |
| Humidity Pitch | 1% |
| Update Frequency | At least once per minute |
| Battery Type | 2 × CR123A |
| Calculated Battery Life | Up to 5 years at room temperature | up to 2.5 years in sub-zero conditions |
| Communication Technology | Jeweller — proprietary two-way wireless protocol |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,550 ft in open space |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 3.03″ × 3.03″ × 1.36″ |
| Weight | 4.16 oz |
| Operating Temperature Range | −22 °F to 122 °F |
| Operating Humidity | Up to 85%, non-condensing |
| Complete Set | Device, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), installation kit, quick start guide |
| Certification and Compliance | EU Declaration of Conformity — RED, RoHS, EMC, LVD |
| Warranty | 24 months |
Specifications subject to change.
