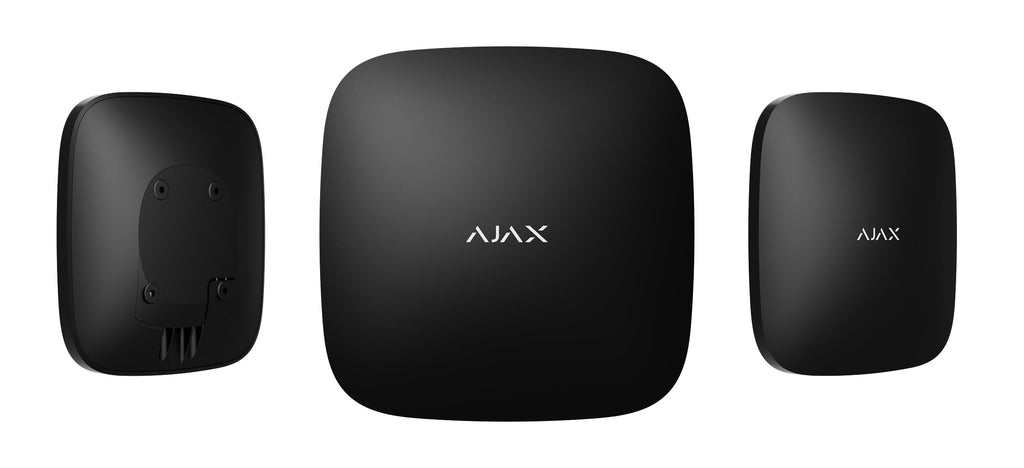

Ajax 168370.365.BL3 Takeover Module Jeweller (9NA) black
Product Details
Takeover Module Jeweller lets an Ajax hub adopt the wireless detectors a site already has. It listens on 319.5 MHz, 345 MHz and 433 MHz and speaks four protocols, so devices from Qolsys, Interlogix, Honeywell, Resideo, 2GIG, AT&T and DSC appear in the Ajax apps alongside Ajax's own.
That changes the economics of a replacement job. Instead of stripping out and rebinding every door contact and motion detector in a building, the panel is replaced and the existing wireless devices — up to 80 of them, within about 650 ft — carry on reporting through the module. The upgrade happens at the control end, and the field devices are replaced later, or not at all.
Worth being clear about scope: this module takes over third-party wireless devices on those three frequencies. It is not a wired-zone expander and does not accept hardwired loops. It runs on 12 V⎓ up to 1 A, with a built-in 1.8 Ah Li-ion battery holding it up for about 24 hours through a power cut, and reaches the hub at up to 6,550 ft. Jeweller is Ajax's own two-way radio protocol: encrypted with a dynamic key, frequency-hopping to ride out interference, and continuously polled so a lost device is flagged within 36 seconds rather than going quiet unnoticed. Supplied in the black finish; the same module in white is stocked as 168369.365.WH3.
Features
- Integrates third-party wireless devices into an Ajax system
- Up to 80 third-party wireless devices
- Three frequencies — 319.5 MHz, 345 MHz and 433 MHz
- Four supported protocols
- Compatible with Qolsys, Interlogix, Honeywell, Resideo, 2GIG, AT&T and DSC devices
- Third-party device range up to 650 ft
- For wireless devices only — not a wired-zone expander
- Keeps existing field devices during a panel replacement
- Third-party devices appear in the Ajax apps alongside Ajax devices
- 12 V⎓ supply up to 1 A, power adapter included
- Built-in 1.8 Ah Li-ion backup battery, up to 24 hours
- Jeweller and Wings, range up to 6,550 ft
- Black and white finishes
Specifications
| Technical | |
|---|---|
| Device Type | Wireless module to integrate third-party wireless devices into an Ajax system |
| Supported Third-Party Devices | Up to 80 wireless devices |
| Third-Party Radio Frequencies | 319.5 MHz | 345 MHz | 433 MHz |
| Supported Protocols | 4 |
| Compatible Manufacturers | Qolsys | Interlogix | Honeywell | Resideo | 2GIG | AT&T | DSC |
| Third-Party Communication Range | Up to 650 ft |
| Wired Zones | Not supported — this module takes over wireless devices only |
| Power Supply | 12 V⎓, up to 1 A |
| Backup Battery | Built-in rechargeable Li-ion, 1.8 Ah |
| Backup Battery Life | Up to 24 hours of autonomous operation |
| Communication Technology | Jeweller and Wings |
| Frequency Bands | 905.0–926.5 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 6,550 ft |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 6.42″ × 6.42″ × 1.42″ |
| Weight | 1.08 lb |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Complete Set | Module, mounting panel, power adapter, installation kit, quick start guide |
| Certification and Compliance | FCC ID 2AX5VWTMAJ1 | IC ID 26860-WTMAJ1 |
| Warranty | 24 months |
Specifications subject to change.
