Ajax 160022.122.WH3 NVR HAC (16ch) (9NA) UPC white
Product Details
NVR HAC (16-ch) is a network video recorder with an HDMI output, so live view and archive playback work on a monitor at the site itself — no internet, no app, no phone. That matters for a control room or a back office where someone needs the picture on a screen in front of them.
It records 16 channels from Ajax cameras and third-party IP cameras over ONVIF and RTSP. One SATA bay takes a 2.5″ or 3.5″ drive up to 16 TB, with active cooling. Two USB 2.0 ports take a mouse and an export drive. Power is mains 110–240 V. JetSparrow dual-stream technology keeps archive navigation fast and the transfer encrypted, and the recording archive is synchronized with security system events, so an alarm can be reviewed as footage in one step rather than by hunting through a timeline.

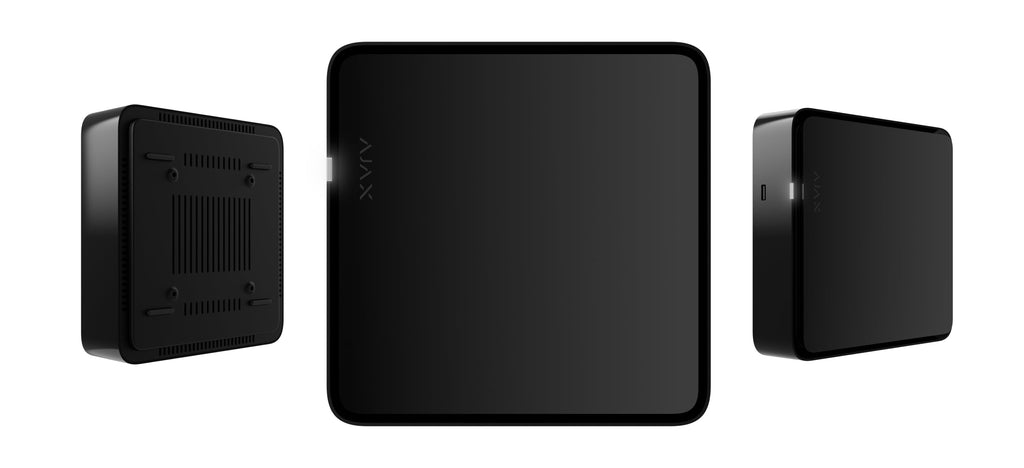

Access rights are set per user, footage export carries a digital signature verified by Ajax Media Player, and account security covers two-factor authentication, session control and biometric login. The SmartBracket mounting panel installs the recorder without disassembling the enclosure and carries a tamper that reports removal. Firmware updates arrive over the air. Supplied in the white finish; the same recorder in black is stocked as 160021.122.BL3.
Features
- Records from Ajax cameras and third-party IP cameras via ONVIF and RTSP
- 16-channel network video recorder
- HDMI output for local monitoring without internet
- Built-in VMS for on-site live view and playback
- 2 × USB 2.0 Type-A ports (rear and side)
- Single SATA bay up to 16 TB with active cooling
- Mains powered: 110–240 V, 50/60 Hz
- JetSparrow, H.265 and H.264 decoding
- NDAA-compliant, meets EU data protection standards
- Instant alarm verification in high resolution
- Archive synchronization with Ajax security system events
- Customizable virtual video wall across multiple cameras
- Configurable motion detection zones per camera
- Fast archive navigation with JetSparrow dual-stream technology
- Automatic network search for third-party IP cameras
- HDD status notifications in the Ajax apps
- Multi-tiered account security: 2FA, session control, biometric login
- SmartBracket mounting panel with tamper detection
- Over-the-air firmware updates
- Available in white and black
Specifications
| Technical | |
|---|---|
| Video Input | 16 channels |
| Decoding Capability | 1 × channel at 8MP | up to 10 × at 720p | 16 × at 1024 × 576 px |
| Synchronous Playback | 16 channels |
| Motion Detection | 16 channels (Ajax camera and NVR) |
| AI Object Detection | 16 channels (Ajax camera) |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 1920 × 1080 | 1600 × 1200 | 1280 × 1024 | 1280 × 720 px |
| Live View / Playback Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, JetSparrow |
| Live View Window Division | Templates 1, 4, 9, 16, 5+1, 7+1 | custom up to 10 × 10 views |
| HDD/SSD Interface | 1 × SATA, up to 16 TB (2.5″ or 3.5″) |
| Network Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| USB | 1 × rear USB 2.0 Type-A | 1 × side USB 2.0 Type-A |
| Network Bandwidth | Incoming up to 80 Mbps | outgoing up to 40 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF | Conformant with ONVIF Profile G and S |
| Physical | |
|---|---|
| Main Power Supply | 110–240 V, 50/60 Hz, 0.6 A |
| Power Consumption | Up to 24 W |
| Clock Battery | CR2032, 3 V |
| Dimensions | 8.33″ × 8.33″ × 2.50″ |
| Weight | 1.724 lb (without drive) |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
