Ajax 157782.345.WH3 Curtain Outdoor Mini (9NA) white датчик руху
Product Details

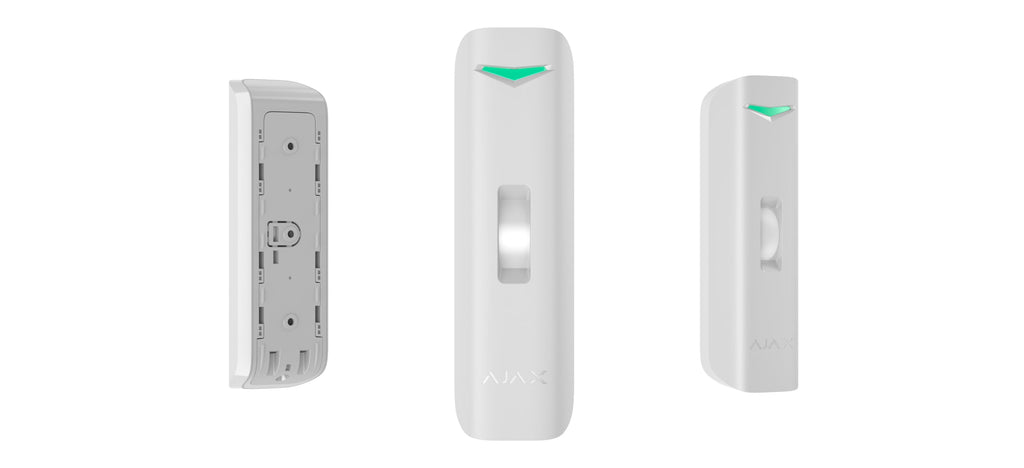

Curtain Outdoor Mini Jeweller is the slimline curtain detector — 5.71″ long and 1.26″ deep, small enough to sit in a window reveal, under a sill or along a door frame where the full-size Curtain Outdoor would be conspicuous or simply would not fit.
It keeps the dual-technology principle: one PIR sensor and one 24 GHz K-band microwave sensor, both of which must agree. The field is 15° horizontal and 100° vertical, reaching 16.4 ft at a 3.3 ft mounting height, with five sensitivity levels rather than three — a finer adjustment for the tight, close-range installations this detector is built for.
It can also be ceiling-mounted at up to 16.4 ft to drop a curtain across an opening. Anti-masking, an accelerometer and a tamper alarm cover sabotage; IP55 and −13 °F to 140 °F cover the weather; two pre-installed CR123A cells cover about three years. Jeweller is Ajax's own two-way radio protocol: encrypted with a dynamic key, frequency-hopping to ride out interference, and continuously polled so a lost device is flagged within 36 seconds rather than going quiet unnoticed.
Features
- Compact curtain detector — 5.71″ × 1.26″ × 1.69″
- Detection field 15° horizontal, 100° vertical, up to 16.4 ft
- Dual technology — one PIR sensor plus a 24 GHz K-band microwave sensor
- Five adjustable sensitivity levels
- Side mounting at 3.3 ft or ceiling mounting up to 16.4 ft
- Pet immunity for animals up to 28″ tall in the Pet slider position
- Anti-masking detects attempts to obstruct the view
- Accelerometer raises an alarm if the detector is moved
- Supplied with an angle mount
- IP55 outdoor housing, −13 °F to 140 °F, humidity to 95%
- Up to 3 years on two pre-installed CR123A batteries
- Jeweller range up to 5,550 ft in open space
- EN 50131 Security Grade 2, Environmental Class IV, PSTI UK Schedule 1
Specifications
| Technical | |
|---|---|
| Device Type | Wireless dual-technology curtain motion detector for outdoor and indoor use |
| Sensitive Elements | 1 × PIR sensor | 1 × K-band microwave sensor (24 GHz) |
| Motion Detection Distance | Up to 16.4 ft at an installation height of 3.3 ft |
| Motion Detection Angles | 15° horizontal | 100° vertical |
| Motion Detection Speed | 1 to 6.6 ft/s |
| Sensitivity | 5 adjustable levels |
| Installation Height | Up to 16.4 ft on the ceiling | 3.3 ft on the side, depending on the protected area |
| Pet Immunity | Animals up to 28″ in height, installed at 3.3 ft with the slider in the Pet position |
| Anti-Masking | Detects attempts to obstruct the detector view |
| Accelerometer | Alarm when the detector is moved |
| Battery Type | 2 × CR123A (pre-installed) |
| Calculated Battery Life | Up to 3 years |
| Full Battery Capacity | 1,600 mAh |
| Nominal Operating Voltage | 6 V⎓ |
| Quiescent Current Consumption | 30 μA |
| Communication Technology | Jeweller | Wings for firmware updates |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 5,550 ft in open space |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions | 5.71″ × 1.26″ × 1.69″ |
| Dimensions with Angle Mount | 5.71″ × 1.73″ × 2.13″ |
| Weight | 4.59 oz (detector) | 0.7 oz (angle mount) |
| Operating Temperature Range | −13 °F to 140 °F |
| Operating Humidity | Up to 95% |
| Protection Class | IP55 |
| Color | White |
| Complete Set | Detector, SmartBracket mounting panel, 2 × CR123A batteries (pre-installed), angle mount, installation kit, quick start guide |
| Certification and Compliance | EN 50131-1, EN 50131-2-4, EN 50131-5-3, EN 50131-6, PD 6662:2017 | Security Grade 2, Environmental Class IV | RED, RoHS, EMC, LVD | PSTI UK Schedule 1 |
| Warranty | 24 months |
Specifications subject to change.
