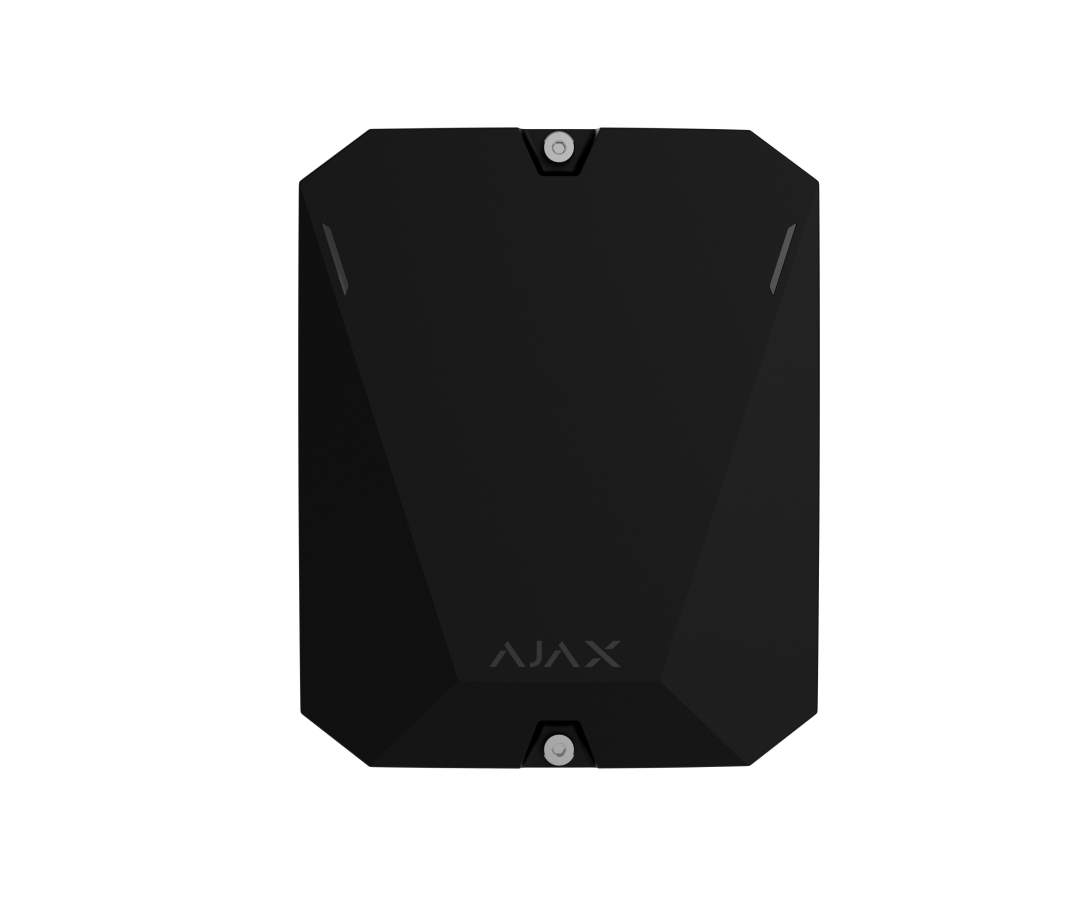

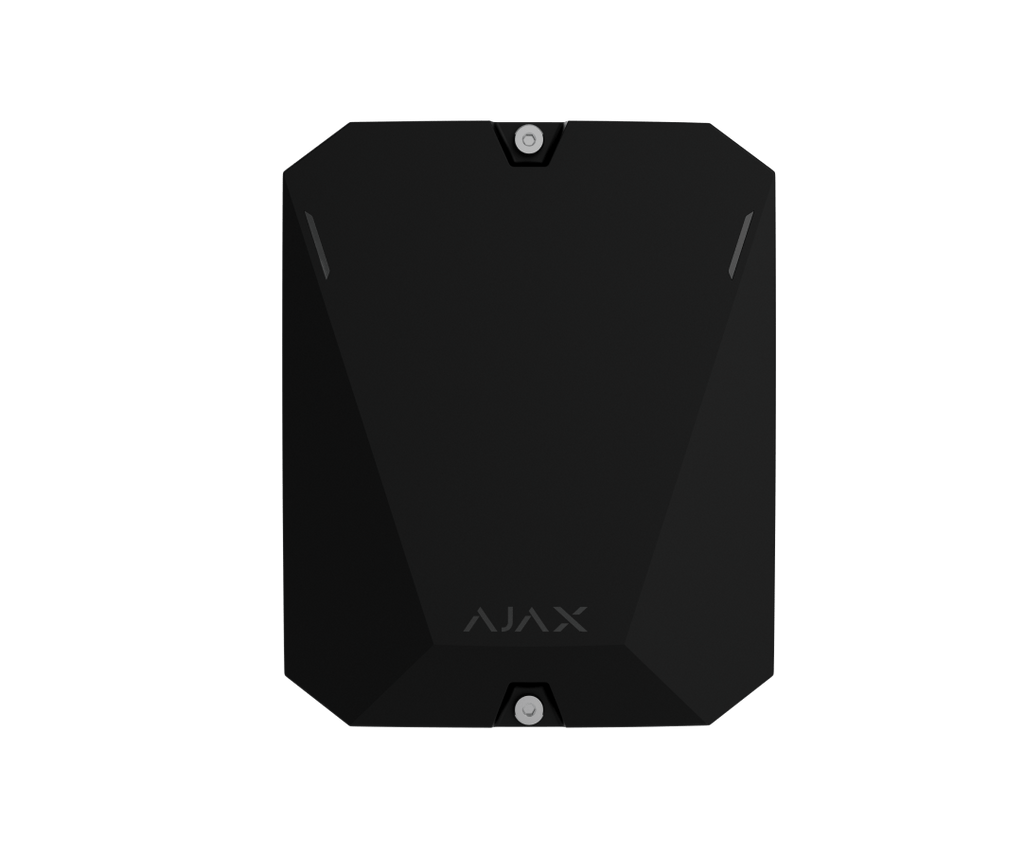

Ajax 126864.263.BL3 Hub BP Jeweller (9NA/AFA) black
Product Details
Hub BP Jeweller is a battery-powered control panel for sites with no mains supply: vacant buildings, construction sites, remote plant and anywhere the power is not on yet. It runs entirely on battery and reports over two SIM cards, so a site can be protected before it is energised.
Capacity is up to 100 Ajax devices, 50 users, 9 security groups, 50 rooms, 32 automation scenarios and a 1,000-event log, with Jeweller radio reaching 6,550 ft in open space. Two micro-SIM slots cover 2G, 3G and LTE with channel switching in up to 4 minutes. Photo verification arrives in about 9 seconds at up to 960 × 720 px.
Autonomy is the point: up to 18 months in full mode on external batteries, and more than 5 years in battery-saving mode. It is Security Grade 2, alarm transmission category SP5. A tamper button reports unmounting, all stored and transmitted data uses block encryption with a dynamic key, and the hub authenticates each device's unique parameters at every communication session. Supplied in the black finish. The same device in white is stocked as 126863.263.WH3.
Features
- Battery-powered wireless control panel for sites without mains power
- Up to 18 months autonomy in full mode; over 5 years in battery-saving mode
- Two micro-SIM slots supporting 2G, 3G and LTE
- Channel switching in up to 4 minutes
- Up to 100 Ajax devices, 50 users, 9 security groups and 50 rooms
- Up to 32 automation scenarios and a 1,000-event log
- Photo verification in about 9 seconds, up to 960 × 720 px, 1–5 images
- Up to 6,550 ft Jeweller radio range
- Security Grade 2, alarm transmission category SP5, signaling security S2
- IP40 enclosure
- Tamper alarm, jamming detection and device authentication
- Available in white and black
Specifications
| Technical | |
|---|---|
| Ajax Devices | Up to 100 |
| Users | Up to 50 |
| Automation Scenarios | Up to 32 |
| Security Groups | Up to 9 |
| Rooms | Up to 50 |
| Event Log | Up to 1,000 events |
| Jeweller Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | Up to 6,550 ft (open space) |
| Polling Interval | 12 s to 300 s |
| SIM Slots | 2 × micro-SIM |
| 2G Bands | GSM900 / DCS1800 (B3/B8) |
| 3G Bands | WCDMA 850/900/2100 (B1/B5/B8) |
| 4G (LTE) Bands | FDD B1/B3/B5/B7/B8/B20 |
| Channel Switching Time | Up to 4 minutes |
| Photo Delivery Time | Up to 9 s |
| Photo Resolution | Up to 960 × 720 px, 1 to 5 images in series |
| Security Grade | Grade 2 | Alarm transmission category SP5 | Signaling security S2 |
| Physical | |
|---|---|
| External Power Supply | 4.2–16 V DC, up to 2 A |
| Operating DC Range | 3.5–16 V DC |
| External Battery Autonomy (Full Mode) | Up to 18 months |
| External Battery Autonomy (Battery Saving) | More than 5 years |
| Dimensions | 7.72″ × 9.37″ × 3.94″ |
| Weight | 2.23 lb |
| Operating Temperature Range | 14 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP40 |
| Colors | White, Black |
| Warranty | 24 months |
Specifications subject to change.
