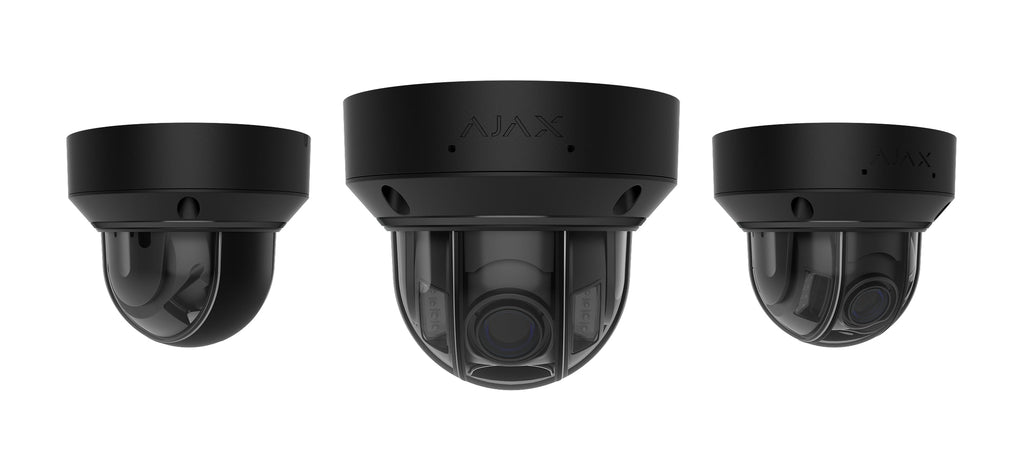

Ajax 126284.214.BL1 DomeCam HLVF (5 Mp) ASP black
Product Details
The DomeCam HLVF (5 Mp) is a wired AI-powered security IP camera with a 2.8–12 mm motorized varifocal lens, hybrid illumination, True WDR, audio and alarm inputs/outputs, microphone, and PoE/12 V. For outdoor and indoor use.
The camera uses a 1/2.7" 5 MP CMOS sensor and records at up to 5 MP (2880 x 1620). The varifocal lens covers 2.8–12.0 mm, giving a field of view of horizontal: 31°–111°, vertical: 17°–57°, diagonal: 35°–135°. True WDR gives 120 dB of dynamic range, and minimum illumination is color: 0.005 lx, B/W: 0 lx.
The housing is rated IP67 and IK10, and it operates from -40 °F to 140 °F. Hybrid illumination reaches 82 ft on the white LED and 131 ft on the IR LED, so the camera can hold color detail after dark rather than falling back to monochrome. It is powered over Ethernet (802.3at/af (Class 3)) or from an external 12 V DC, 1 A supply. On-camera AI detection covers people, pets, vehicles, line-crossing, which cuts down on nuisance alerts from moving light and weather. The dome housing keeps a low, flush profile and is vandal-resistant to IK10, so it suits entrances, corridors and forecourts where the camera sits within reach. This is the black finish.
Features
- Resolution: 5 MP (2880 x 1620), 4 MP (2560 x 1440), 3 MP (2304 x 1296), 2 MP (1920 x 1080), 0.6 MP (1024 x 576)
- Image sensor: 5 MP CMOS, 1/2.7" type
- Lens: 2.8–12.0 mm
- Field of view: horizontal: 31°–111°, vertical: 17°–57°, diagonal: 35°–135°
- Illumination range: white LED: up to 82 ft, IR LED: up to 131 ft
- Dynamic range: 120 dB (True WDR)
- Frame rate: up to 25 fps
- AI object detection: People, Pets, Vehicles, Line-crossing
- Video codec: H.265, H.264
- Storage: microSD
- Built-in microphone: yes
- ONVIF®: conformant with ONVIF® Profile G and S
- PoE: 802.3at/af (Class 3)
- Power consumption: maximum: up to 8.04 W, average: up to 7.48 W
- Protection class: IP67, IK10
- Operating temperature: from -40 °F to 140 °F
- Dimensions: 5.35" x 4.54" x 5.35"
- Weight: 1.88 lb
Specifications
| Technical | |
|---|---|
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8–12.0 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | varifocal |
| Field of view | horizontal: 31°–111°; vertical: 17°–57°; diagonal: 35°–135° |
| Maximum illumination distance | white LED: up to 82 ft; IR LED: up to 131 ft |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 x 1620); 4 MP (2560 x 1440); 3 MP (2304 x 1296); 2 MP (1920 x 1080); 0.6 MP (1024 x 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 90°, 180°, 270° |
| Video codec | H.265, H.264 |
| Dynamic range | 120 dB (True WDR) |
| Storage | microSD |
| Built-in microphones | 1 |
| Audio codec | G.711 u-law, G.711 A-law, G.726, G.722 |
| Motion detection | The camera detects motion using software-based image frame analysis. |
| AI object detection | People; Pets; Vehicles; Line-crossing |
| Port | 1 x RJ45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Alarm port – Lines for third-party devices | 2 |
| Alarm IN type | NO, NC |
| Alarm OUT operating range | 24 V DC, 300 mA |
| Audio port – Lines for third-party devices | 2 |
| Audio IN type | external microphone input |
| Audio IN settings | gain; enable/disable |
| Audio OUT type | speaker output |
| Video transmission | JetSparrow |
| Focal length change | autofocus; manual focus control |
| mTLS | Encrypted connection for data protection. |
| Authentication | via Ajax Cloud |
| Secure Boot | Protection against firmware spoofing. |
| OTA signature verification | Secure automatic firmware update. |
| Accelerometer | Alerts on attempts to move or dismount the camera. |
| PoE standard | 802.3at/af (Class 3) |
| External power connector type | screw terminal connector (2 pin) |
| PoE power consumption | maximum: up to 8.04 W; average: up to 7.48 W |
| Power supply unit | 12 V DC, 1 A |
| 12 V DC power consumption | maximum: up to 6.99 W; average: up to 6.46 W |
| Physical | |
|---|---|
| Dimensions | 5.35" x 4.54" x 5.35" |
| Weight | 1.88 lb |
| Operating temperature range | from -40 °F to 140 °F |
| Operating humidity | up to 90% |
| Protection class | IP67, IK10 |
| Included in box | DomeCam HLVF (5 Mp); Installation template; Installation kit; 3 x screw terminal connector; Quick start guide |
Specifications subject to change.
