Description

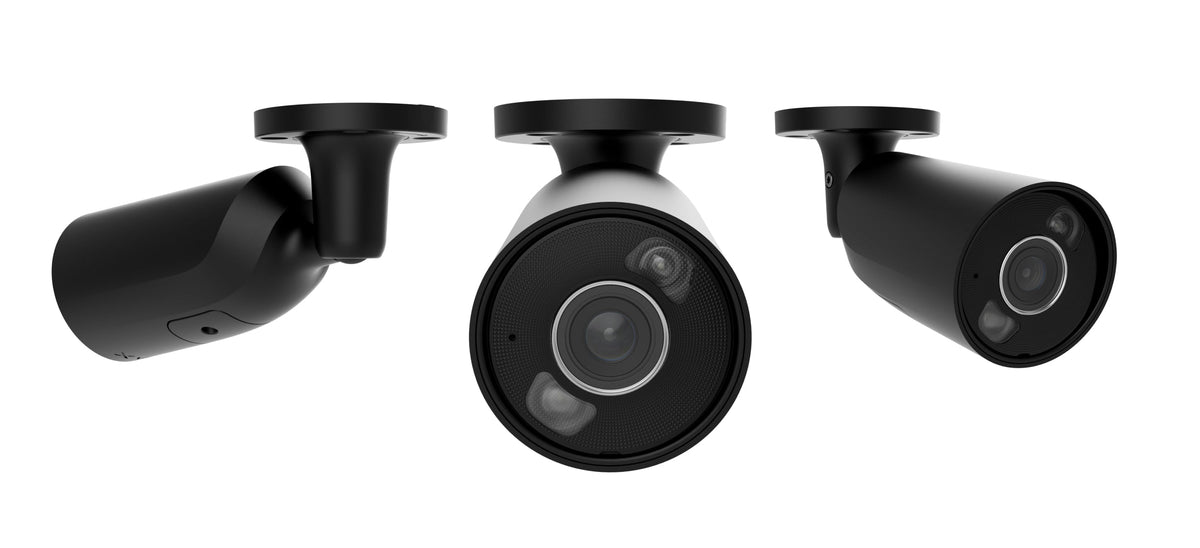

Ajax 126252.217.BL1 BulletCam HL (5 Mp/2.8 mm) ASP black
Product Details
BulletCam HL (5 Mp/2.8 mm) is a wired AI-powered security IP camera with hybrid illumination in a bullet body, for indoor and outdoor use. It switches between infrared and white light depending on what the AI sees, so the archive holds full-colour footage after dark instead of monochrome — and the white light doubles as a deterrent.
The sensor is 5 MP CMOS, 1/2.8" type behind a fixed 2.8 mm f/1.6 lens, giving a 100–110° horizontal field of view. DORI distances are detection: 213 ft, observation: 85 ft, recognition: 42 ft, identification: 21 ft. Frame rate is up to 25 fps, with resolution selectable down from the native maximum. White LED and IR LED illumination each reach up to 164 ft.
Authentication is passwordless over mTLS — there is no default password to be left unchanged, which is how most cheap IP cameras end up exposed. Privacy zones blank sensitive parts of the frame, access rights are set per user, and footage is encrypted in transit and on export. JetSparrow dual-stream technology keeps archive playback smooth and event filtering instant, and the recording archive is synchronised with security system events so an alarm can be reviewed as video in one step. The metal enclosure is rated IP66 and IK08 and operates from −22 °F to 140 °F. Supplied in the black finish; the same model in white is stocked as 126253.217.WH1.
Features & Benefits
- Wired AI-powered security IP camera with hybrid illumination in a bullet body
- White LED and IR LED illumination, each up to 164 ft
- Automatic switching between IR and white light on object recognition
- Full-colour footage after dark, with white light as an active deterrent
- On-camera AI recognition of people, vehicles and pets
- True WDR dynamic range of 120 dB
- Minimum illumination: 0.005 lx in colour, 0 lx in black and white
- Built-in digital microphone
- Customizable motion detection area at pixel level
- Privacy zones and encrypted video export with digital signature verification
- Customizable virtual video wall across multiple cameras
- ONVIF Profile G and S conformance, with RTSP support
- microSD card support up to 256 GB, or Ajax NVR
- PoE 802.3at/af or 12 V DC power
- IP66 and IK08 metal enclosure, available in white and black
Specifications
| Technical | |
|---|---|
| Image Sensor | 5 MP CMOS, 1/2.8" type |
| Lens Focal Length | 2.8 mm |
| Maximum Aperture | f/1.6 |
| Lens Iris Type | Fixed |
| Lens Focal Type | Fixed |
| Minimum Illumination | 0.005 lx (colour) | 0 lx (black and white) |
| Signal-to-Noise Ratio | More than 52 dB |
| Field of View | Horizontal: 100–110° | Vertical: 50–60° | Diagonal: 125–135° |
| DORI Distances | Detection: 213 ft | Observation: 85 ft | Recognition: 42 ft | Identification: 21 ft |
| White LED Illumination Distance | Up to 164 ft |
| IR LED Illumination Distance | Up to 164 ft |
| Resolution Options | 5 MP (2880 × 1620) | 4 MP (2560 × 1440) | 3 MP (2304 × 1296) | 2 MP (1920 × 1080) | 0.6 MP (1024 × 576) |
| Frame Rate | Up to 25 fps |
| Image Rotation | 0°, 180° |
| Video Codec | H.265, H.264 |
| Dynamic Range | 120 dB (True WDR) |
| Storage | microSD up to 256 GB (Class V30 or faster), or Ajax NVR |
| Built-in Microphone | Yes |
| Audio Codec | G711-ULAW, G711-ALAW, G726, G722 |
| Network Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF | Conformant with ONVIF Profile G and S |
| Video Protocol | JetSparrow — peer-to-peer encrypted protocol |
| Intelligent Video Analytics | Motion detection by software image frame analysis | AI object detection: people, pets, vehicles |
| Sabotage Protection | mTLS encrypted connection | authentication via Ajax Cloud | Secure Boot against firmware spoofing | OTA signature verification |
| Physical | |
|---|---|
| Power Consumption | PoE: up to 7.3 W max, 6.0 W average | 12 V DC: up to 6.3 W max, 5.1 W average |
| PoE Standard | 802.3at/af |
| External Power Supply | 12 V DC ± 20%, 1 A |
| Dimensions | 7.78″ × 2.99″ × 2.99″ |
| Weight | 1.21 lb |
| Operating Temperature Range | −22 °F to 140 °F |
| Operating Humidity | Up to 90% |
| Protection Class | IP66, IK08 |
| Colors | White, Black |
| Complete Set | BulletCam HL, installation template, installation kit, quick start guide |
| Warranty | 24 months |
Specifications subject to change.
