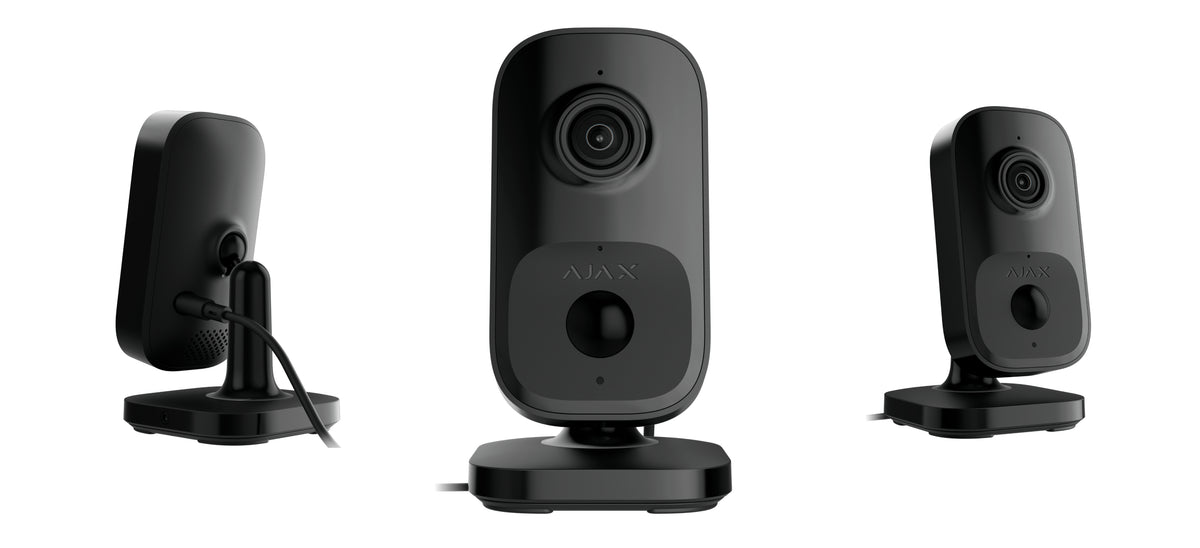

Ajax 118862.303.BL3 IndoorCam (9NA) black
Product Details
IndoorCam is an indoor Wi-Fi security camera with a PIR motion detector and built-in AI. Unlike the wired cameras in the range it needs no Ethernet run, and it keeps a fallback channel through an Ajax hub on Jeweller and Wings — so it stays reachable when the Wi-Fi does not.
The 4 MP sensor records up to 2688 × 1520 px with HDR across a 110° horizontal by 60° vertical view, with smart IR illumination to 26 ft. A dedicated PIR sensor detects motion to 13 ft across three sensitivity levels, alongside software image analysis — a physical sensor confirming what the picture suggests, rather than relying on pixel change alone.
Two-way audio runs through a built-in microphone and a 65 dB speaker with noise suppression and echo cancellation. On-camera AI identifies people, animals and vehicles. Authentication is passwordless over mTLS — there is no default password to be left unchanged, which is how most cheap IP cameras end up exposed. Privacy zones blank sensitive parts of the frame, access rights are set per user, and footage is encrypted in transit and on export. Supplied in the black finish; the same camera in white is stocked as 118861.303.WH3.
Features & Benefits
- Indoor Wi-Fi security camera with PIR motion detector and built-in AI
- 4 MP sensor, up to 2688 × 1520 px with HDR
- 110° horizontal by 60° vertical viewing angle
- Smart IR illumination up to 26 ft
- Dedicated PIR sensor detecting motion to 13 ft, 3 sensitivity levels
- On-camera AI recognition of people, animals and vehicles
- Two-way audio with noise suppression and echo cancellation
- Wi-Fi 802.11 b/g/n at 2.4 GHz, range up to 1,600 ft line of sight
- Fallback communication via an Ajax hub on Jeweller and Wings
- Passwordless authentication over mTLS
- ONVIF Profile S conformance, with RTSP support
- Storage on Ajax NVR or Ajax Cloud Storage
- Customizable virtual video wall and push notifications
- Over-the-air firmware updates
- Available in white (RAL 9003) and black (RAL 9005)
Specifications
| Technical | |
|---|---|
| Camera Sensor | 4 MP CMOS |
| Resolution | Up to 2688 × 1520 px |
| Viewing Angle | Horizontal: 110° | Vertical: 60° |
| Video Codec | H.264 |
| Dynamic Range | HDR |
| Video Protocol | JetSparrow |
| Storage Options | Ajax NVR, Ajax Cloud Storage |
| Smart IR Illumination | Up to 26 ft |
| Object Detection | People, pets, vehicles (AI-powered) |
| Motion Detection | PIR sensor and software image analysis |
| Sensitive Elements | 1 × PIR sensor |
| PIR Motion Detection Distance | Up to 13 ft |
| PIR Motion Detection Angle | Horizontal: 110° | Vertical: 60° |
| PIR Sensitivity Levels | 3 levels |
| Two-Way Communication | Yes |
| Microphone | Included |
| Speaker Volume | 65 dB ± 3 dB |
| Audio Codec | G722 |
| Audio Processing | Noise suppression and echo cancellation |
| Wi-Fi Standard | 802.11 b/g/n module, 2.4 GHz |
| Backup Communication | Jeweller and Wings technologies |
| ONVIF | Conformant with ONVIF Profile S |
| Visual Alarm Verification | Supported |
| Physical | |
|---|---|
| Power Supply Unit | 12 V DC ± 20%, 1 A |
| Device Power Consumption | Up to 8 W |
| Dimensions | 5.04″ × 2.91″ × 2.99″ |
| Weight | 8.29 oz |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity | Up to 90%, no condensation |
| Protection Class | IP20 |
| Colors | White (RAL 9003), Black (RAL 9005) |
| Installation | Indoor use only |
| Warranty | 24 months |
Specifications subject to change.
