Description

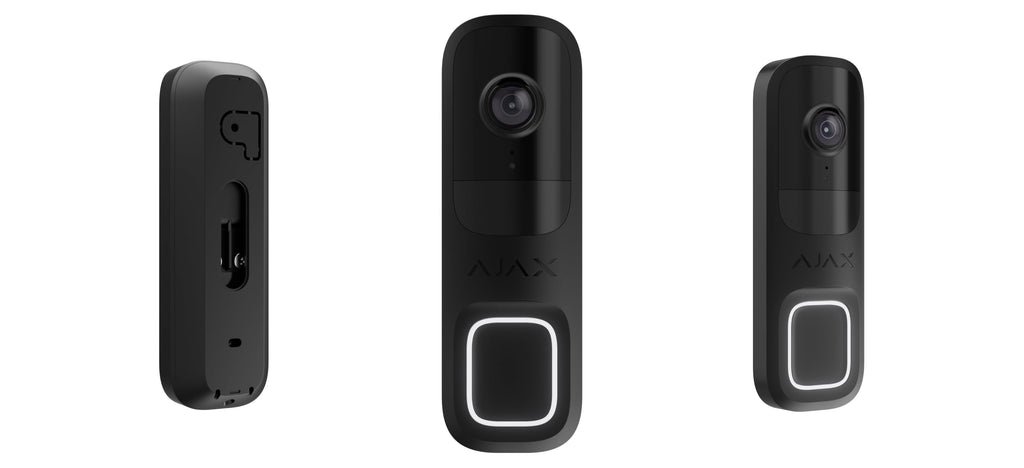

Ajax 116886.125. BL3 Doorbell (9NA) black
Product Details
Ajax DoorBell is a 4 MP video doorbell with a 155° field of view, two-way audio and onboard AI that sorts what it sees into people, pets and vehicles — so the phone rings for a visitor and stays quiet for a passing car.
It carries a PIR sensor as well as AI frame analysis, which means it registers an approach before anyone presses the button, and smart IR illumination lights the doorway to 20 ft after dark. Video runs over JetSparrow, Ajax's peer-to-peer encrypted stream, with Wi-Fi as the primary link and Jeweller and Wings standing by as backup — a doorbell that keeps reporting when the Wi-Fi drops. It is ONVIF Profile S conformant, so it also fits a third-party recording setup.
This is wired doorbell hardware, not a battery unit: it takes 12–24 V DC or 16–24 V AC, draws 10 W, and holds a 600 mAh Li-ion cell for continuity rather than as its power source. The transformer must suit the current table in the specifications: driving an existing mechanical chime needs appreciably more current than running the doorbell alone. Supplied in the black finish; the same doorbell is stocked in the other finishes as 116889.125. WH3 (white), 116887.125. GP3 (graphite), 116888.125. GR3 (grey).
Features
- 4 MP camera, up to 2688 × 1520 px, 155° horizontal by 90° vertical
- AI object detection — people, pets and vehicles
- PIR sensor registers an approach before the button is pressed
- Two-way voice with noise suppression and echo cancellation
- Smart IR illumination up to 20 ft
- HDR imaging and H.264 encoding
- JetSparrow peer-to-peer encrypted video
- Wi-Fi 802.11 b/g/n 2.4 GHz, with Jeweller and Wings as backup
- ONVIF Profile S conformant
- Visual alarm verification within the Ajax system
- Tamper alarm on device removal
- MTLS encryption, Secure Boot and signed firmware updates
- IP54, −13 °F to 140 °F, for indoor and outdoor use
- Four finishes — white, grey, graphite and black
Specifications
| Technical | |
|---|---|
| Device Type | Video doorbell with built-in AI, PIR sensor, and control via the Ajax apps |
| Camera Sensor | 4 MP CMOS |
| Video Resolution | Up to 2688 × 1520 px |
| Camera Viewing Angles | 155° horizontal | 90° vertical |
| Video Codec | H.264 |
| Dynamic Range | HDR |
| Video Protocol | JetSparrow — peer-to-peer encrypted |
| Standard Compliance | ONVIF® Profile S conformant |
| AI Object Detection | People | pets | vehicles |
| Audio | Two-way voice, G722 codec, always-active noise suppression and echo cancellation |
| IR Illumination | Smart IR illumination up to 20 ft |
| PIR Sensor | 1 × PIR sensor |
| PIR Detection Distance | Up to 13 ft |
| PIR Detection Angles | 120° horizontal | 100° vertical |
| Sensitivity | 3 adjustable levels |
| Recommended Installation Height | 4–5 ft |
| Installation | Indoor and outdoor | not recommended in direct sunlight |
| Communication | Wi-Fi 802.11 b/g/n, 2.4 GHz | Jeweller and Wings as backup |
| Power Supply Voltage | 12–24 V⎓ | 16–24 V~, 50/60 Hz |
| Device Consumption | 10 W |
| Minimum Current without Chime | 1 A at 12 V⎓ | 0.5 A at 24 V⎓ | 0.6 A at 16 V~ | 0.4 A at 24 V~ |
| Minimum Current with Chime | 3 A at 12 V⎓ | 3 A at 24 V⎓ | 0.6 A at 16 V~ | 0.4 A at 24 V~ |
| Built-in Battery | Rechargeable Li-ion, 600 mAh |
| Security | mTLS encrypted connections, authentication via Ajax Cloud, Secure Boot, OTA signature verification, permission-based access |
| Tamper Alarm | Notifications on attempts to remove the device |
| Physical | |
|---|---|
| Dimensions | 5.71″ × 1.85″ × 1.34″ |
| Weight | 5.75 oz |
| Operating Temperature Range | −13 °F to 140 °F |
| Operating Humidity | Up to 90% |
| Protection Class | IP54 |
| Colors | White (RAL 9003) | grey (RAL 7004) | graphite (RAL 7024) | black (RAL 9005) |
| Complete Set | DoorBell, SmartBracket mounting panel, 2 wedge brackets, BellKit, installation kit, quick start guide |
| Certification and Compliance | EU Declaration of Conformity — RED, RoHS, EMC, LVD | EN standards |
| Warranty | 24 months |
Specifications subject to change.
