Ajax 112255.305.NC 12V PSU for NVR ASP
Product Details

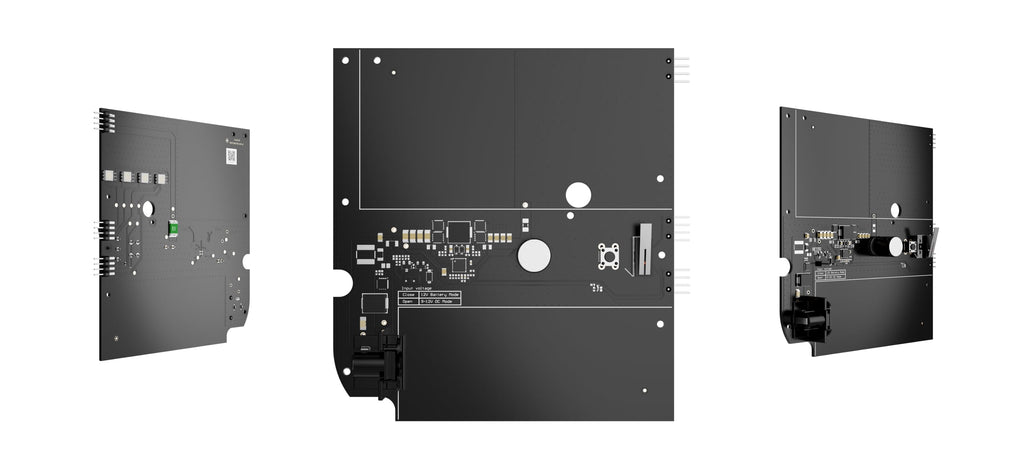

The 12V PSU for NVR is a replacement power board that runs an Ajax network video recorder from a low-voltage DC source rather than mains. It fits inside the NVR enclosure in place of the bundled supply and delivers a regulated 12 V at up to 2 A.
It has two input modes, set by a jumper. Without the jumper it accepts 8 to 16 V and switches on at 8 V — the setting for squeezing the last usable charge out of a battery. With the jumper it accepts 12.1 to 16 V and switches off at 10.35 V, which protects a lead-acid battery from being run flat enough to damage it. Which one to use is a decision about the battery, not the recorder.
Maximum input draw is 4 A when the output is delivering its full 2 A. Indoor duty, 32 to 104 °F, IP20.
Features
- Replacement power board for the Ajax NVR
- Runs the recorder from a low-voltage DC source instead of mains
- Jumper-selectable input: 8–16 V⎓ or 12.1–16 V⎓
- Without jumper — switch-on 8 V⎓, switch-off 6.5 V⎓
- With jumper — switch-on 12.1 V⎓, switch-off 10.35 V⎓, protecting a lead-acid battery
- Regulated output 12 V⎓ ±3% at up to 2 A
- Input draw up to 4 A at full output
- Fits inside the NVR enclosure, replacing the bundled board
- Terminal adapter included
Specifications
| Technical | |
|---|---|
| Device Type | Power supply unit for NVR operation on a low-voltage power source |
| Input Voltage Range without Jumper | 8–16 V⎓ |
| Switch-on / Switch-off without Jumper | 8 V⎓ / 6.5 V⎓, no-load state |
| Input Voltage Range with Jumper | 12.1–16 V⎓ |
| Switch-on / Switch-off with Jumper | 12.1 V⎓ / 10.35 V⎓, no-load state |
| Maximum Input Current | Up to 4 A when the output is at its 2 A maximum |
| Output Voltage | 12 V⎓ ± 3% |
| Maximum Output Current | 2 A |
| Quiescent Current | 65 mA |
| Shutdown Current | 110 μA |
| Installation | Into the NVR enclosure, replacing the bundled power supply board |
| Physical | |
|---|---|
| Dimensions | 4.64″ × 4.84″ × 0.67″ |
| Weight | 1.80 oz |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Complete Set | 12V PSU for NVR, terminal adapter, quick start guide |
| Certification and Compliance | RoHS | EMC (EN 55032 / EN 55035) | LVD (EN IEC 62368-1:2024) |
| Warranty | 24 months |
Specifications subject to change.
