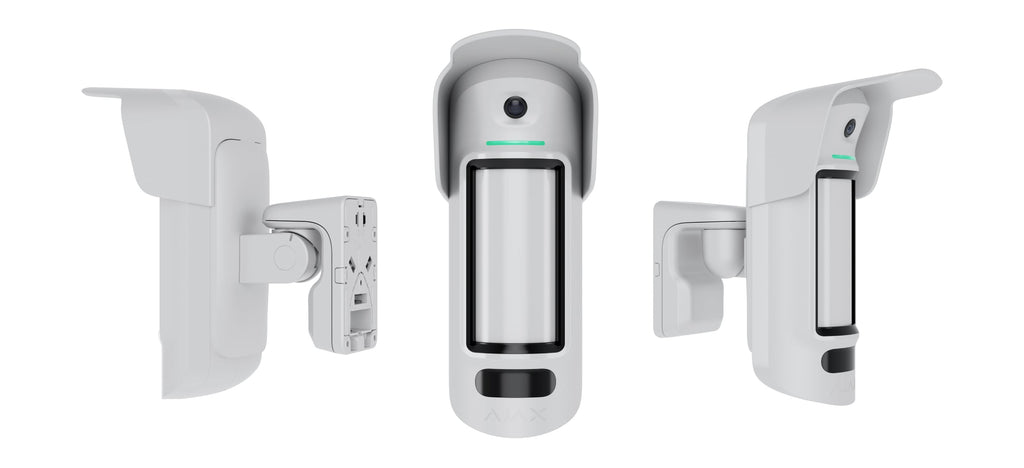

Ajax 107889.282.WH3 MotionCam Outdoor HighMount (PhOD) Jeweller (9NA) white
Product Details
MotionCam Outdoor HighMount (PhOD) Jeweller is the version built to be mounted out of reach — 6.6 to 13.1 ft up, on a wall, a soffit or a pole, where a detector at head height would be vandalised, obstructed or simply walked past.
Mounting high changes the detection problem, so the sensor set changes with it: two PIR sensors are joined by a 24 GHz K-band microwave sensor, and both must agree before an alarm is raised. The camera is larger too — 640 × 480 px at 115° horizontal and 84° vertical, looking down over the area rather than across it. Six CR123A cells carry the extra load for about three years.
One thing to plan for: this model has no pet immunity. Mounted at its intended height the sensors look down over an area rather than across a walkway, which is a different trade-off from the ground-level detectors. Where animals share the protected space, check the coverage plan before specifying it. Photos travel on Wings, a second radio channel dedicated to image transfer, so pictures never delay an alarm and an alarm never delays a picture.
Features
- Designed for high mounting — 6.6 to 13.1 ft installation height
- Two PIR sensors plus a 24 GHz K-band microwave sensor
- Dual-technology detection — both sensor types must agree
- Photo on demand, by alarm, by scenario and by schedule
- Camera 640 × 480 px or 320 × 240 px, 115° × 84° field of view
- Photo series — 1 to 5 images at 320 × 240 px, 1 to 3 at 640 × 480 px
- Anti-masking detects attempts to obstruct the view
- Supplied with a swivel mount for aiming from height
- IP55 outdoor housing, −13 °F to 140 °F
- Up to 3 years on six CR123A batteries
- Jeweller range up to 5,550 ft in open space
- No pet immunity — check the coverage plan where animals are present
Specifications
| Technical | |
|---|---|
| Device Type | Wireless PIR motion detector with extended photo verification possibilities, for high mounting |
| Sensitive Elements | 2 × PIR sensor | 1 × K-band microwave sensor (24 GHz) |
| Recommended Installation Height | 6.6–13.1 ft (2–4 m) |
| Motion Detection Distance | Up to 49 ft, depending on installation height |
| Motion Detection Angle | 90° horizontal |
| Motion Detection Speed | 1.0 to 6.6 ft/s |
| Sensitivity | 3 adjustable levels |
| Pet Immunity | Not available for this model |
| Anti-Masking | Detects attempts to obstruct the detector view |
| Photo Scenarios | By alarm | on demand | by scenario | by schedule |
| Camera Viewing Angles | 115° horizontal | 84° vertical |
| Photo Resolution | 640 × 480 px | 320 × 240 px (default) |
| Series of Pictures | 1 to 5 images at 320 × 240 px | 1 to 3 images at 640 × 480 px |
| Battery Type | 6 × CR123A |
| Calculated Battery Life | Up to 3 years |
| Communication Technology | Jeweller for alarms and events | Wings for photo verification |
| Frequency Bands | 866.0–866.5 MHz | 868.0–868.6 MHz | 868.7–869.2 MHz | 905.0–926.5 MHz | 915.85–926.5 MHz | 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | Up to 25 mW |
| Radio Communication Range | Up to 5,550 ft in open space |
| Tamper Alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Encrypted Communication | Block encryption with a dynamic key |
| Frequency Hopping | Yes — to prevent radio interference and jamming |
| Protection Against Spoofing | Device authentication |
| Communication Loss Detection | After 36 s |
| Physical | |
|---|---|
| Dimensions with Mount | 9.21″ × 3.86″ × 9.06″ |
| Weight with Mount | 35.6 oz |
| Operating Temperature Range | −13 °F to 140 °F |
| Protection Class | IP55 |
| Color | White |
| Complete Set | Detector, 6 × CR123A batteries, SmartBracket mounting panel, swivel mount, hood, installation kit, quick start guide |
| Certification and Compliance | EN 50131 Grade 2 | RED, RoHS, LVD, EMC |
| Warranty | 24 months |
Specifications subject to change.
