Product Details

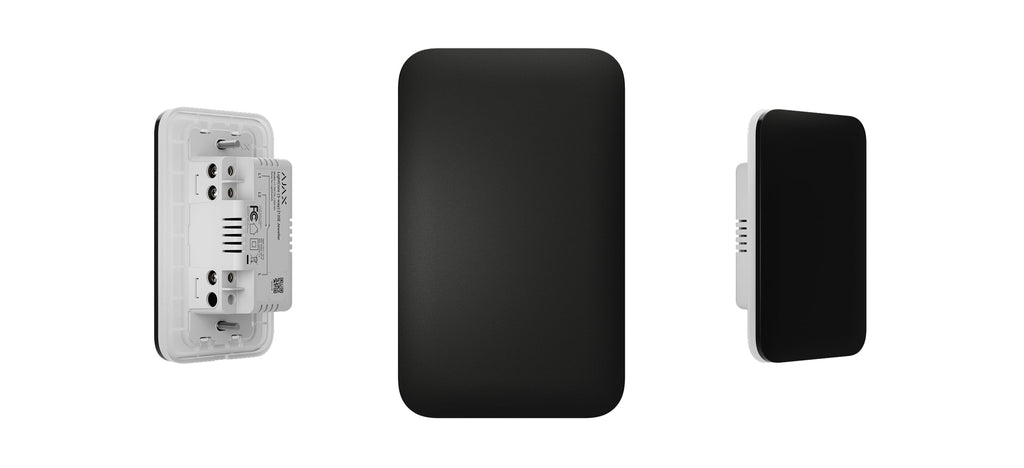

LightCore (3-way) [120] Jeweller is the relay for a three-way circuit — one light controlled from two places, such as the two ends of a hallway or the top and bottom of a staircase.

It needs no neutral wire and handles up to 500 W of incandescent or 250 W of CFL/LED lighting, with a 20 W minimum load. Each relay still needs its own touch panel on the face. Ajax LightSwitch is a modular system rather than a single product: a complete switch is a LightCore relay behind the wall plus a touch-sensitive button panel on the face, with a frame added when two or more switches sit together. All three are sold separately.

Ordering note: a three-way circuit takes TWO LightCore (3-way) [120] relays, one at each switch position, wired to each other through their L1 and L2 terminals — plus a touch panel for each. A single relay will not give two-location control on its own.

Features

• No neutral wire required
• Maximum load 500 W incandescent or 250 W CFL/LED, minimum 20 W
• Overcurrent protection above 5 A and temperature protection above 140 °F
• Relay rated for more than 200,000 on/off cycles — around 50 years of use
• Average consumption 0.2 W
• Surge protection and tamper detection
• Jeweller radio up to 3,600 ft with an Ajax hub or range extender
• Remote control, configuration and event log in the Ajax apps
• Presence simulation and scheduling through automation scenarios

Specifications

Technical
Part Type	Relay module for a 3-way (two-location) LightSwitch
Relays Required per Circuit	Two — one at each switch position, linked via L1 and L2 terminals
Required Companion Part	One touch panel per relay: SoloButton (1-gang) [120], CenterButton (1-gang) [120] or SideButton (1-gang) [120]
Neutral Wire	Not required
Power Supply Voltage	120 V~, 60 Hz
Average Consumption	Up to 200 mW
Maximum Power	Up to 500 W (incandescent) | up to 250 W (CFL / LED)
Minimum Load Power	20 W
Maximum Load Current	4.2 A
Overcurrent Protection	More than 5 A
Temperature Protection	More than 140 °F
Frequency Bands	905.0–926.5 MHz
Maximum Effective Radiated Power (ERP)	Up to 20 mW
Radio Signal Modulation	GFSK
Radio Communication Range	Up to 3,600 ft between the device and a hub or range extender in open space
Form Factor	NA form factor (120)

Physical
Relay Dimensions	3.87″ × 1.65″ × 1.31″
Relay Weight	2.43 oz
Operating Temperature Range	14 °F to 104 °F
Operating Humidity	Up to 75%, no condensation
Protection Class	IP20
Warranty	24 months

Specifications subject to change.
