Description

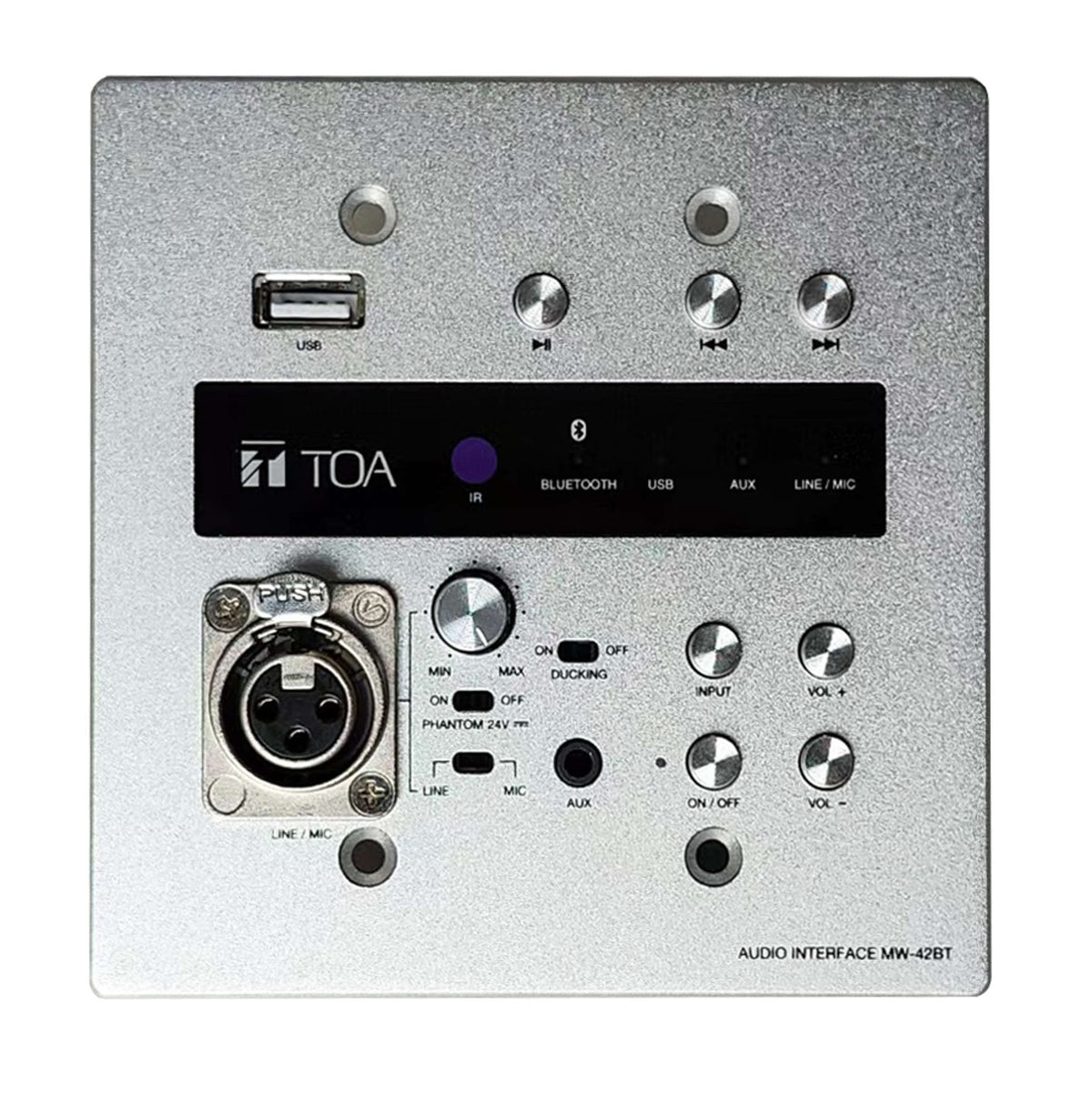

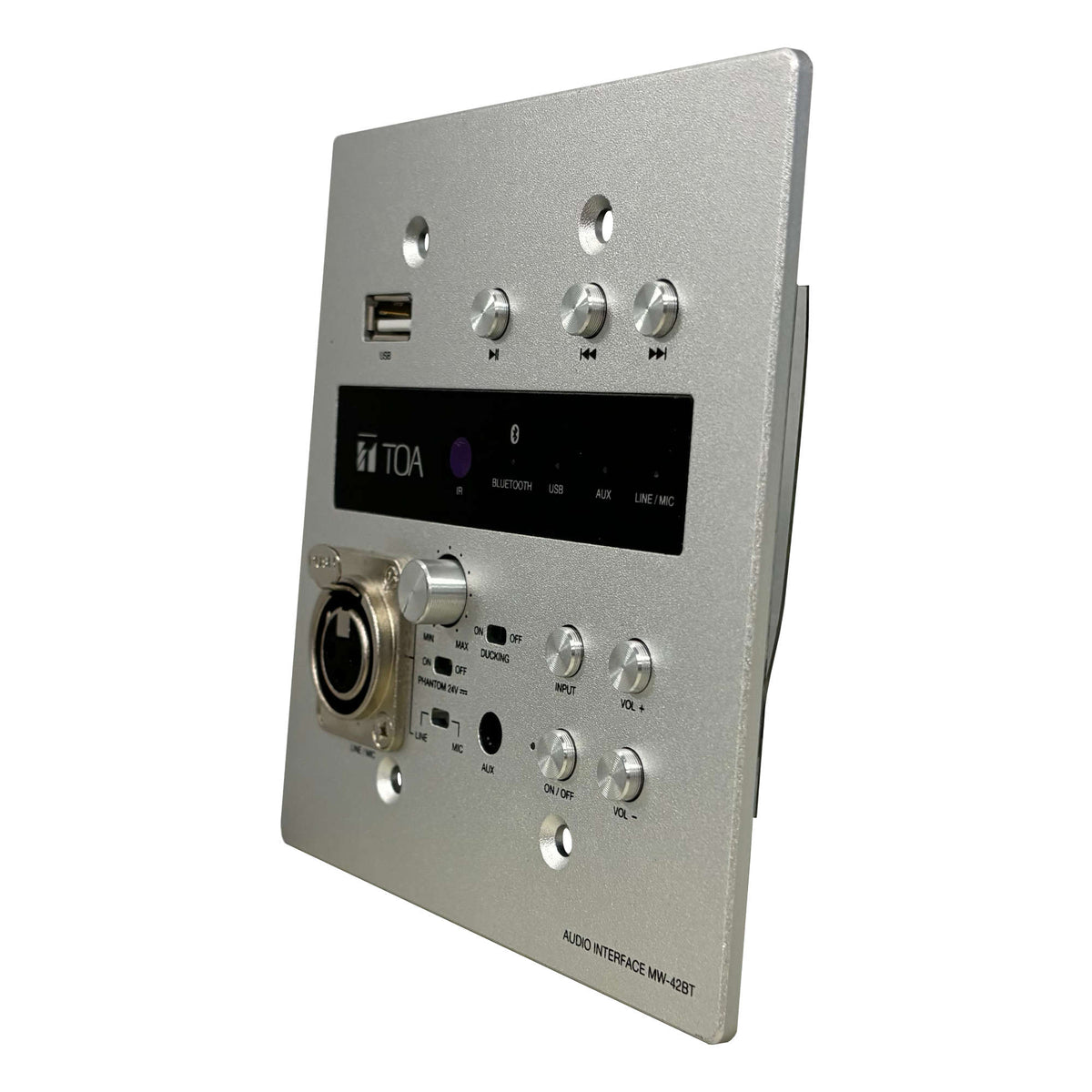

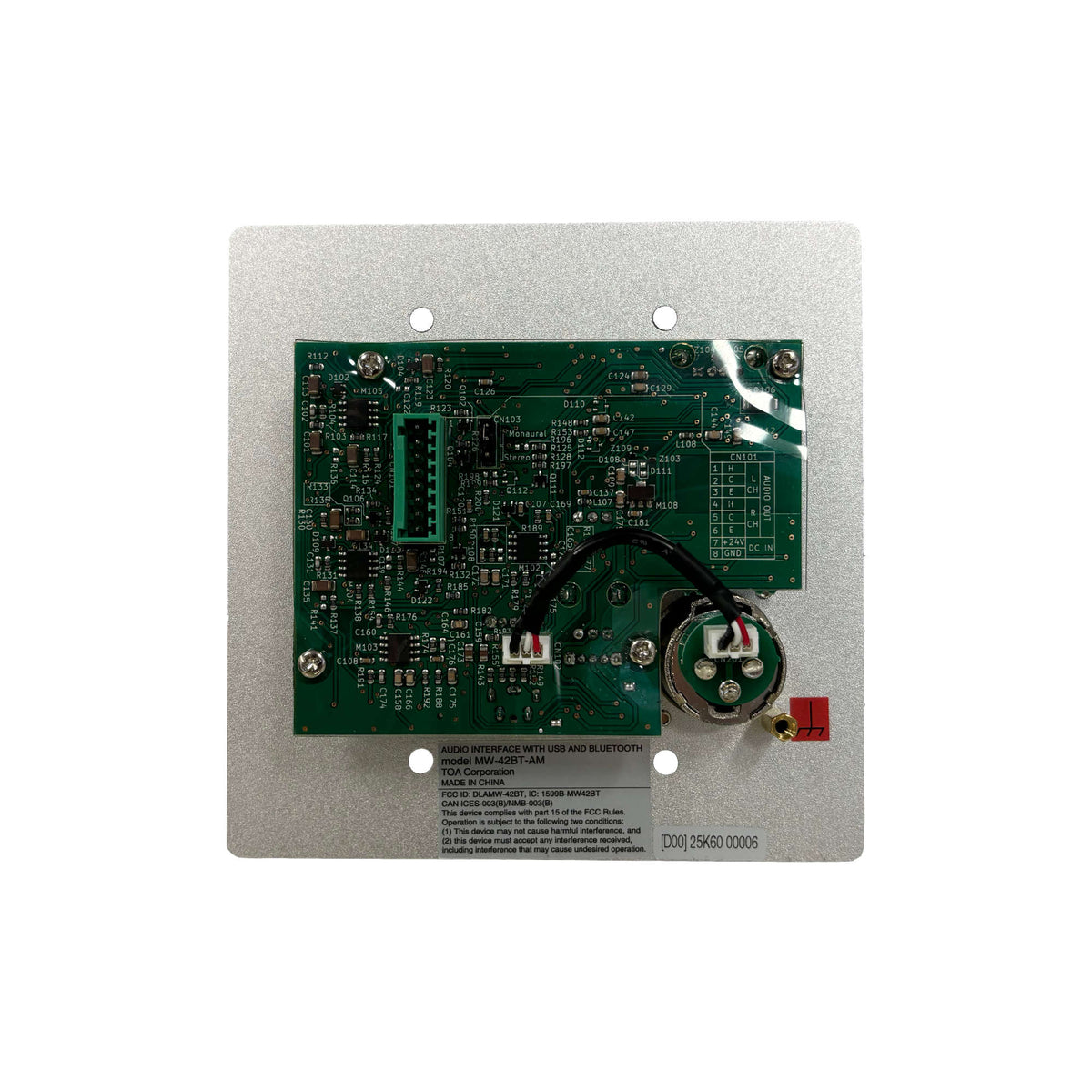

TOA MW-42BT Audio Interface with USB and Bluetooth®
Equipped with Bluetooth®, USB, auxiliary input, and a line/microphone input. The in-wall design and timeless appearance make the MW-42BT easily integrate with any environment and save space.
| Power Source | 100-240V AC 50/60Hz |
| Current Consumption | 3W |
| Attenuation |
LINE/MIC input: -10 dBV, 10 kΩ/-60 dBV, 600Ω, electronic balanced, female XLR Connector
AUX input: -10 dBV, 10 kΩ, unbalanced, stereo 3.5 mm(1/8") mini jack
USB input: Audio formats: MP3, WAV — Format: FAT16, FAT32, Max. 32GB
Bluetooth® input: Ver 5.4, Max 10m
|
| Control | Stereo/Monaural output, 0 dBV, 10 kΩ, electronic balanced, removable terminal block |
| Indicator | Power (Blue) x1, LINE/MIC (Blue) x1, AUX (Blue) x1, USB (Blue) x1, Bluetooth® (Blue) x1 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Panel: Aluminum, Sandblasting, Silver Decorative Sheet: Acrylic, Black |
| Dimensions | 120 (W) x 120 (H) x 40.2 (D) mm (4.72” x 4.72” x 1.58”) |
| Weight | 0.2 kg (0.44lbs) |

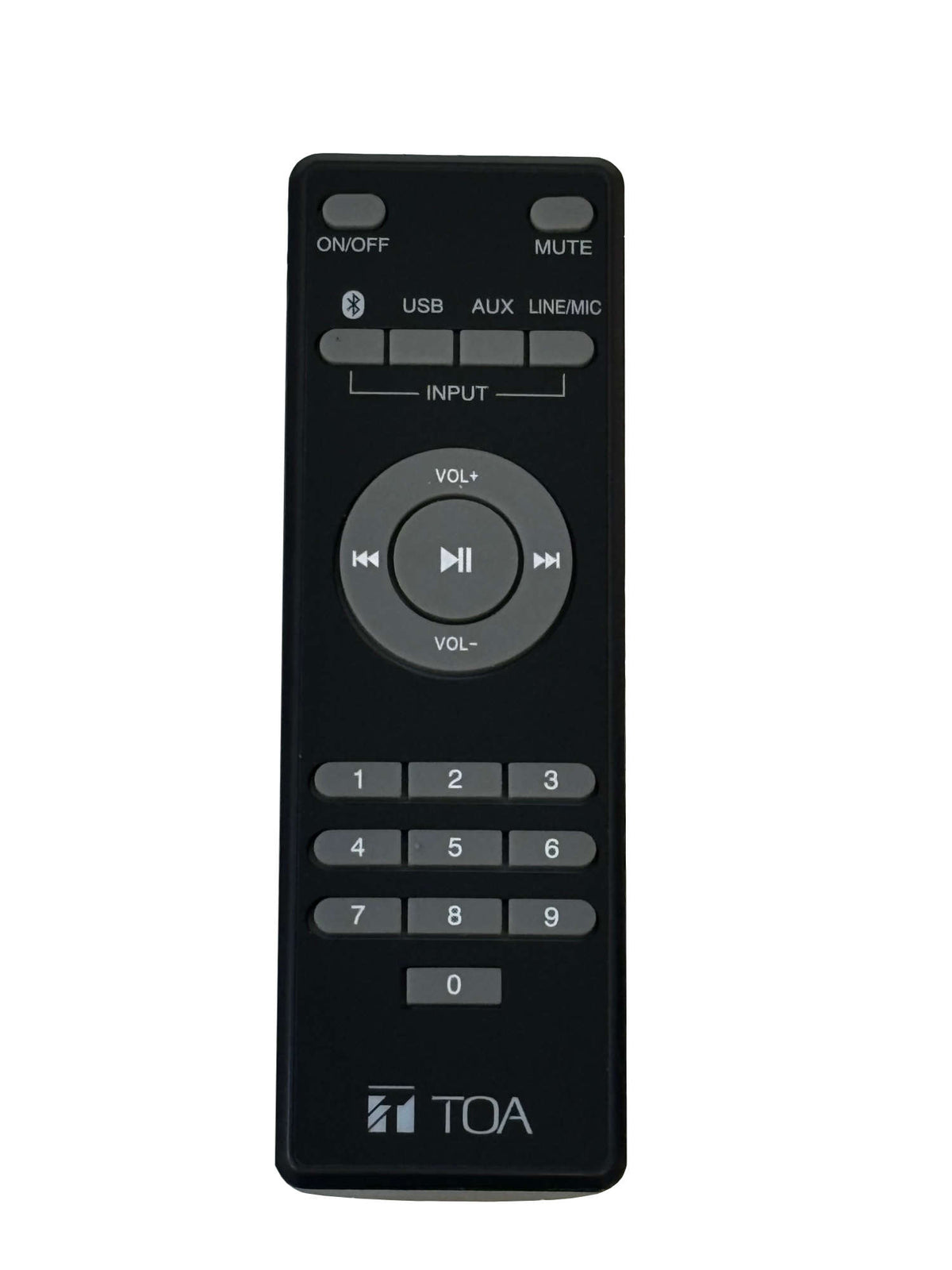

| Included Accessories | AC Power adapter x1, Remote control x1, Box mounting screw (6-32UNC) x4, Grounding screw x1, Flat gasket x2, Fixed gasket x1, Removable terminal plug (8 pins) x1 |
