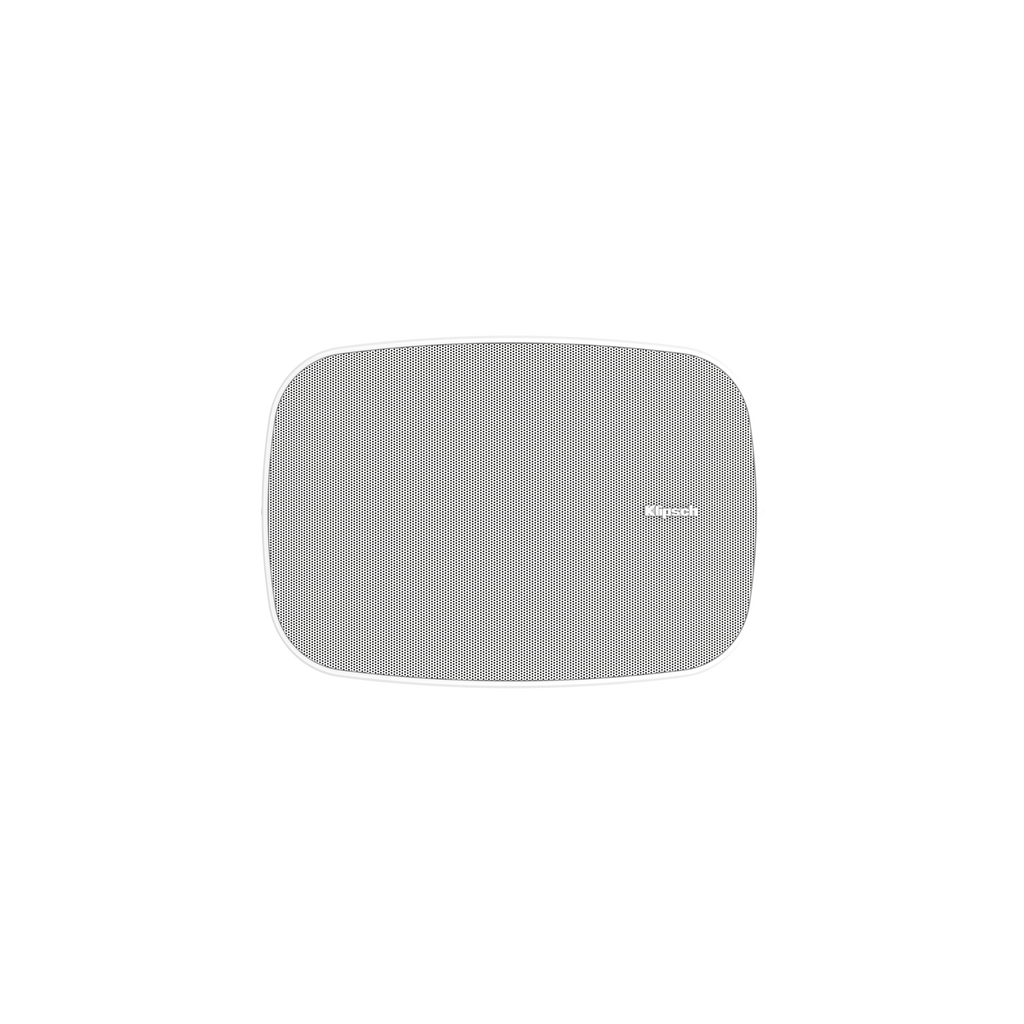

Klipsch RSM-400 White, Pair
Product Details
The Klipsch RSM-400 is the compact model in the residential surface-mount range, with a 4" woofer and 3/4" titanium compression driver on a 90° x 90° modified Tractrix horn. It replaces the AW-400 and suits patios, covered walkways and smaller outdoor areas where a 6.5" or 8" box would be more speaker than the space needs.
Unlike the larger RSM models this one uses a sealed enclosure rather than a ported design. Sealed keeps the response tight and predictable when the speaker is mounted tight under an eave or in a corner, where a port would be unevenly loaded.
The all-weather ABS cabinet is paintable and IPX5 rated for sustained water exposure, not just rain. Dual 5-way binding posts accept bare wire, banana plugs, spades or pins. White finish, sold as a pair.
Features
- 4" woofer with 3/4" titanium compression driver
- 90° x 90° modified Tractrix horn
- Sealed enclosure — predictable under eaves and in corners
- 79Hz – 20kHz +/- 4dB; 85dB sensitivity
- 40 watts continuous, 160 watts peak
- IPX5 rated for sustained water exposure
- All-weather paintable ABS cabinet
- Dual 5-way binding posts
- Replaces the Klipsch AW-400
- White finish
- Sold as a pair
Specifications
| Technical | |
|---|---|
| Frequency Response | 79Hz – 20kHz +/- 4dB; 55Hz at -10dB |
| Power Handling | 40 watts (12.6V) 75Hz – 10kHz; 160 watts peak |
| Calculated Max Continuous Output | 98dB |
| Sensitivity | 85dB |
| Coverage | 90° +/- 40° 1.3kHz – 20kHz |
| Directivity Index | 7dB +/- 2dB 1kHz – 20kHz |
| Nominal Impedance | 8 ohms (4 ohms at 250Hz minimum) |
| Acoustic Crossover | 3kHz |
| Transducers | 4" woofer; 3/4" titanium compression driver on a 90x90 modified Tractrix horn |
| Enclosure Material | All Weather ABS Plastic, Paintable |
| IP Rating | IPX5 |
| Enclosure Tuning | Sealed |
| Input Connectors | Dual 5-way binding post |
| Physical | |
|---|---|

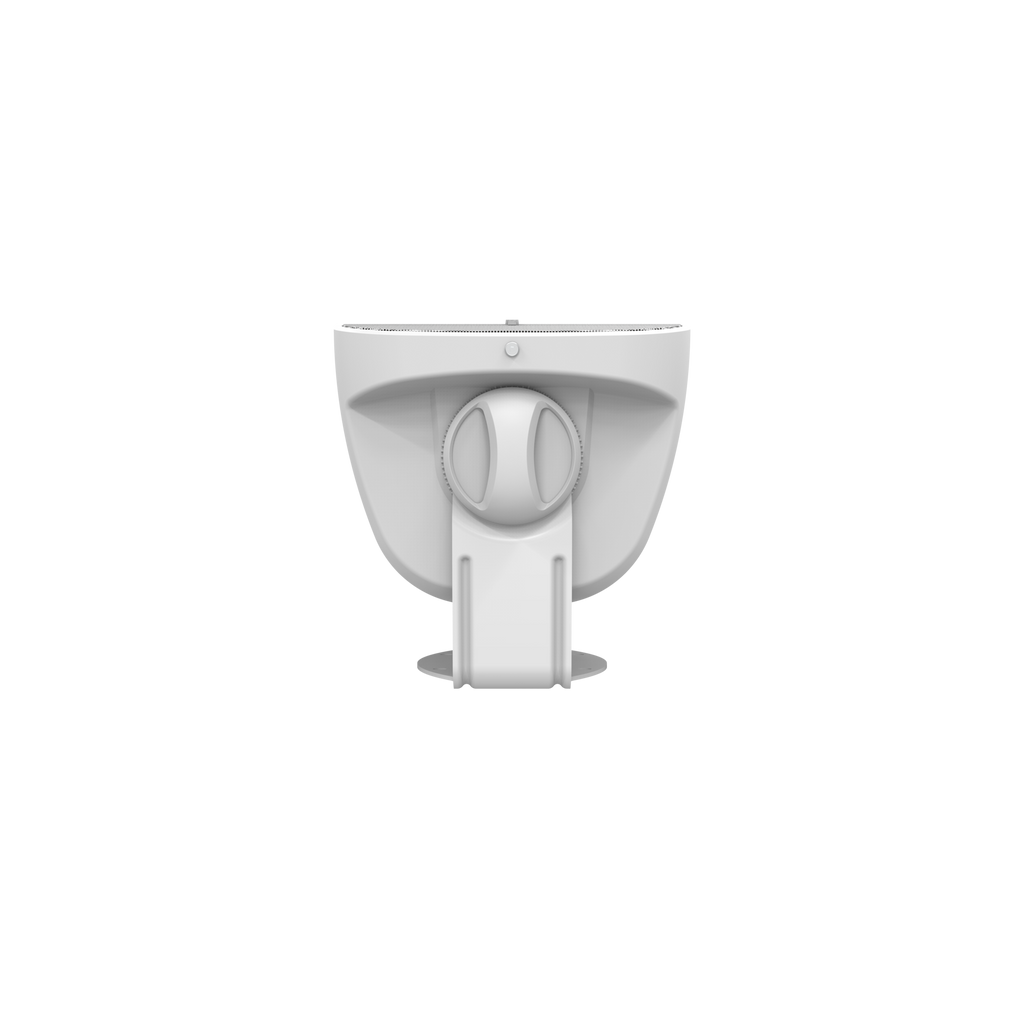

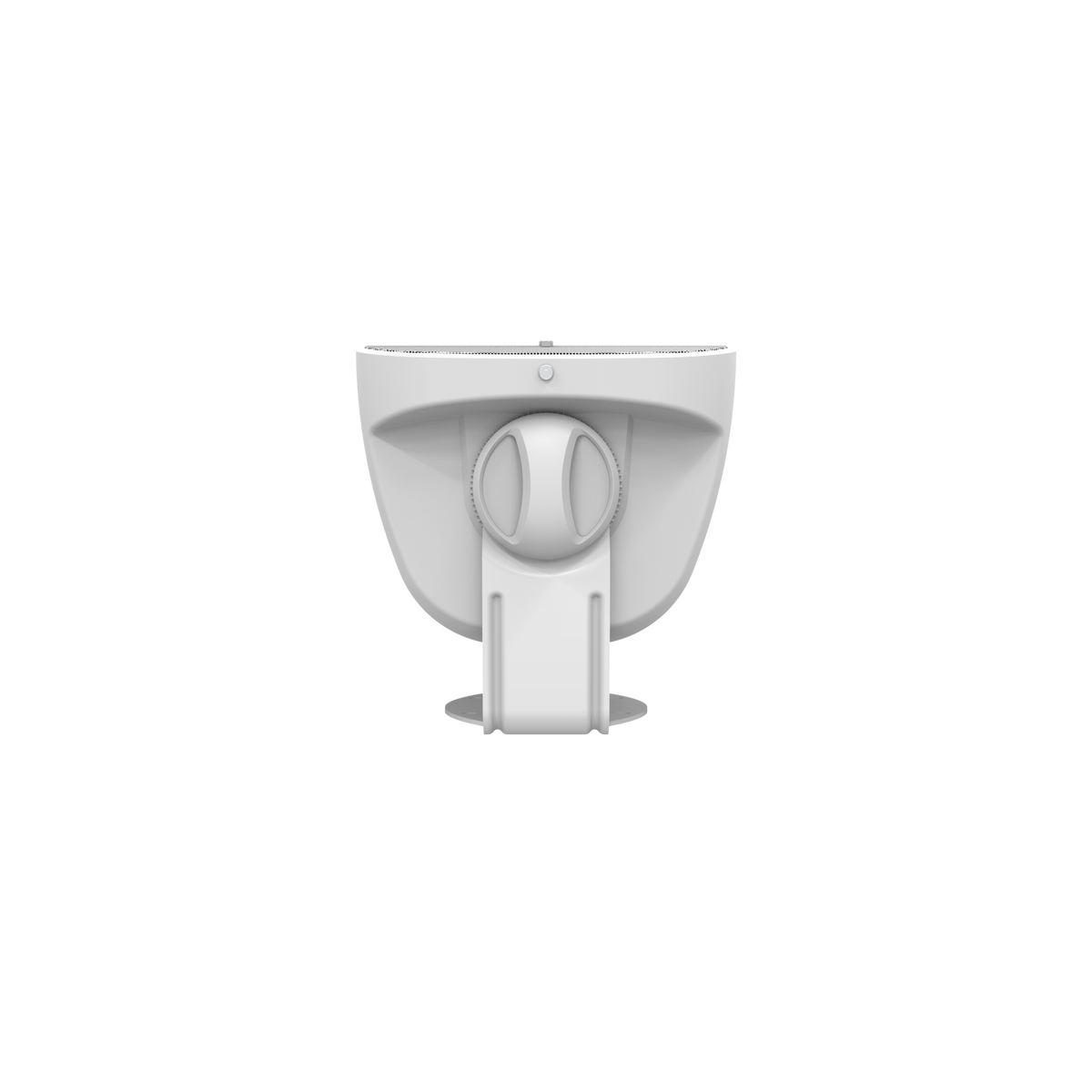

| Dimensions | 9.63" x 6.25" x 5.38" (with bracket 6.75") |
| Weight | 4.25 lbs each |
| Finish | White |
| Sold As | Pair |
Specifications subject to change.
