Description

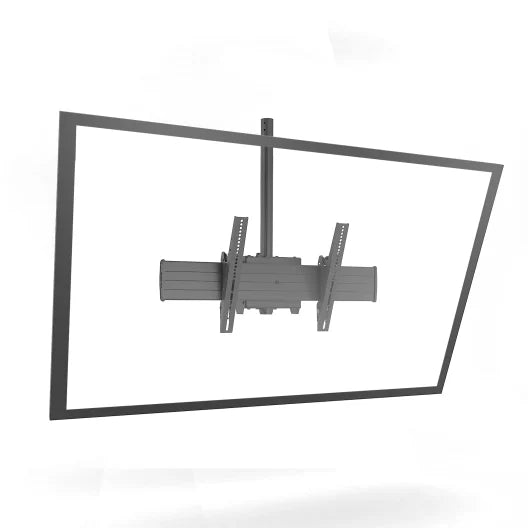

Chief XCM1U, Fusion® Extra-Large Single Pole Flat Panel Ceiling Mounts
Product Details
Chief's Fusion® Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for Extra-large flat panel screens. Great for digital signage installations.
The XCM1U is a single pole drop ceiling mount perfect for Extra-Large displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.
Features
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns Adjustable for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers
Specifications
| Category | Feature | Specification |
| Dimensions & Weight | Shipping Dimensions | 51" x 12" x 7" (129.5 x 30.5 x 17.8 cm) |
| Shipping Weight | 30.8 lbs (14 kg) | |
| Weight Capacity | 250 lbs (113.4 kg) | |
| Physical Attributes | Color | Black |
| Application | Ceiling | |
| Number of Displays | 1 | |
| Orientation | Landscape | |
| Technical Specs | VESA Mounting Pattern | 200 x 100 mm – 800 x 400 mm |
| Adjustability | Tilt | |
| Tilt Range | +5° and -20° | |
| Post-Installation Leveling | Yes | |
| Compliance & IDs | Special Features | Multi-Display |
| TAA Compliant | No | |
| Certifications | UL Listed | |
| UPC | 841872159393 |
