Description

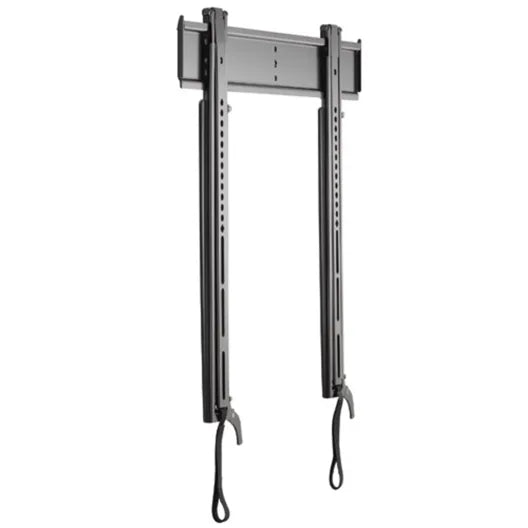

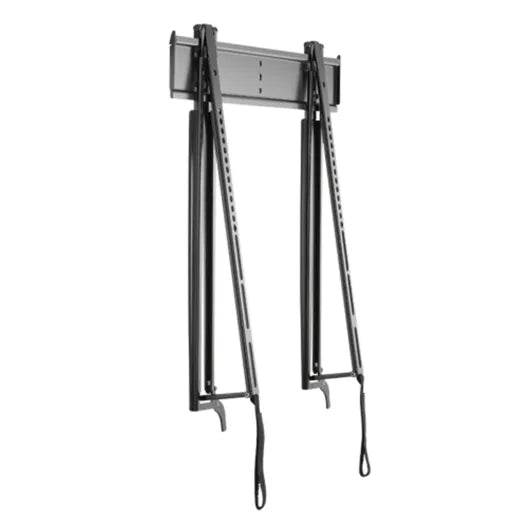

Chief MSTU Medium Thinstall™ Fixed Wall Display Mount For 32" - 65" TV
Features
- Designed specifically for and only compatible with displays less than 5 inches (127 mm) in depth.
- Ultra low-profile design compliments ultra-thin flat panel TVs
- GlideLock provides tool-less latching for faster installation
- Consists of one-piece steel bracket with two tilting interfaces
- Each interface includes a sliding flag for increased security
- Features a cable stand and bottom pullout for cable access
- Provides lateral shift for increased flexibility
- Can be installed in landscape mode only
- Lateral Shift: Depends on mounting pattern of screen
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
Specifications
| Category | Property | Value |
| Dimensions & Measurements | Minimum Depth | 0.39 in (1 cm) |
| Shipping Dimensions | 39" x 13" x 2" (990.6 x 330.2 x 50.8 mm) | |
| Shipping Weight | 9.65 lbs (4.4 kg) | |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) | |
| Weight Capacity | 125 lbs (56.7 kg) | |
| Characteristics & Features | Adjustability | Fixed |
| Application | Wall | |
| Color | Black | |
| Orientation | Landscape | |
| Solution Type | Universal | |
| TAA Compliant | No | |
| UPC | 841872117249 | |
| VESA Mounting Pattern | 100 x 100mm - 600 x 400mm | |
| Certifications & Warranties | Certifications | UL Listed |
